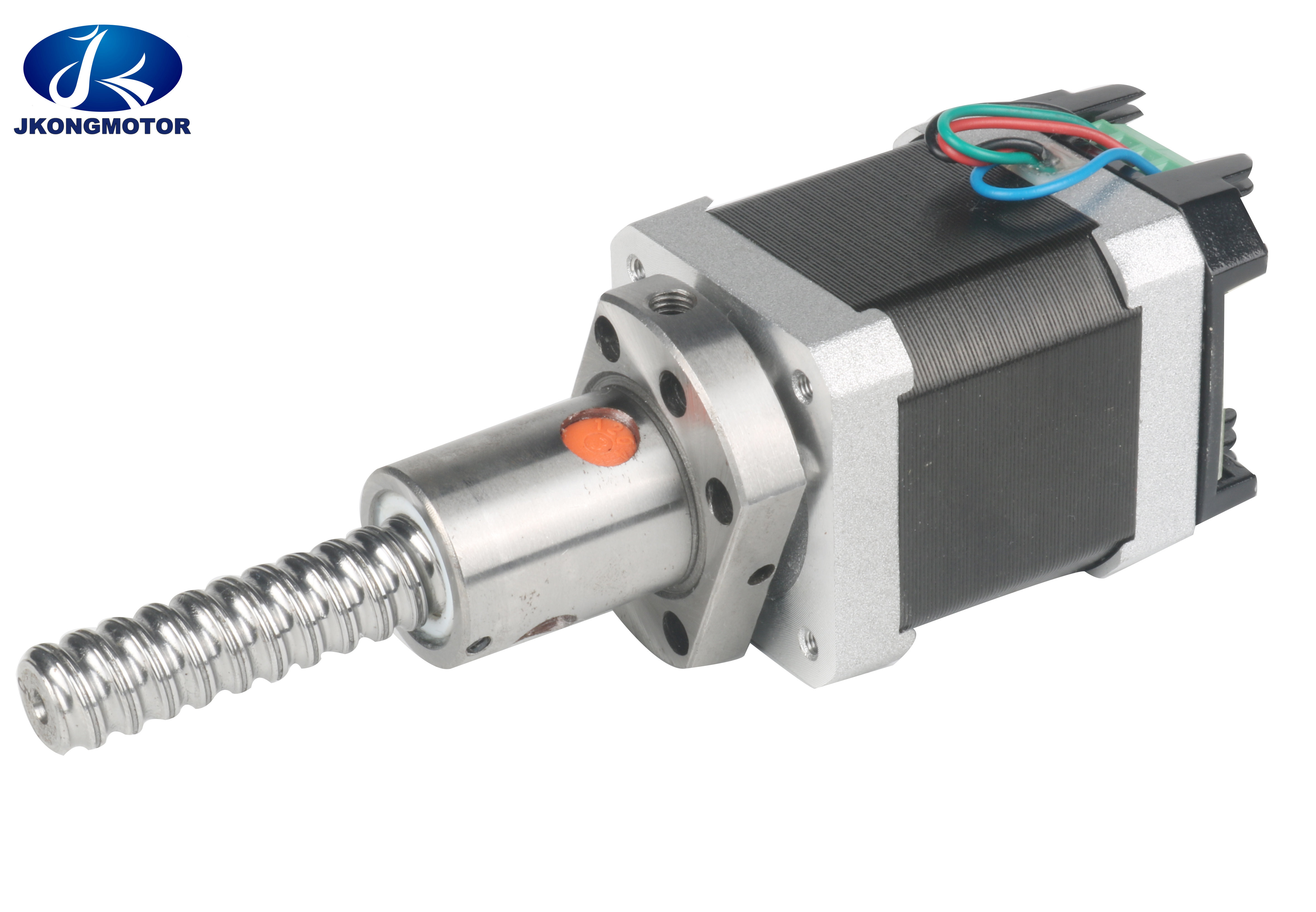

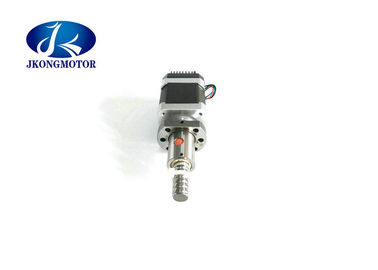

Linear Stepper Motor 1204 1210 Bipolar Stepper Motor , Linear Drive Motor With Integrated Driver

Linear Stepper Motor 1204 1210 Bipolar Stepper Motor , Linear Drive Motor With Integrated Driver

Linear Stepper Motor 1204 1210 Bipolar Stepper Motor , Linear Drive Motor With Integrated Driver
video
Linear Stepper Motor 1204 1210 Bipolar Stepper Motor , Linear Drive Motor With Integrated Driver
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS48-1684
Payment & Shipping Terms:
Minimum Order Quantity: 3PCS~5PCS
Price: US$50 ~ US$110
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Shaft: Ball Screw Leads: 4
Current: 1.68A Holding Torque: 5kg.cm
Screw: 1204 Length: 70mm
High Light:

linear actuator motor

,

linear electric motor



Ball Screw 1204 1210 Bipolar Stepper Motor With Integrated Driver


Genaral Specification of linear stepper motor:



 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  500VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  28N (20mm from the flange)
 Max. axial force  10N




Electrical Specification of linear drive motor with integrated:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS48-1684 1.8 48 1.68 1.65 2.8 5 4 260 68 0.35



Dimension:

Linear Stepper Motor 1204 1210 Bipolar Stepper Motor , Linear Drive Motor With Integrated Driver 0
