Detailed Product Description

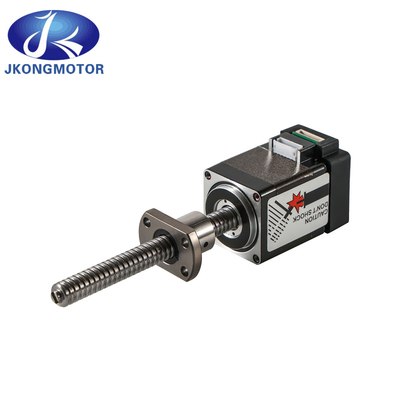

Product: Ball Screw Stepper Motor For Linear Actuation Leads: 4
Current: 1.68A Holding Torque: 5kg.cm
Screw: 1204 Length: 70mm
MOQ: 10pcs
High Light:

linear actuator motor

,

linear electric motor

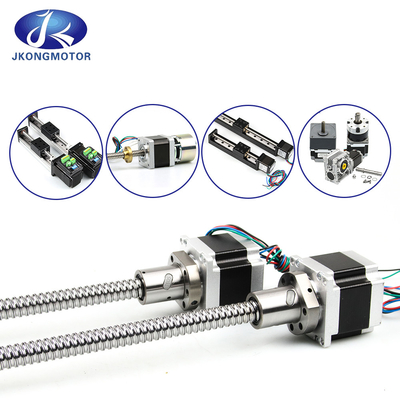

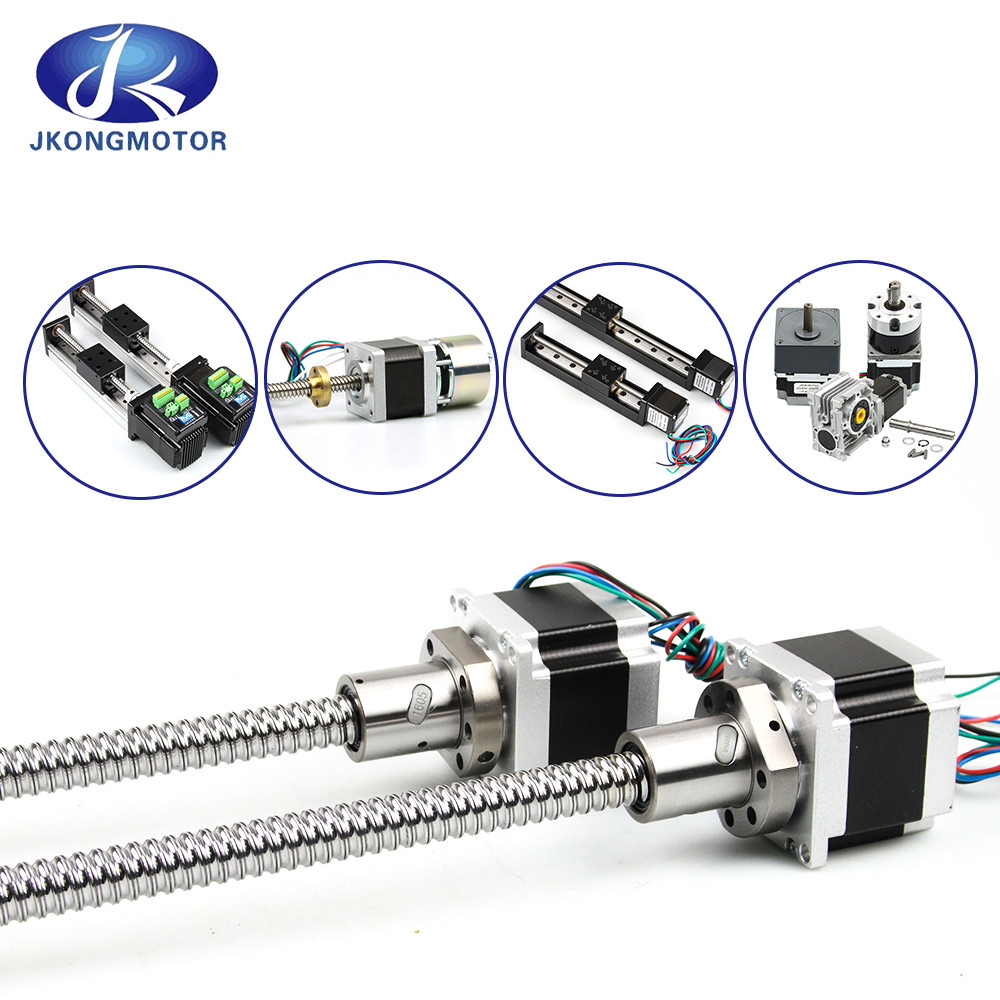

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor
Product Description:



There are four types of linear stepper motors by Jkongmotor: external drive linear stepper motors (including T-type lead screw and ball screw), Captive linear stepper motors and Non-Captive linear stepper motor, and the connector, gearbox, encoder, brake orintegrated driver are optional.



An actuator is a simple device that can not complete a task without being told to do so, and a servo actuator is 'smart' in that it can accept an input signal and go to that position on it's own. It's actually fairly simple, but this distinction can cause some.



While 12VDC linear actuators are ideal and more common with moving lighter loads in home, office, and industrial automations, 24 volt electric actuators are often manufactured with a higher force rating or faster speed while drawing less current.



Due to simple magnetic properties and no mechanical conversion, a linear motor offers precise and fast linear force. Stepper motors, on the other hand, have quite complex functionality due to the involvement of mechanical conversion and, most importantly, the introduction of multiple steps in the process.



Features:

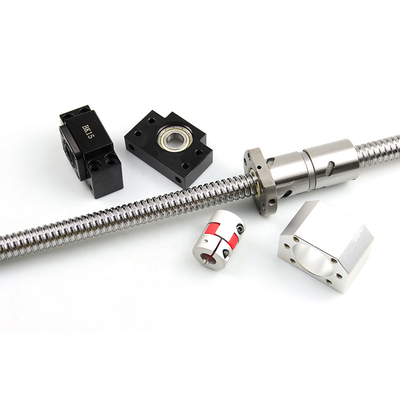

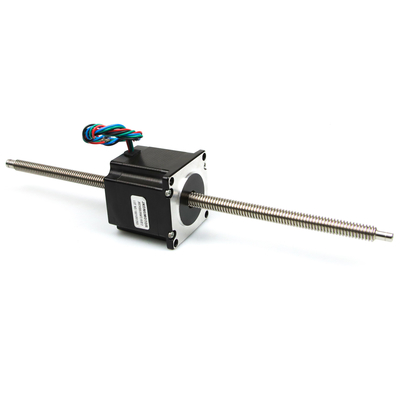

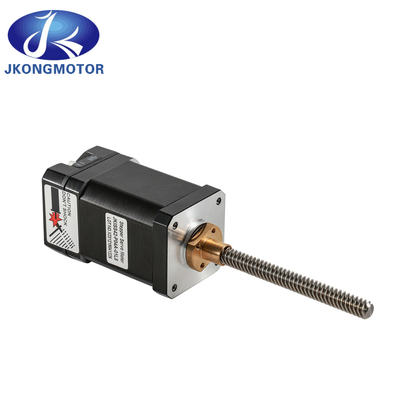

Product Name: Jkongmotor Linear Stepper Motor with Lead Screw

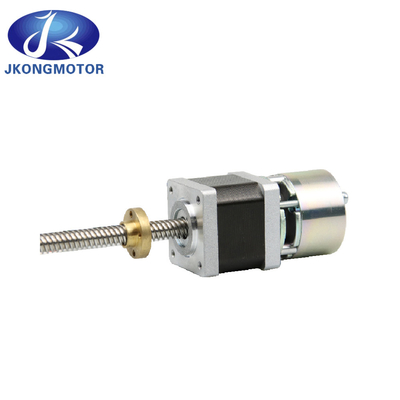

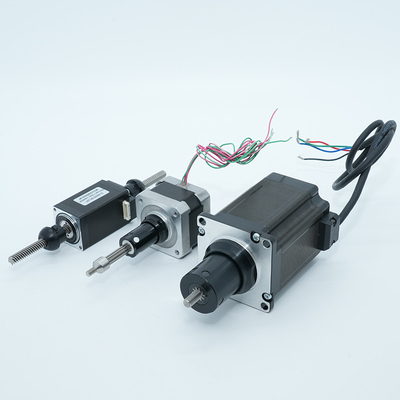

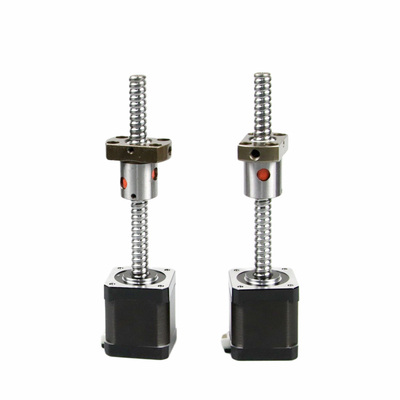

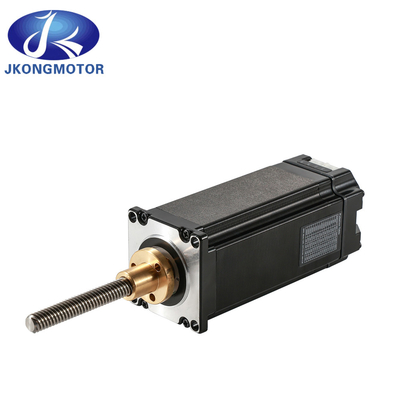

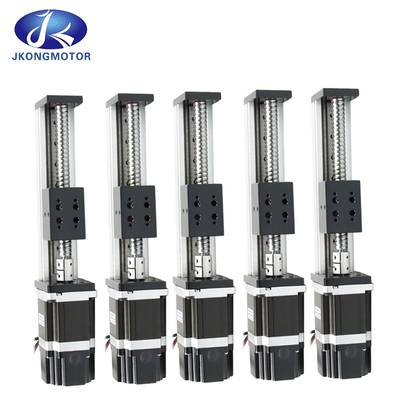

Type: Ball Screw Stepper Motor / External Linear Stepper Motor / Non-captive linear stepper motor / captive linear stepper motor

Size: Nema 8 / 11 / 14 / 16 / 17 / 23 / 24 / 34 stepping motor

Leads No.: 4leads

Product Type: 2 Phase Hybrid Stepping Motor

Customized Parts: Connector, Gearbox, Encoder, Brake, Integrated driver...


Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.



Nema 8 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Mass
( °) (L)mm A Ω mH g.cm No. kg
JK20HS30-0604 1.8 30 0.6 18 3.2 180 4 0.06
JK20HS33-0604 1.8 33 0.6 6.5 1.7 200 4 0.07
JK20HS38-0604 1.8 38 0.6 10 5.5 300 4 0.08
JK20HS42-0804 1.8 42 0.8 5.4 1.5 400 4 0.09



nema 8 linear actuatornema 8 non captive electricalnema 8 captive linear

nema 8 captive linear motor



Nema 11 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Rotor Inertia Mass
( °) (L)mm A Ω mH g.cm No. g.cm2 Kg
JK28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
JK28HS32-0956 1.8 32 0.95 2.8 0.8 430 6 9 0.11
JK28HS45-0956 1.8 45 0.95 3.4 1.2 750 6 12 0.14
JK28HS45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
JK28HS51-0956 1.8 51 0.95 4.6 1.8 900 6 18 0.2
JK28HS51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2

nema 11 linear equation	1	nema 11 linear e	google 26	✖	nema 11 linear encodernema 11 linear guide motornema 11 ball screw stepper motor

nema 11 non captive stepper motor





Nema 14 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH g.cm No. g.cm g.cm2 Kg
JK35HS28-0504 1.8 28 0.5 20 14 1000 4 80 11 0.13
JK35HS34-1004 1.8 34 1 2.7 4.3 1400 4 100 13 0.17
JK35HS42-1004 1.8 42 1 3.8 3.5 2000 4 125 23 0.22

nema 14 linear motorsnon captive motor nema 14linear motors manufacture

nema 14 hybrid linear

Nema 17 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm2 Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS28-0504 1.8 28 0.5 20 21 1.5 4 85 24 0.22
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5



nema 17 linearball screw stepper motor nema 17linear actuators

nema 17 actuators

Nema 23 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK57HS41-1006 1.8 41 1 7.1 8 0.48 6 250 150 0.47
JK57HS41-2008 1.8 41 2 1.4 1.4 0.39 8 250 150 0.47
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-1006 1.8 51 1 6.6 8.2 0.72 6 300 230 0.59
JK57HS51-2008 1.8 51 2 1.8 2.7 0.9 8 300 230 0.59
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2006 1.8 56 2 1.8 2.5 0.9 6 350 280 0.68
JK57HS56-2108 1.8 56 2.1 1.8 2.5 1 8 350 280 0.68
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS76-3006 1.8 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-3008 1.8 76 3 1 1.8 1.5 8 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS82-4008 1.8 82 4 0.8 1.8 2 8 1000 600 1.2
JK57HS82-4204 1.8 82 4.2 0.7 2.5 2.2 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4

nema 23 linear motornema 23 linear guide motornema 23 ball screw motor

ball screw stepper motor nema 23

Nema 24 Stepper Motor Parameters:

Model No. Wiring Diagram Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
(L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK60HS56-2008 Unipolar 56 2 1.8 3 1.17 8 700 300 0.77
Parallel 2.8 0.9 3.6 1.65
Tandem 1.4 3.6 14.4 1.65
JK60HS67-2008 Unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
Parallel 2.8 1.2 4.6 2.1
Tandem 1.4 4.8 18.4 2.1
JK60HS88-2008 Unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
Parallel 2.8 1.5 6.8 3.1
Tandem 1.4 6 27.2 3.1
JK60HS100-2008 Unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
Parallel 2.8 1.6 6.4 4
Tandem 1.4 6.4 25.6 4
JK60HS111-2008 Unipolar 111 2 4.4 8.3 3.2 8 1200 1120 1.9
Parallel 2.8 2.2 8.3 4.5
Tandem 1.4 8.8 33.2 4.5

nema 23 linear motornema 23 linear guide motornema 23 ball screw motor

Nema 34 Stepper Motor Parameters:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm2 Kg
JK86HS68-5904 1.8 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 1.8 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 1.8 97 4.5 0.66 3 5.8 4 1.7 2100 3
JK86HS97-4008 1.8 97 4 0.98 4.1 4.7 8 1.7 2100 3
JK86HS100-6004 1.8 100 6 0.36 2.8 7 4 1.9 2200 3.1
JK86HS115-6004 1.8 115 6 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6 8.7 8 2.4 2700 3.8
JK86HS126-6004 1.8 126 6 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 1.8 155 6 0.68 9 13 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8 12.2 8 3.6 4000 5.4

nema 23 linear motornema 23 linear guide motornema 23 ball screw motor

nema 34 linear stepper motor



Nema 42 Stepper Motor Parameters:

Model Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. kg.cm g.cm2 Kg
JK110HS99-5504 1.8 99 5.5 0.9 12 11.2 4 3 5500 5
JK110HS115-6004 1.8 115 6 0.48 7 12 4 4 7100 6
JK110HS150-6504 1.8 150 6.5 0.8 15 21 4 5.9 10900 8.4
JK110HS165-6004 1.8 165 6 0.9 14 24 4 6.6 12800 9.1
JK110HS201-8004 1.8 201 8 0.67 12 28 4 7.5 16200 11.8



Nema 52 Stepper Motor Parameters:

Model No. Operating Voltage Rated Current Resistance Inductance Holding Torque Noload Frequency Starting Frequency Mass Motor Length
VDC A Ω mH N.m No. g.cm Kg mm
JK130HS173-6004 80~325 6 0.75 12.6 25 25000 2300 13.3 173
JK130HS229-6004 80~325 6 0.83 13.2 30 25000 2300 18 229
JK130HS257-7004 80~325 7 0.73 11.7 40 23000 2200 19 257
JK130HS285-7004 80~325 7 0.66 10 50 23000 2200 22.5 285





stepper motor customized:

6 leads servo actuator motor

Professional dc motor manufacture in China

Company Profile:

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor 29

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor 30

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.



Equipments Show:

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor 31

Production Flow:

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor 32

Package:

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor 33

Certification:

Jkongmotor Linear stepper motor Nema 11 17 23 34 Linear Electric Motor With Durable Ball Screw Shaft small linear motor 34
