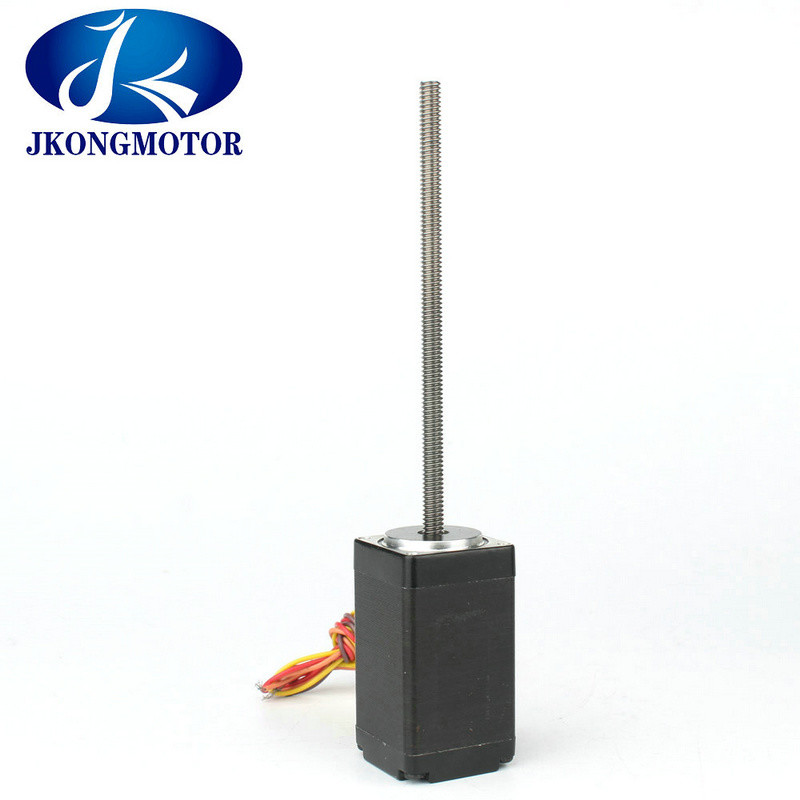

JK0220 Micro Linear Stepper Motor Nema 11 1200g.Cm linear electric motor

JK0220 Micro Linear Stepper Motor Nema 11 1200g.Cm linear electric motor

JK0220 Micro Linear Stepper Motor Nema 11 1200g.Cm  linear electric motor
video
JK0220 Micro Linear Stepper Motor Nema 11 1200g.Cm  linear electric motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK28HS51-0674
Payment & Shipping Terms:
Minimum Order Quantity: 3 - 5 Sets
Price: US $30 - 45 / Set
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2 Type: Hybrid
Holding Torque: 1200g.cm Current / Phase: 0.67A
Product Name: Linear Stepping Motor Step Angle: 1.8 Degree
Insulation Class: B Weight: 0.4Kg
High Light:

linear drive motor

,

linear electric motor



China Micro Linear Stepper Motor Nema 11 1200g.cm & Driver JK0220





General Specification of Mini stepper motor:



Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

28N (20mm from the flange)

Max. axial force

10N





Electrical Specification of nema 11 linear stepper motor:



Model No.

Step Angle

 Motor Length

Current

/Phase

 Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Rotor Inertia

Motor

Weight



( °)

(L)mm

A

Ω

mH

g.cm

No.

g.cm^2

Kg

JK28HS45-0674

1.8

45

0.67

6.8

4.9

950

4

12

0.14

JK28HS51-0674

1.8

51

0.67

9.2

7.2

1200

4

18

0.2

JK28HS51-1004

1.8

51

1.0

2.3

1.8

900

4

18

0.2





Screw rod Specification of lead screw:



Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Screw Diameter(mm)

Screw Lead(mm)

Screw Pitch(mm)

Travel per step(mm)

Tr3.5

1

1

0.005

Tr6

2

1

0.01



0.6096

0.6096

0.003



4

1

0.02



2.4384

1.2192

0.0122



6

1

0.03

Tr5

1

1

0.005



12

2

0.06



2

1

0.01











Note:products of special request can be made according to the customer request.
