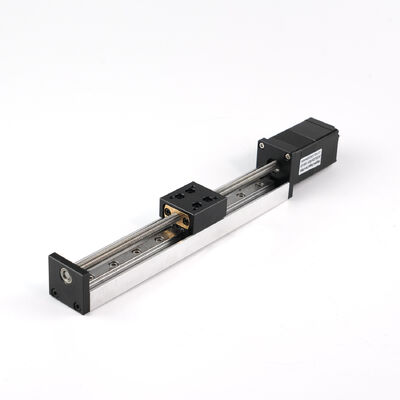

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw

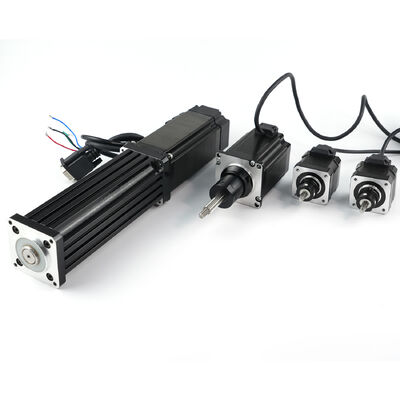

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw
video
Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS, REACH, ISO14001, SO9001
Model Number: Linear Stepper Motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US$50 ~ US$110
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Motor Type: Stepper Motor With Lead Screw Leads: 4
Phase: 2phase Screw Type: T-type, Ball Screw, Non Captive, Captive
Screw: Customized Other Parts: Gearbox, Encoder, Brake, Integrated Driver
MOQ: 10pcs
Highlight:

linear actuator motor

,

linear electric motor

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw

Jkongmotor specializes in OEM and ODM customized 2-phase hybrid bipolar linear stepper motors with integrated lead screws, providing precise, reliable, and maintenance-friendly linear motion solutions. Available in NEMA 8, 11, 14, 17, 23, 24, and 34 frame sizes, our linear stepper motors are engineered to meet diverse automation and motion control requirements.

Product Overview

Jkongmotor linear stepper motors combine a high-performance hybrid stepper motor with a precision lead screw, converting rotary motion directly into accurate linear displacement. This integrated design eliminates external couplings, reduces mechanical complexity, and improves positioning accuracy.

Key Features

  • 2-Phase Hybrid Bipolar Design for stable torque and smooth motion

  • Integrated Lead Screw for direct linear output (T-screw, trapezoidal, or custom)

  • Multiple NEMA Sizes: NEMA 8 / 11 / 14 / 17 / 23 / 24 / 34

  • High Positioning Accuracy with excellent repeatability

  • Compact Structure saving installation space

  • Low Noise, Low Vibration optimized for precision equipment

  • Support for Open-Loop or Closed-Loop Systems

Customization Options (OEM & ODM)

  • Lead screw diameter, pitch, and stroke length

  • Captive, non-captive, or external linear configurations

  • Customized thrust force, speed, and resolution

  • Shaft end, mounting dimensions, and special coatings

  • Optional encoder, brake, or integrated driver

  • Voltage, current, insulation class, and connector types

  • Dust-proof, corrosion-resistant, or high-temperature designs

Performance Advantages

  • High Thrust Output: Optimized electromagnetic design for strong linear force

  • Smooth & Stable Motion: Suitable for micro-stepping control

  • Long Service Life: Precision machining and strict quality control

  • Easy Integration: Direct replacement for traditional linear actuators

Typical Applications

  • Medical and laboratory equipment

  • Semiconductor and electronics assembly

  • 3D printers and additive manufacturing

  • Packaging and labeling machines

  • Optical, measuring, and inspection devices

  • Smart automation and robotics

Jkongmotor OEM & ODM Capability

From prototype development to mass production, Jkongmotor offers full OEM and ODM customized linear stepper motor solutions. Our engineering team supports motor design, lead screw matching, performance testing, and reliability verification to ensure each product fits your exact application needs.





Nema 8 Stepper Motors:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Mass
( °) (L)mm A Ω mH g.cm No. kg
JK20HS30-0604 1.8 30 0.6 18 3.2 180 4 0.06
JK20HS33-0604 1.8 33 0.6 6.5 1.7 200 4 0.07
JK20HS38-0604 1.8 38 0.6 10 5.5 300 4 0.08
JK20HS42-0804 1.8 42 0.8 5.4 1.5 400 4 0.09


Nema 11 Stepper Motors:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Rotor Inertia Mass
( °) (L)mm A Ω mH g.cm No. g.cm2 Kg
JK28HS32-0674 1.8 32 0.67 5.6 3.4 600 4 9 0.11
JK28HS32-0956 1.8 32 0.95 2.8 0.8 430 6 9 0.11
JK28HS45-0956 1.8 45 0.95 3.4 1.2 750 6 12 0.14
JK28HS45-0674 1.8 45 0.67 6.8 4.9 950 4 12 0.14
JK28HS51-0956 1.8 51 0.95 4.6 1.8 900 6 18 0.2
JK28HS51-0674 1.8 51 0.67 9.2 7.2 1200 4 18 0.2




Nema 14 Stepper Motors:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH g.cm No. g.cm g.cm2 Kg
JK35HS28-0504 1.8 28 0.5 20 14 1000 4 80 11 0.13
JK35HS34-1004 1.8 34 1 2.7 4.3 1400 4 100 13 0.17
JK35HS42-1004 1.8 42 1 3.8 3.5 2000 4 125 23 0.22



Nema 17 Stepper Motors:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm2 Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS28-0504 1.8 28 0.5 20 21 1.5 4 85 24 0.22
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS34-0406 1.8 34 0.4 24 15 1.6 6 120 34 0.22
JK42HS34-0956 1.8 34 0.95 4.2 2.5 1.6 6 120 34 0.22
JK42HS40-0406 1.8 40 0.4 30 30 2.6 6 150 54 0.28
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS40-1206 1.8 40 1.2 3 2.7 2.9 6 150 54 0.28
JK42HS48-0406 1.8 48 0.4 30 25 3.1 6 260 68 0.35
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS48-1206 1.8 48 1.2 3.3 2.8 3.17 6 260 68 0.35
JK42HS60-0406 1.8 60 0.4 30 39 6.5 6 280 102 0.5
JK42HS60-1704 1.8 60 1.7 3 6.2 7.3 4 280 102 0.5
JK42HS60-1206 1.8 60 1.2 6 7 5.6 6 280 102 0.5



Nema 23 Stepper Motors:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK57HS41-1006 1.8 41 1 7.1 8 0.48 6 250 150 0.47
JK57HS41-2008 1.8 41 2 1.4 1.4 0.39 8 250 150 0.47
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-1006 1.8 51 1 6.6 8.2 0.72 6 300 230 0.59
JK57HS51-2008 1.8 51 2 1.8 2.7 0.9 8 300 230 0.59
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2006 1.8 56 2 1.8 2.5 0.9 6 350 280 0.68
JK57HS56-2108 1.8 56 2.1 1.8 2.5 1 8 350 280 0.68
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS76-3006 1.8 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-3008 1.8 76 3 1 1.8 1.5 8 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS82-4008 1.8 82 4 0.8 1.8 2 8 1000 600 1.2
JK57HS82-4204 1.8 82 4.2 0.7 2.5 2.2 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4





Nema 24 Stepper Motors:

Model No. Wiring Diagram Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
(L)mm A Ω mH N.m No. g.cm g.cm2 Kg
JK60HS56-2008 Unipolar 56 2 1.8 3 1.17 8 700 300 0.77
Parallel 2.8 0.9 3.6 1.65
Tandem 1.4 3.6 14.4 1.65
JK60HS67-2008 Unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
Parallel 2.8 1.2 4.6 2.1
Tandem 1.4 4.8 18.4 2.1
JK60HS88-2008 Unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
Parallel 2.8 1.5 6.8 3.1
Tandem 1.4 6 27.2 3.1
JK60HS100-2008 Unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
Parallel 2.8 1.6 6.4 4
Tandem 1.4 6.4 25.6 4
JK60HS111-2008 Unipolar 111 2 4.4 8.3 3.2 8 1200 1120 1.9
Parallel 2.8 2.2 8.3 4.5
Tandem 1.4 8.8 33.2 4.5





Nema 34 Stepper Motors:

Model No. Step Angle Motor Length Current Resistance Inductance Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH N.m No. Kg.cm g.cm2 Kg
JK86HS68-5904 1.8 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 1.8 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 1.8 97 4.5 0.66 3 5.8 4 1.7 2100 3
JK86HS97-4008 1.8 97 4 0.98 4.1 4.7 8 1.7 2100 3
JK86HS100-6004 1.8 100 6 0.36 2.8 7 4 1.9 2200 3.1
JK86HS115-6004 1.8 115 6 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6 8.7 8 2.4 2700 3.8
JK86HS126-6004 1.8 126 6 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 1.8 155 6 0.68 9 13 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8 12.2 8 3.6 4000 5.4






Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 0



Company Profile:

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 1

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 2

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.


Equipments Show:

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 3

Production Flow:

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 4

Package:

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 5

Certification:

Jkongmotor OEM ODM Customized 2 Phase Hybrid Bipolar Nema 8 11 14 17 23 24 34 Linear Stepper Motor with Lead Screw 6











Jkongmotor linear stepper motors with lead screw deliver precision, stability, and customization—your reliable partner for advanced linear motion control.
