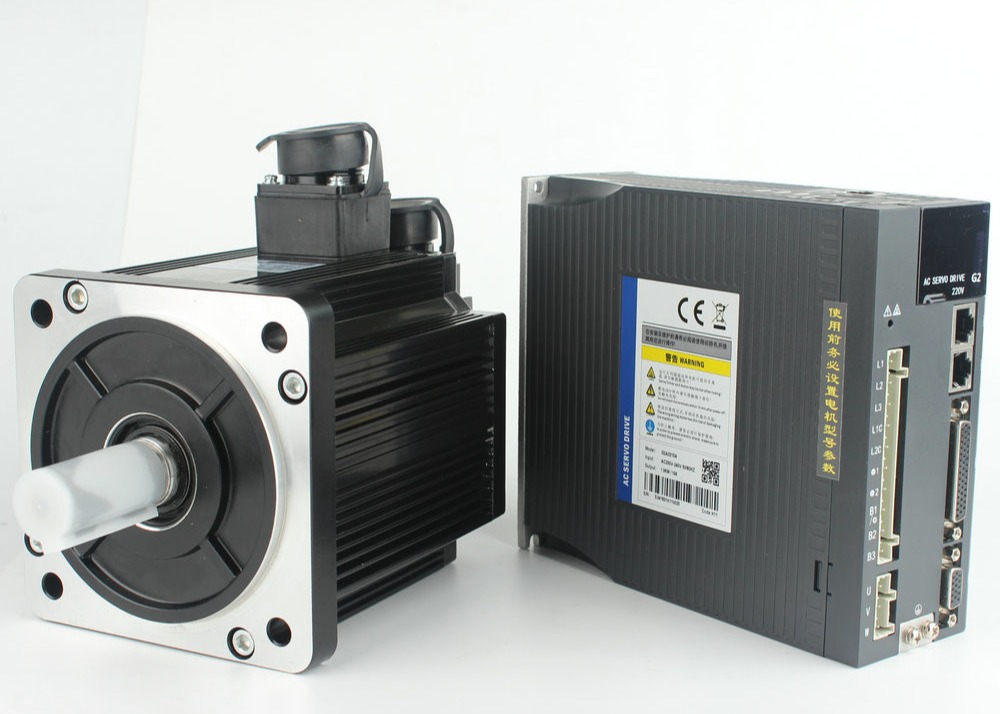

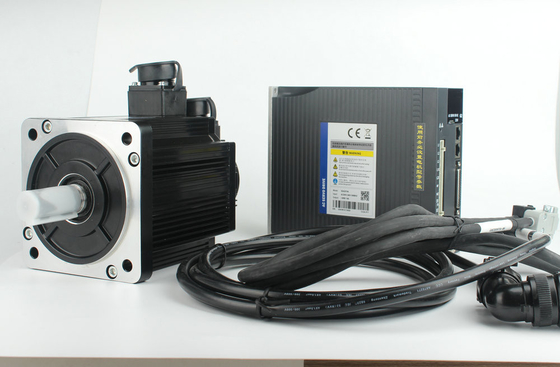

Name: 80MM 2.39N.M 750W 3 Phase Ac Servo Motor With Driver For CNC System
Brand: Jkongmotor
SKU: 80ST-M02430
Price: 188 USD
Availability: InStock
Rating: 4.7 (161 reviews)

Home Products AC Servo Motor

80MM 2.39N.M 750W 3 Phase Ac Servo Motor With Driver For CNC System

Product Details:

Place of Origin:	CHINA
Brand Name:	Jkongmotor
Certification:	CE, ROHS, ISO
Model Number:	80ST-M02430

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	USD188-211/SET
Packaging Details:	carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS/month

Contact Now

Detailed Product Description

Rated Power（KW):	0.75KW	Rated Voltage (V):	220V
Rated Current（A）:	3.0A	Rated Speed（rpm）:	3000RPM
Rated Torque（N.m）:	2.39N.M	Peak Torque（N.m）:	9N.M
Torque Coefficient（N.m/A）:	0.8	Rotar Inertia（Kg.m2）:	1.82*10-4
Line-Line Resistance(Ω):	2.88	Line-Line Inductance(mH）:	6.4
Electrical Time Constant(ms):	2.22	Weight(Kg):	2.86
Insulation Class:	Class F	Safety Class:	IP65
Working Enviroment:	Temperate: -20℃~+50℃;Humidity＜90
High Light:	CNC System Ac Servo Motor , Two Phase Ac Servo Motor 80MM , 750W 2 Phase Ac Servo Motor

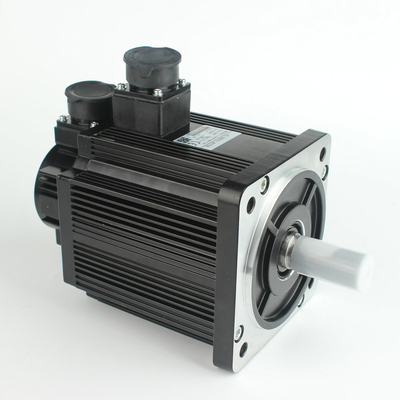

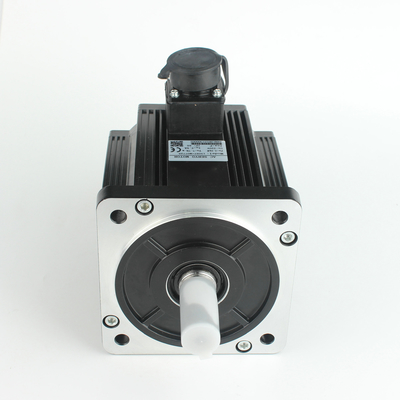

MIGE 80MM AC SERVO MOTOR

1. Specification

Model	80ST-M01330	80ST-M02430	80ST-M04025
Rated power(KW)	0.4	0.75	1.0
Rated voltage (V)	220	220	220
Rated current(A)	3	3	4.4
Rated speed(rpm)	3000	3000	2500
Rated torque(N.m)	1.27	2.39	4
Peak torque(N.m)	6	9	13.2
Voltage constant(V/Krpm)	40	48	56
Torque coefficient(N.m/A)	0.64	0.8	0.9
Rotar inertia(Kg.m2)	1.05×10-4	1.82×10-4	2.97×10-4
Line-Line Resistance(Ω)	4.44	2.88	1.83
Line-Line Inductance(mH)	7.93	6.4	4.72
Electrical time constant(ms)	1.66	2.22	2.58
Weight(Kg)	1.78	2.86	3.8
Insulation class	Class F
Safety class	IP65
Working Enviroment	Temperate: -20℃~+50℃;Humidity＜90

2. Details Parameters

Model Name	Holding Torque	Rated Speed	Rated Current	Rated Power	Driver
Model Name	N.m	Rpm	A	KW	Driver
40ST-M00130	0.16	3000	0.4	0.05	JK-G2A3204
40ST-M00330	0.32	3000	0.6	0.1	JK-G2A3204
60ST-M00630	0.637	3000	1.5	0.2	JK-G2A3204
60ST-M01330	1.3	3000	2.8	0.4	JK-G2A3204
60ST-M01930	1.9	3000	3.5	0.6	JK-G2A3208
80ST-M01330	1.3	3000	2	0.4	JK-G2A3204
80ST-M02430	2.39	3000	3	0.75	JK-G2A3208
80ST-M03520	3.5	2000	3	0.73	JK-G2A3208
80ST-M04025	4	2500	4.4	1	JK-G2A3208
90ST-M02430	2.39	3000	3	0.75	JK-G2A3208
90ST-M03520	3.5	2000	3	0.73	JK-G2A3208
90ST-M04025	4	2500	4.4	1	JK-G2A3208
110ST-M02030	2	3000	2.5	0.6	JK-G2A3215
110ST-M04030	4	3000	5	1.2	JK-G2A3215
110ST-M05030	5	3000	6	1.5	JK-G2A3215
110ST-M06030	6	3000	6	1.8	JK-G2A3215
130ST-M04025	4	2500	4	1	JK-G2A3215
130ST-M05025	5	2500	5	1.3	JK-G2A3215
130ST-M06015	6	1500	4.3	0.95	JK-G2A3215
130ST-M06025	6	2500	6	1.5	JK-G2A3215
130ST-M07725	7.7	2500	7.5	2	JK-G2A3215
130ST-M10015	10	1500	6	1.5	JK-G2A3215
130ST-M10025	10	2500	10	2.6	JK-G2A3215
130ST-M15015	15	1500	9.5	2.3	JK-G2A3215

Features:

1) Can be widely used in mask machine, fans, pumps,compressors, transport machines, machinery and other general machinery.

2)Can also be used in petroleum,chemical,steel,mining and other harsh scenes.

3) High-inertia servo motor, high smoothness operation

4) Waterproof, dustproof and greaseproof

5) Power change from 50w to 30kw

Application:

CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.
