| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JKBLD1100 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$47~US$50 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Model No.: | JKBLD1100 | Supply Voltage: | AC80V-250V |
|---|---|---|---|
| Current: | 0A - 5A | Weight: | 600g |
| Certified: | CE ROHS | Matched Motor: | 0 - 1100w |
| Highlight: | 110BLS Brushless Dc Motor Controller,1100W Brushless Dc Motor Controller,5A Brushless DC Motor Driver |
||

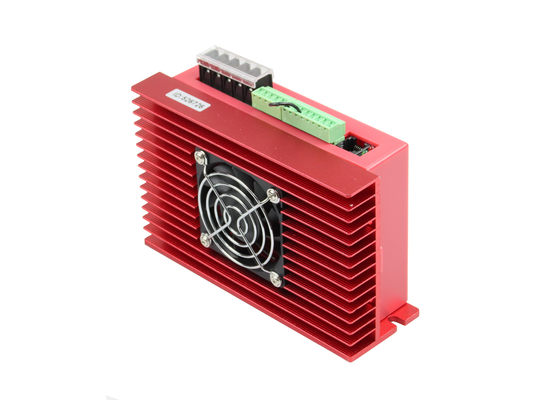

AC80V-250V 0-5A 1100W JKBLD1100 110BLS motor Brushless Dc Motor Driver/controller
| Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length |
| 42mm BLDC Motor | 8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm |
| 57mm BLDC Motor | 4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm |
| 60mm BLDC Motor | 8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm |
| 80mm BLDC Motor | 4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm |
| 86mm BLDC Motor | 8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm |
| 110mm BLDC Motor | 8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm |
| 130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm |
| Above only for representative products, products of special request can be made according to the customer request. | ||||||
Product Overview:
Main features:
It can be connected with an external speed display board JK110BLS, showing the speed, set drive parameters;
It has double speed closed current design with low speed torque and smooth operation;
It has high speed output with the maximum speed of 10000rpm / min;
The speed control mode is an external PWM speed and external potentiometer speed;
It has have EN, DIR,X1 signal control side;
It can output FG signals (optoelectronic isolation, gate output);
It can output ALM signals for the user to detect (optoelectronic isolation, gate output);
It has over-current, overvoltage, under voltage, fan control and Hall Sensor phase error, motor stalling and other protection functions;
Electrical Specification:
(1)Environmental Temperature:25℃
| Power supply |
AC80V～220V direct current (Capacity according to motor power selection) |
| The maximum input current |
Not greater than5A (according to motor and rated load) |
| The maximum power | The maximum is 1100W(over power motor is strictly prohibited) |
| Adaptable motor | Adaptable output power ≤750W motor |
| Insulation resistance | General temperature﹥500MΩ |
| Insulation strength | General temperature and pressure 0.5KV,1minitute |
(2)EnvironmentalParameter
| Cooling method | Natural air cooling & forced air cooling | |
| Environment | Condition | Avoid dust, oil mist and corrosive gases |
| Temperature | 0℃～+50℃ | |
| Humidity | ﹤80%RH,no condensation, no frost | |
| Vibration |
﹤0.5G(4.9m/s2 )10Hz-60Hz (non-continuous operation) |
|
| Reserved temperature | -20℃～+65℃ | |
| Size | 150mmX97.5mmX53mm | |
| Weight | About 0.55Kg | |
Note: Due to dramatic changes in the temperature of the storage environment, it is easy to form condensation or frost. In this case, the drive should be placed for 12 hours or more. Until the drive temperature and ambient temperature is consistent, it can be on power.
Terminal interface description:
| Function | Mark | Description |
| Indicator light | POWER | If the green power indicator is lighten, it shows that power is normal. |
| ALM | If the red status indicator is slow flash, it means waiting; Quick flash means operation; It always lights meaning faults or off-line; | |
| RS232 communication port | TTL | It can be connected with an external speed display board JK-BL01 to display speed. JK-BL01 can also set the drive parameters. Details are shown in JK-BL01 instructions |
| Control signal port | +5V1 | Control signal power+( inner power output ) |
| VSP |
External speed control signal Control way: (1)By connecting with a potentiometer to change VSP, then it can complete 0 ~ 100% speed adjustment. The range is 0-5V; (2)speed control by PWM: positive terminals connect with VSP, and negative terminals connect with GND1, inputting frequency by VSP to change duty cycle, and speed changed, the range is 100-100KHz |
|
| X1 | Input signal, brake on low level or to GND1, the red light keep off(Brake braking force can be adjusted by customer’s requirement),When X1 is connected with +5V1 or without any port , motor keeps running. | |
| FG | Motor speed pulse output is measuring the frequency of this signal. Then converts it into the actual motor speed. | |
| DIR | Rotary direction is controlled by high and low electrical level, motor forward: connected with GND1, motor reversal (anticlockwise) ;without GND1 or connected with +5V, motor forward (clockwise) | |
| EN | Connected EN with GND1, motor can work(online status);without connected or connected with +5V1,motor can not work(offline status and the red light keep working) | |
| ALM | ALM signal output. When the power is in danger, the current flow is slow. | |
| GND1 | Control signal’s power supply | |
| Hall control port | +5V2 | + motor’s Hall power |
| HU | Hall sensor signal U phase input | |
| HV | Hall sensor signal V phase input | |
| HW | Hall sensor signal W phase input | |
| GND2 | The motor’s Hall power supply | |
| The motor and power | U,V,W | The motor’s three-phase output signal |
| AC1,AC2 | The input power is AC80V～250V.(boards show AC80V-220V) |
General problems
1. How can get it started as soon as possible when you first use the drive?
After you correctly connect the power cord, the motor line, the Hall line, the external potentiometer slowly accelerates. After the motor is turned correctly, you can test the enable, direction and other functions. If you are unfamiliar with the product, the initial use should be done after the test. And then it can be installed to the actual use.
2. What will come about if power supply is reverse?
It will immediately burn the drive.
3. What is the maximum of the upper control signal voltage ?
The maximum voltage of the speed regulation signal is 5V. Exceeding this voltage will cause the drive to burn.
4. After the driver has been working for a long time, the shell is hot. Is it normal?
Yes, it is. At room temperature, after long working hours, it is up to 90 degrees. And it will not affect the performance.
5. The power indicator is light, but the motor does not turn and shift, what is the reason?
There may be a mistake in the phase line and the Hall line. Please re-energize the wiring according to the motor manual.
6. Can my motor speed transferred to 6000 with this drive?
The maximum speed of the brushless motor is determined by the parameters of the motor itself. The drive can control the motor speed from 0 to the highest speed.
7. I already have a motor and how to install this drive after wiring?
You must first determine the motor phase and the definition of the Hall line, and then you can connect it with wires. If you are not sure, you need to ask the motor manufacturers. Incorrect wiring can cause damage to the drive.
8. Can I add some features on this drive or do new product development?
Yes, please contact us.
