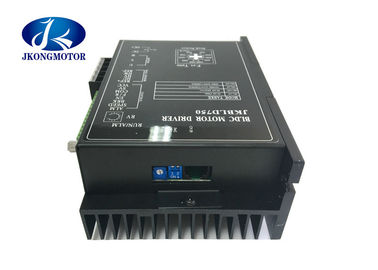

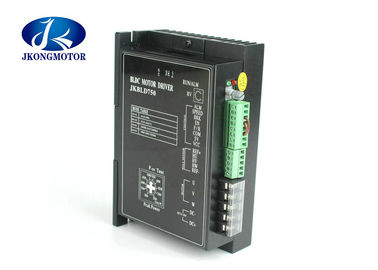

JKBLD750 Brushless DC Motor Driver 18V~50VDC 0A-45A For 0-750w BLDC Motor

JKBLD750 Brushless DC Motor Driver 18V~50VDC 0A-45A For 0-750w BLDC Motor

JKBLD750 Brushless DC Motor Driver 18V~50VDC 0A-45A For 0-750w BLDC Motor
video
JKBLD750 Brushless DC Motor Driver 18V~50VDC 0A-45A For 0-750w BLDC Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKBLD750
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: US$41.5~US$53
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model No.: JKBLD750 Supply Voltage: 18VDC - 50VDC
Current: 0A - 45A Weight: 580g
Certified: CE ROHS Matched Motor: 0 - 750w
High Light:

bldc motor driver

,

3 phase bldc motor driver



18V~50VDC 0A-45A Brushless Dc Motor Driver JKBLD750 For 0-750w Bldc Motor



Description:

The BLD750 BLDC motor drive is a high performance, cost-effective 3phase BLDC motor drive, which can provide power output Max 750VA.The design is based on advanced DSP technology and feature high torque, low noise, low vibration, PID speed loop, PID current loop, over current protection, over load protection and a combined use of manual speed adjustment and automatic speed adjustment.





Connection Definition:

 Mark  Definition
 DC+/DC-  DC Power Input (DC24V~DC48V)
 U,V,W  Motor Lead Wire
 Hu,Hv,Hw  Hall Sensor Lead Wire
 REF+  Hall Sensor Power Supply +
 REF-  Hall Sensor Power Supply -
 VCC  External Potentiometer Power Supply ( Internal Power Supply Only)
 SV  External Potentiometer ( No Connection When Adjusting Speed With  Internal Potentiometer ) or Pulse Rate In Note
 COM  Common (Low Level/Ground)
 F/R  Direction: Low Level/CCW High Level or No Connection/CW Note
 EN  Enable: High Level/Stop Low Level/Run Note
 BRK  Quick Brake: High Level/Stop Low Level/Run Note
 SPEED  Speed Signal Output
 ALARM  Alarm Signal Output



Note①: Potentiometer/10KΩ or analog signal DC 0V~+5V (Change

internal switch J1/DC0-10V).Turn off the internal potentiometer RV

when using an external potentiometer to adjust the motor speed.

Note②:High level/5V (5mA)





Electrical Specifications:



 Parameter Min Rated Max Unit
 Motor Hall Sensor Angle 120°/240°
 DC Power Input 18 48 50 V
 Drive Current Output 0 25 45 A
 Suitable Motor Speed 0   20000 rpm
 Hall Sensor Voltage 4.5 5 5.5 V
 Hall Sensor Current   20   mA
 External Potentiometer   10K   Ω



Peak Power Output Setting:

JKBLD750 Brushless DC Motor Driver 18V~50VDC 0A-45A For 0-750w BLDC Motor 0

Note: To protect the motor, set the arrow number as the same as the motor nominated power. Whenever overload occurs the drive will turn out to be the protection mode.
