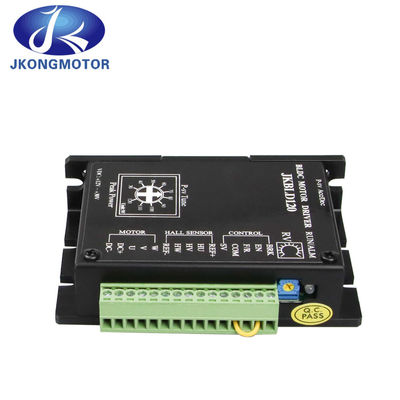

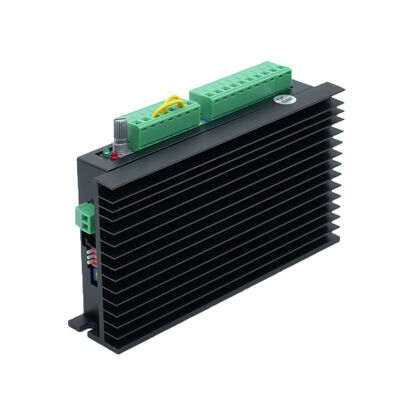

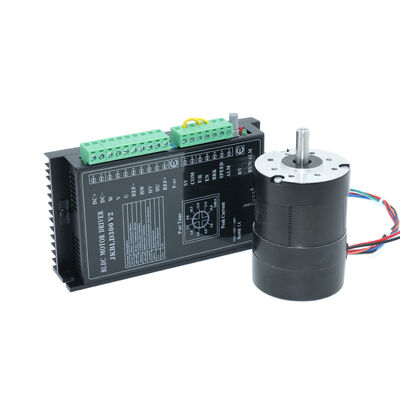

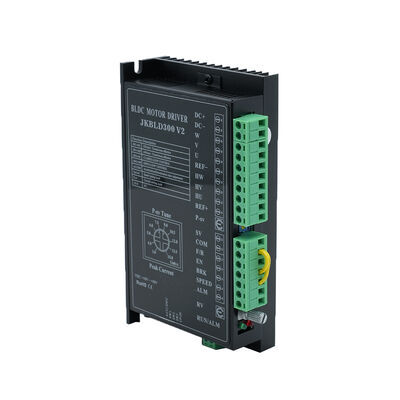

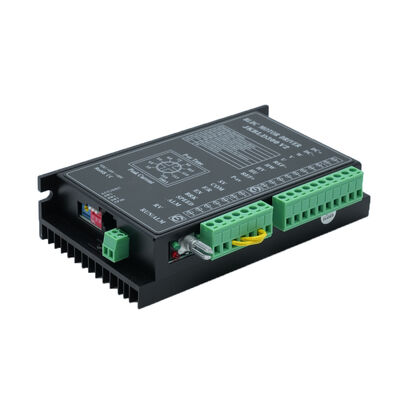

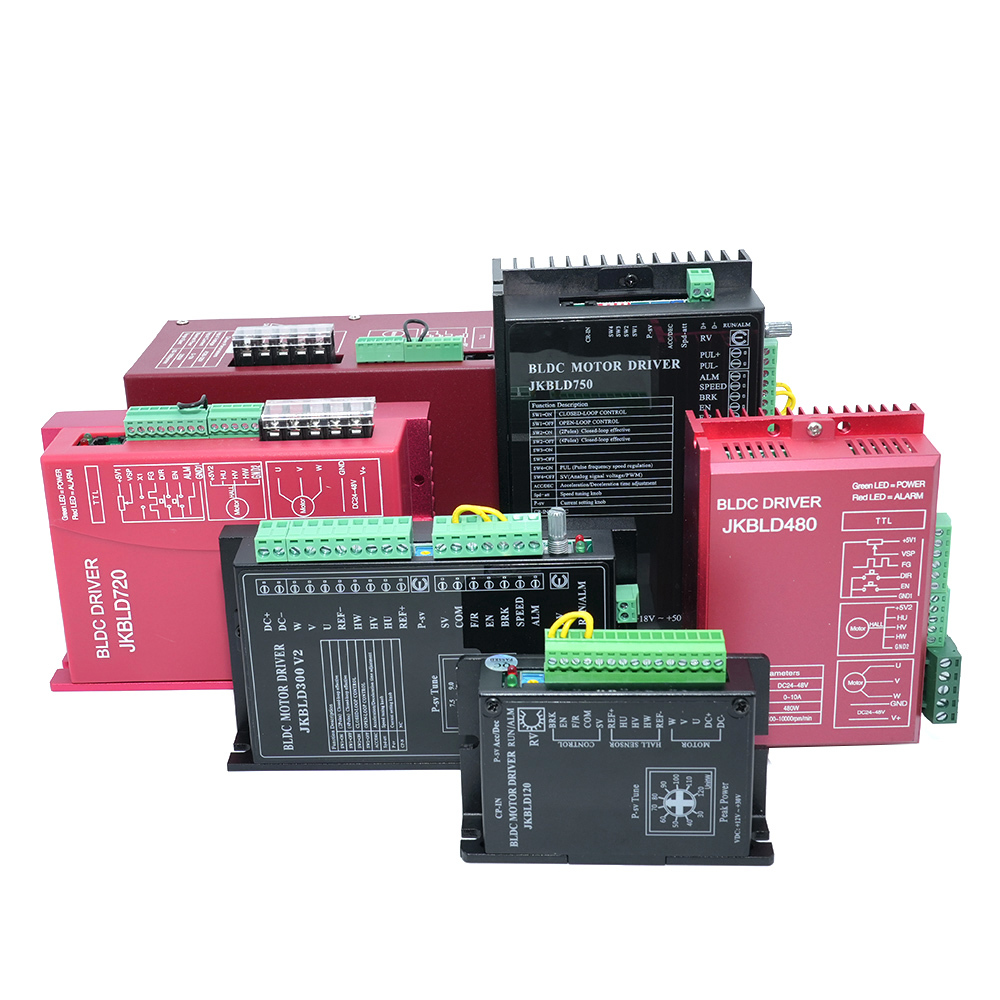

JKBLD120 Brushless DC Motor Driver 10V~30VDC 0A-8A For 0-120w BLDC Motor

JKBLD120 Brushless DC Motor Driver 10V~30VDC 0A-8A For 0-120w BLDC Motor

JKBLD120 Brushless DC Motor Driver 10V~30VDC 0A-8A For 0-120w BLDC Motor
video
JKBLD120 Brushless DC Motor Driver 10V~30VDC 0A-8A For 0-120w BLDC Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKBLS120
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $17.00 - US $22.00
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 50000 pcs/month
Contact Now
Detailed Product Description
Motor Type: DC Motor Input Voltage: 12V- 30V
Motor Speed: 20000rpm Weight: 0.6CE ROHSkg
Certified: CE ROHS Matched Motor: 0 - 120W
High Light:

bldc motor driver

,

motor driver

10V~30VDC 0A-8A Brushless Dc Motor Driver JKBLD120 For 0-120w Bldc Motor

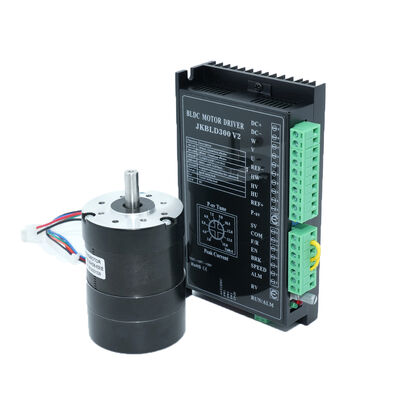

Suit motors:

Model
Specification Unit JK57BLS01 JK57BLS02 JK57BLS03 JK57BLS04
Number Of Phase Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 36
Rated Speed Rpm 4000
Rated Torque N.m 0.11 0.22 0.33 0.44
Rated Current Amps 2 3.6 5.3 6.8
Rated Power W 46 92 138 184
Peak Torque N.m 0.33 0.66 1 1.32
Peak Current Amps 6.8 11.5 15.5 20.5
Back E.M.F V/Krpm 7.7 7.4 7.3 7.1
Torque Constant N.m/A 0.073 0.07 0.07 0.068
Rotor Inertia g.c㎡ 75 119 173 230
Body Length mm 47 67 87 107
Weight Kg 0.44 0.75 1 1.25
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% RH
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less


    Model
Specification Unit JK60BLS01 JK60BLS02 JK60BLS03 JK60BLS04
Number Of Phase Phase 3
umber Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.3 0.6 0.9 1.2
Rated Current Amps 2.8 5.2 7.5 9.5
Rated Power W 94 188 283 377
Peak Torque N.m 0.9 1.8 2.7 3.6
Peak Current Amps 8.4 15.6 22.5 28.5
Back E.M.F V/Krpm 12.1 12.6 12.4 13.3
Torque Constant N.m/A 0.116 0.12 0.118 0.127
Rotor Inertia Kg.c㎡ 0.24 0.48 0.72 0.96
Body Length mm 78 99 120 141
Weight Kg 0.85 1.25 1.65 2.05
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity <= 85% RH
Working Environment No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust.
Altitude 1000m or below



Parameter Min Rated Max Unit
Motor Hall Sensor Angle 120°/240°
DC Power Input 12 24 30 V
Drive Current Output   5 8 A
Suitable Motor Speed 0   20000 rpm
Hall Sensor Voltage 4.5 5 5.5 V
Hall Sensor Current   20   mA
External Potentiometer   10K   Ω



Mark

define

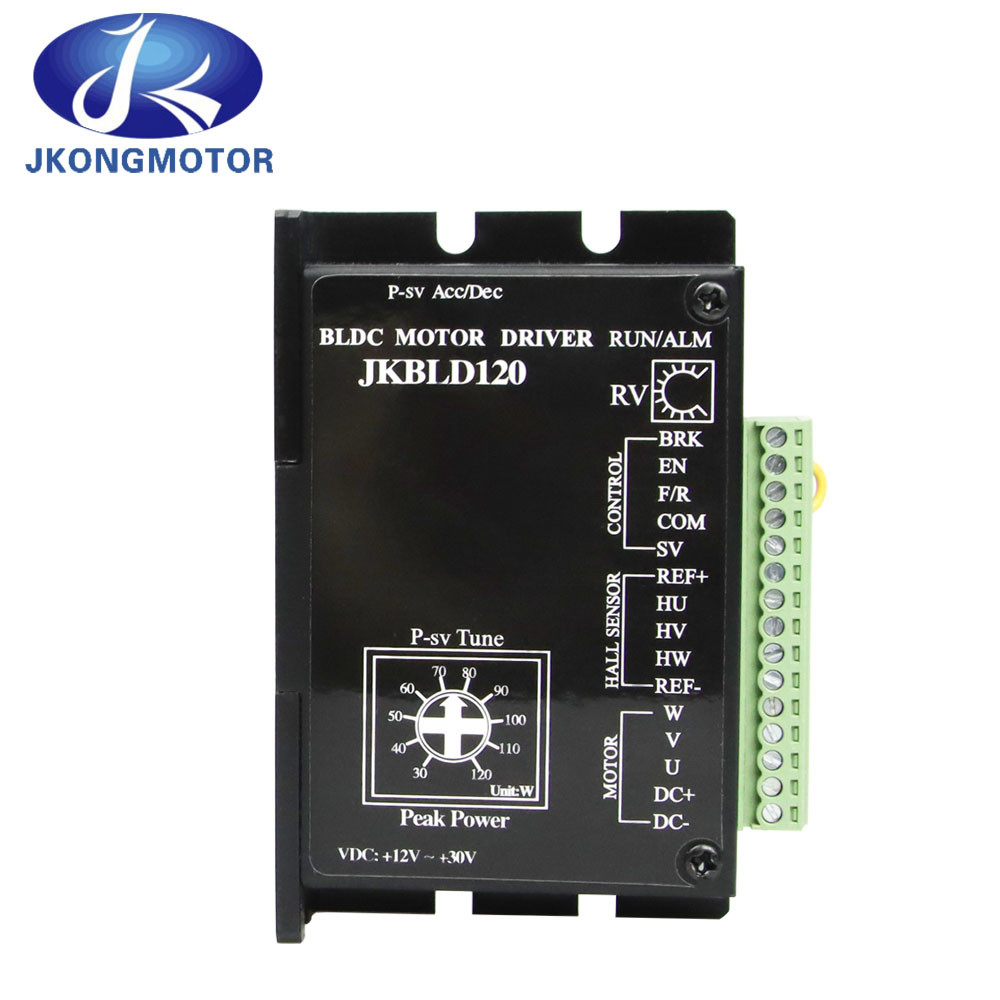

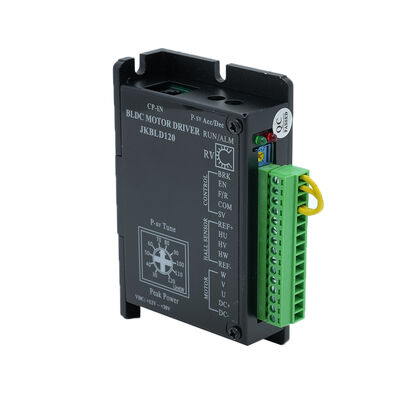

DC+/DC-

Power supply input  (DC12V~DC30V)don’t make mistake for + and -

U,V,W

Motor leading wires connect  thick wires

Hu,Hv,Hw

Hall signal leading wire connect     (thin wires Hu, Hv, Hw)

REF+

Hall power supply + (for motor hall input +5V)

REF-

Hall power supply - ( hall ground connect this port)

VCC

External potentiometer power supply port  ( just can use for potentiometer, can't for other external circuits)

SV

External potentiometer terminal ( See note speed regulation )

COM

common port ( Low level )

F/R

Direction: dangling or high level forward, low-level inversion         note 1

EN

Enable: high level/stop low-level/run           note 1

BRK

Fast brake: high level/stop low-level/run         note 1
