Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |

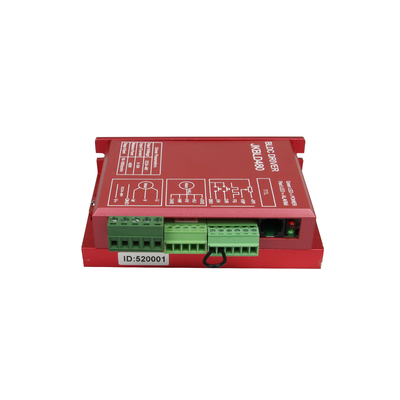

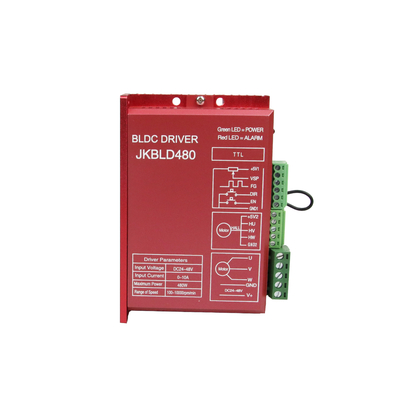

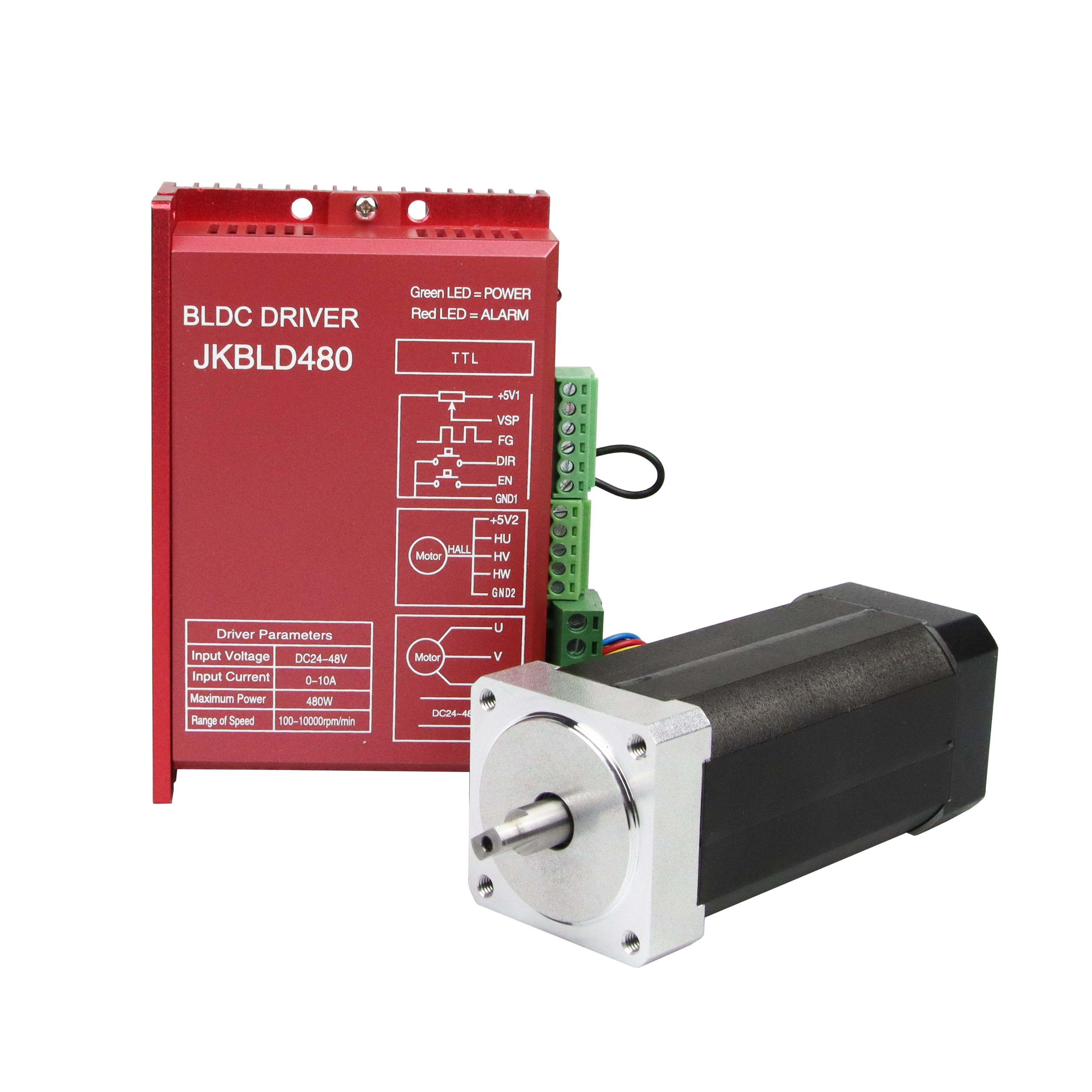

Model Number: | JKBLD480 |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US$26~US$30 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 100000pcs/month |
Model No.: | JKBLD480 | Supply Voltage: | 24VDC - 48VDC |
---|---|---|---|
Current: | 0A - 10A | Weight: | 600g |
Certified: | CE ROHS | Matched Motor: | 0 - 480w |
High Light: | 48vdc Bldc Motor Driver Controller,480w Bldc Motor Driver Controller,20000rpm Brushless DC Motor Driver |
Product Overview:
Main features:
Electrical Specification:
(1)Environmental Temperature:25℃
Power supply | DC18V~50V direct current (Capacity according to motor power selection) |
The maximum input current | Not greater than10A (according to motor and rated load) |
The maximum power | The maximum is 480W (over power motor is strictly prohibited) |
Insulation resistance | General temperature﹥500MΩ |
Insulation strength | General temperature and pressure 0.5KV,1minitute |
(2)EnvironmentalParameter
Cooling method | Natural air cooling (forced air cooling is recommended) | |
Environment | Condition | Avoid dust, oil mist and corrosive gases |
Temperature | 0℃~+50℃ | |
Humidity | ﹤80%RH,no condensation, no frost | |
Vibration | ﹤0.5G(4.9m/s2 )10Hz-60Hz (non-continuous operation) | |
Reserved temperature | -20℃~+65℃ | |
Size | 118mmX75.5mmX34mm | |
Weight | About 0.3Kg |
Main features:
It can be connected with an external speed display board, showing the speed; it can also be connected with computers to set drive parametersIt has double speed closed current design with low speed torque and smooth operation;
It has high speed output with the maximum speed of 20000rpm / min;
Speed control mode : analog quantity 0-5V,(according to the users’ requirement we can set PWM within 10Hz-300Hz
It has have EN, DIR signal control side;
It can output tachometer pulse;
It has over-current, overvoltage, under voltage , overheating, motor stalling and other protection functions
