| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JKBLS120 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $17.00 - US $22.00 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 50000 pcs/month |
| Motor Type: | DC Motor | Input Voltage: | 12V- 30V |
|---|---|---|---|
| Motor Speed: | 20000rpm | Weight: | 0.6CE ROHSkg |
| Certified: | CE ROHS | Matched Motor: | 0 - 120W |
| High Light: | SPWM BLDC Motor Driver,30VDC BLDC Motor Driver,ROHS Brushless DC Motor Driver |
||

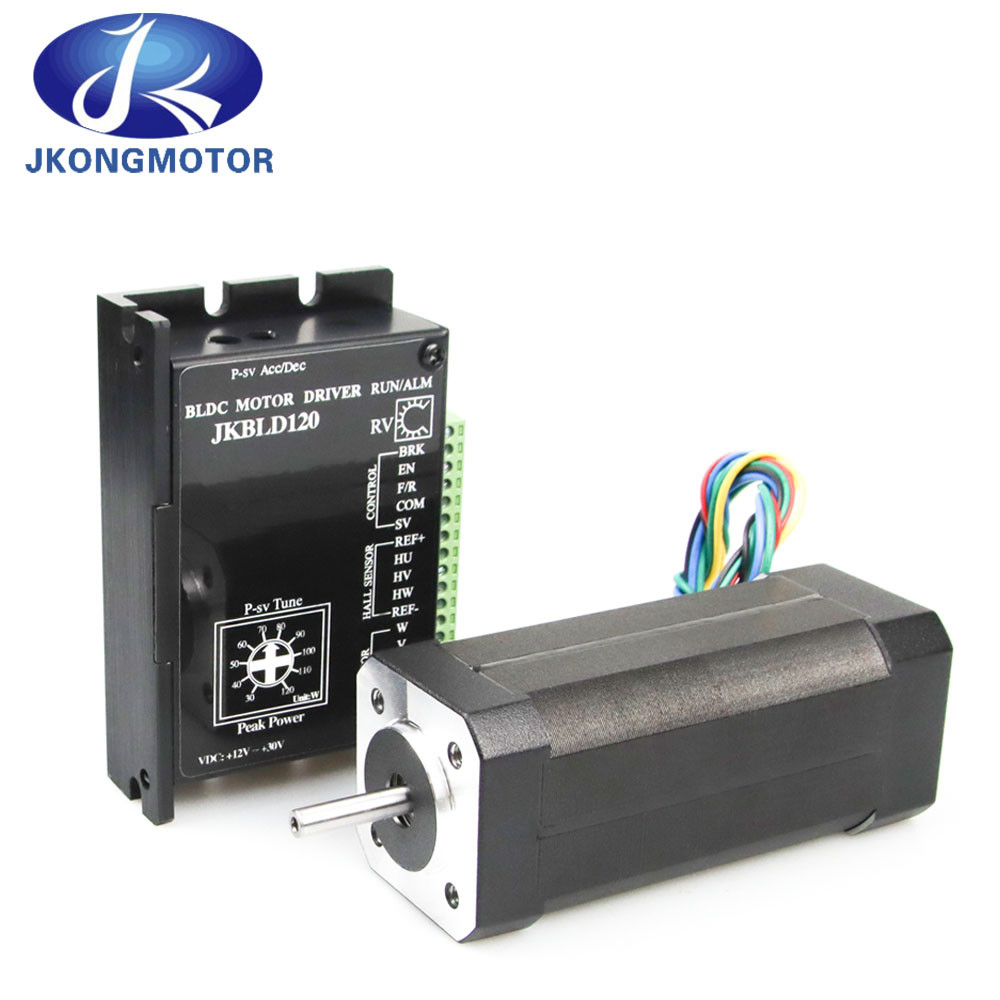

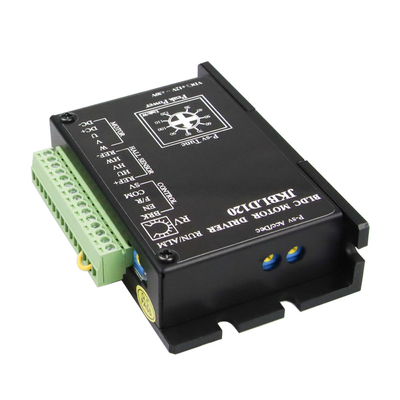

The JKBLD120 brushless dc driver is suit the following three-phase sine wave power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, ecternal analog voltage control, PS(such as PLS, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.
Specifications:
|
Parameters |
Min |
Rated |
Max |
Unit |
|
Hall effect angle |
120°/240° |
|
||
|
Power supply input voltage |
12 |
24 |
30 |
V |
|
Driver current output |
|
5 |
8 |
A |
|
Motor speed |
0 |
|
20000 |
rpm |
|
Hall signal voltage |
4.5 |
5 |
5.5 |
V |
|
Hall signal current |
|
20 |
|
mA |
|
External potentiometer |
|
10K |
|
Ω |
|

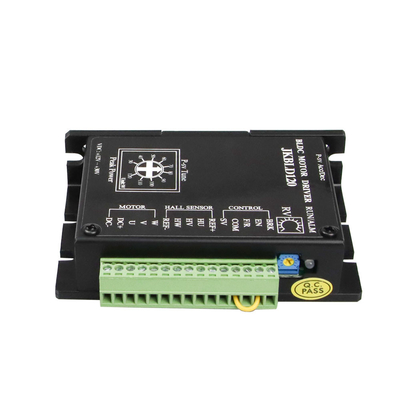

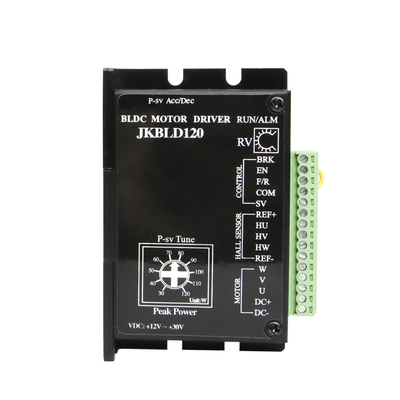

Mark |
define |
|
DC+/DC- |
Power supply input (DC12V~DC30V)don’t make mistake for + and - |
|
U,V,W |
Motor leading wires connect thick wires |
|
Hu,Hv,Hw |
Hall signal leading wire connect (thin wires Hu, Hv, Hw) |
|
REF+ |
Hall power supply + (for motor hall input +5V) |
|
REF- |
Hall power supply - ( hall ground connect this port) |
|
VCC |
External potentiometer power supply port ( just can use for potentiometer, can't for other external circuits) |
|
SV |
External potentiometer terminal ( See note speed regulation ) |
|
COM |
common port ( Low level ) |
|
F/R |
Direction: dangling or high level forward, low-level inversion note 1 |
|
EN |
Enable: high level/stop low-level/run note 1 |
|
BRK |
Fast brake: high level/stop low-level/run note 1 |
Suit motor:
| Model | |||||
| Specification | Unit | JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% RH | ||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
| Altitude | 1000 meters or less | ||||
| Model | |||||
| Specification | Unit | JK57BLF01 | JK57BLF02 | JK57BLF03 | JK57BLF04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles |
4 |
|||
| Rated Voltage | VDC | 36 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.c㎡ | 75 | 119 | 173 | 230 |
| Body Length | mm | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% RH | ||||
| Working Environment | Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust | ||||
| Altitude | 1000 meters or less | ||||
