| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JK |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | 110ST-M05030 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US139~US$270 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-35days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 100000pcs/month |
| Brand: | JK | Model: | 110ST-M05030 |
|---|---|---|---|
| Frame Size: | 110mm | Holding Torque: | 5N.m |
| Rated Power: | 1.5KW | Rated Speed: | 3000Rpm |
| Rated Voltage: | 220V | Rated Current: | 6A |
| High Light: | closed loop Ac servo motor,1.5W Ac servo motor,6A single phase servo motor |
||

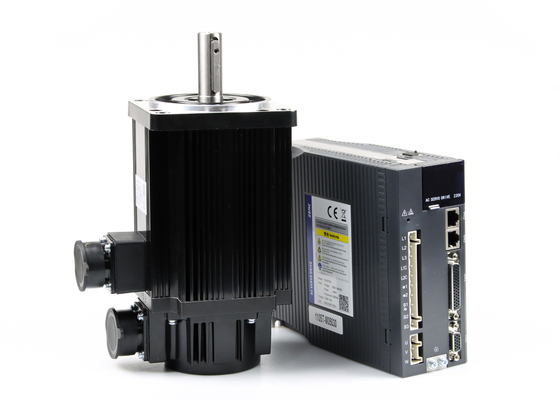

1.5W 220V 110ST closed-loop control Ac servo motor kit for cnc milling lathe machine
Advantages of Servo Motors:
Specifications of 110ST Ac servo motor:
| Model Name | Holding Torque | Rated Speed | Rated Current | Rated Power | Driver |
| N.m | Rpm | A | KW | ||
| 40ST-M00130 | 0.16 | 3000 | 0.4 | 0.05 | JK-G2A3204 |
| 40ST-M00330 | 0.32 | 3000 | 0.6 | 0.1 | JK-G2A3204 |
| 60ST-M00630 | 0.637 | 3000 | 1.5 | 0.2 | JK-G2A3204 |
| 60ST-M01330 | 1.3 | 3000 | 2.8 | 0.4 | JK-G2A3204 |
| 60ST-M01930 | 1.9 | 3000 | 3.5 | 0.6 | JK-G2A3208 |
| 80ST-M01330 | 1.3 | 3000 | 2 | 0.4 | JK-G2A3204 |
| 80ST-M02430 | 2.39 | 3000 | 3 | 0.75 | JK-G2A3208 |
| 80ST-M03520 | 3.5 | 2000 | 3 | 0.73 | JK-G2A3208 |
| 80ST-M04025 | 4 | 2500 | 4.4 | 1 | JK-G2A3208 |
| 90ST-M02430 | 2.39 | 3000 | 3 | 0.75 | JK-G2A3208 |
| 90ST-M03520 | 3.5 | 2000 | 3 | 0.73 | JK-G2A3208 |
| 90ST-M04025 | 4 | 2500 | 4.4 | 1 | JK-G2A3208 |
| 110ST-M02030 | 2 | 3000 | 2.5 | 0.6 | JK-G2A3215 |
| 110ST-M04030 | 4 | 3000 | 5 | 1.2 | JK-G2A3215 |
| 110ST-M05030 | 5 | 3000 | 6 | 1.5 | JK-G2A3215 |
| 110ST-M06030 | 6 | 3000 | 6 | 1.8 | JK-G2A3215 |
| 130ST-M04025 | 4 | 2500 | 4 | 1 | JK-G2A3215 |
| 130ST-M05025 | 5 | 2500 | 5 | 1.3 | JK-G2A3215 |
| 130ST-M06015 | 6 | 1500 | 4.3 | 0.95 | JK-G2A3215 |
| 130ST-M06025 | 6 | 2500 | 6 | 1.5 | JK-G2A3215 |
| 130ST-M07725 | 7.7 | 2500 | 7.5 | 2 | JK-G2A3215 |
| 130ST-M10015 | 10 | 1500 | 6 | 1.5 | JK-G2A3215 |
| 130ST-M10025 | 10 | 2500 | 10 | 2.6 | JK-G2A3215 |
| 130ST-M15015 | 15 | 1500 | 9.5 | 2.3 | JK-G2A3215 |
| Motor Type | 110ST-M02030 | 110ST-M04020 | 110ST-M04030 | 110ST-M05030 | 110ST-M06020 | 110ST-M06030 |
| Rated Power(KW) | 0.6 | 0.8 | 1.2 | 1.5 | 1.2 | 1.8 |
| Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Current(A) | 2.5 | 3.5 | 5.0 | 6.0 | 4.5 | 6.0 |
| Rated Speed(rpm) | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 |
| Rated Torque(N.m) | 2 | 4 | 4 | 5 | 6 | 6 |
| Peak Torque(N.m) | 6 | 12 | 12 | 15 | 12 | 18 |
| Voltage Constant(V/Krpm) | 56 | 79 | 54 | 62 | 83 | 60 |
| Torque Coefficient(N.m/A) | 0.8 | 1.14 | 0.8 | 0.83 | 1.3 | 1.0 |
| Rotor Inertia(Kg.㎡) | 0.31×10-4 | 0.54×10-4 | 0.54×10-4 | 0.63×10-4 | 0.76×10-4 | 0.76×10-4 |
| Line-Line Resistance(Ω) | 3.6 | 2.41 | 1.09 | 1.03 | 1.46 | 0.81 |
| Line-Line Inductance(mH) | 8.32 | 7.3 | 3.3 | 3.43 | 4.7 | 2.59 |
| Electrical Time Constant(ms) | 2.3 | 3 | 3.0 | 3.33 | 3.2 | 3.2 |
| Weight(Kg) | 4.5 | 6 | 6 | 6.8 | 7.9 | 7.9 |
| Insulation Class | Class F | |||||

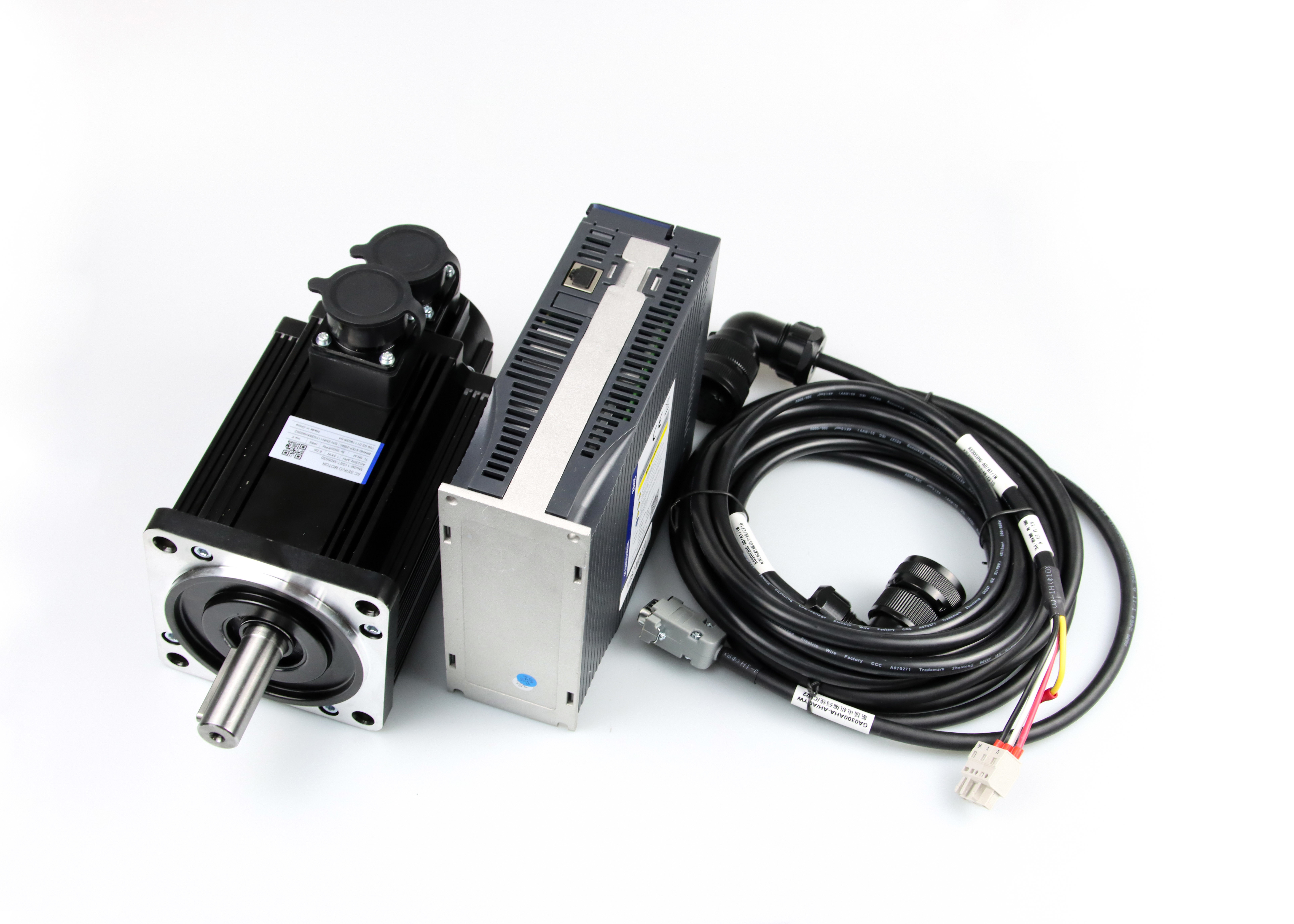

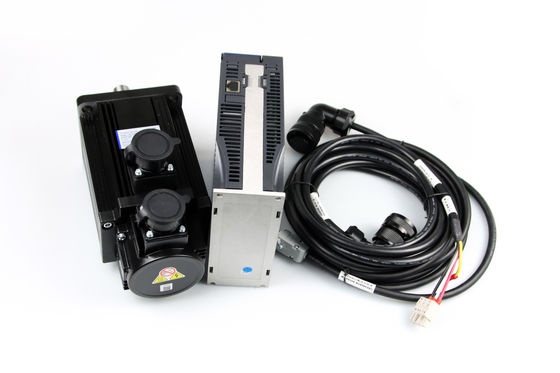

Details of Ac Servo motor:
Servo motor Features:
These are low weight devices.
It offers reliability as well as stability in operation.
There is not much noise generated at the time of operation.
It offers almost linear torque-speed characteristics.
As brushes and slip rings are not present here thus it reduces maintenance cost.
Applications of AC Servo motors:
Due to the various advantages offered by the AC servomotors, these majorly finds applications in the instruments that operate on servomechanism, in position controlling devices, computers. Along with this these also find applications in tracking systems, machine tools and robotics machinery.
FAQ(Q=Question, A=Answer)
1. Q: Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2.Q: Do you provide the samples?
A: YES. Our company can provide the samples to you
3.Q: Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
4.Q: why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5.Q: How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6.Q: How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
