| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JK |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | 130ST-M10025 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$230~US$345 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-35days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 100000pcs/month |
| Brand: | JK | Model: | 130ST-M10025 |
|---|---|---|---|
| Frame Size: | 130mm | Holding Torque: | 10N.m |
| Rated Power: | 2.6KW | Rated Speed: | 2500Rpm |
| Rated Voltage: | 220V | Rated Current: | 10A |
| High Light: | plastic machines ac spindle drives,2500rpm ac spindle drives,2.6KW ac servo spindle motor |
||

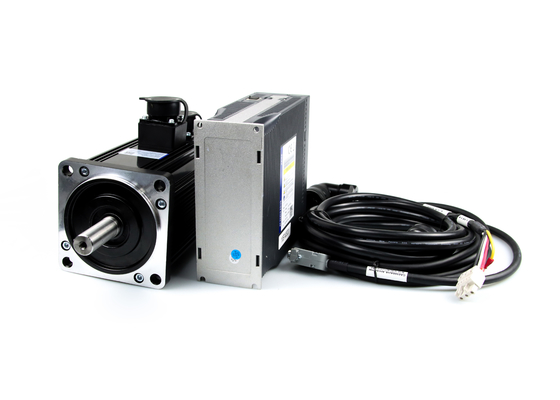

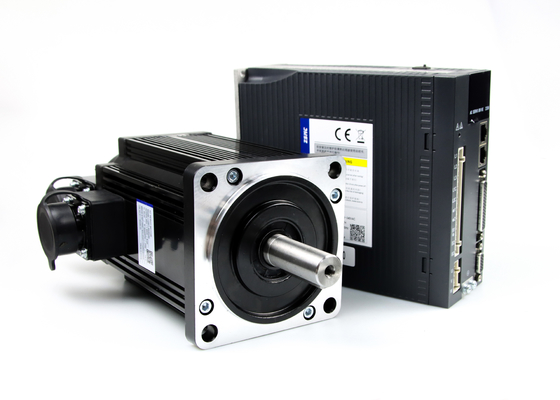

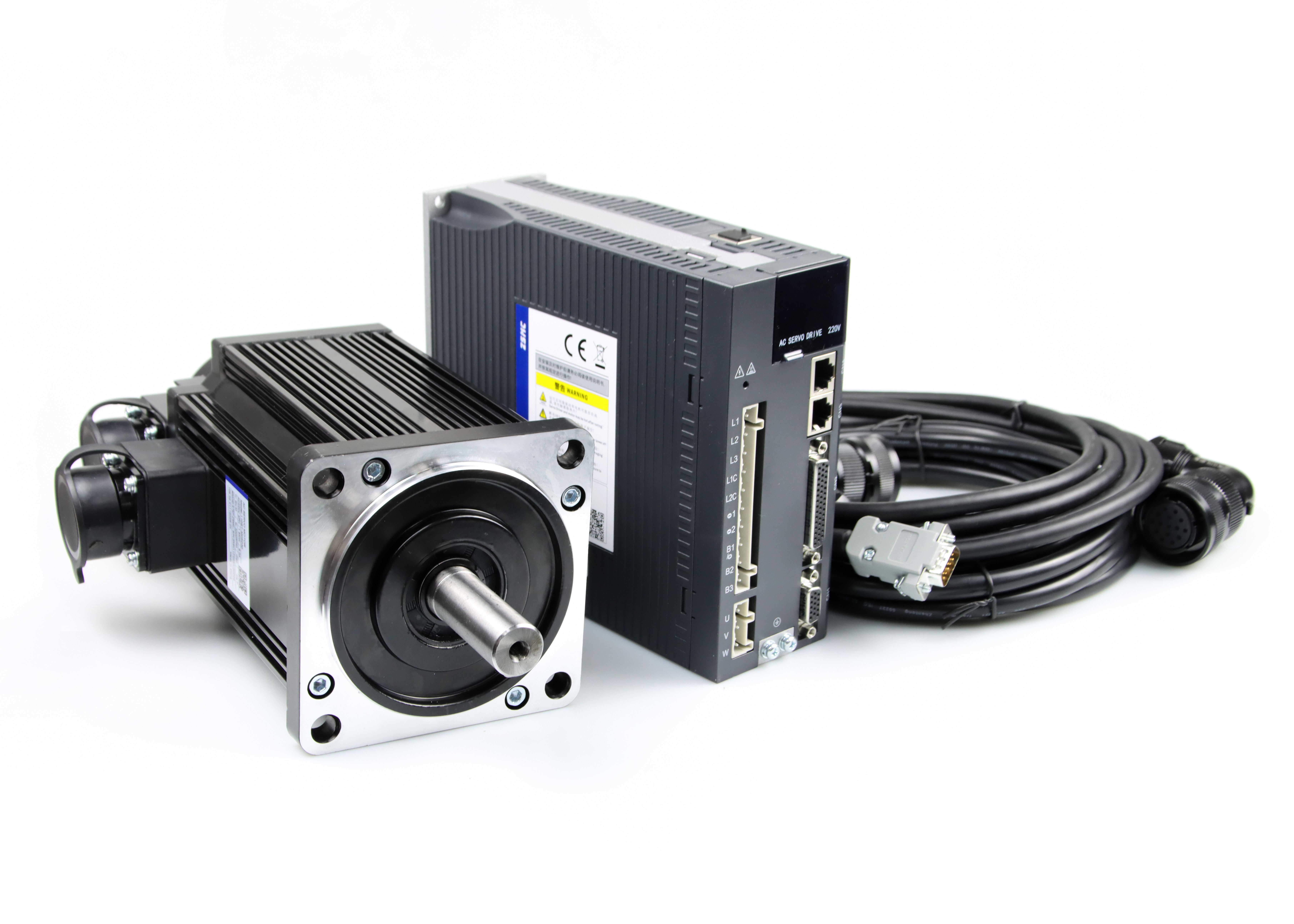

130ST 2.6KW 10N.m 10A 2500rpm Ac servo motor with encoder for plastic machines
Specifications of Ac servo motor:
| Model Name | Holding Torque | Rated Speed | Rated Current | Rated Power | Driver |
| N.m | Rpm | A | KW | ||
| 40ST-M00130 | 0.16 | 3000 | 0.4 | 0.05 | JK-G2A3204 |
| 40ST-M00330 | 0.32 | 3000 | 0.6 | 0.1 | JK-G2A3204 |
| 60ST-M00630 | 0.637 | 3000 | 1.5 | 0.2 | JK-G2A3204 |
| 60ST-M01330 | 1.3 | 3000 | 2.8 | 0.4 | JK-G2A3204 |
| 60ST-M01930 | 1.9 | 3000 | 3.5 | 0.6 | JK-G2A3208 |
| 80ST-M01330 | 1.3 | 3000 | 2 | 0.4 | JK-G2A3204 |
| 80ST-M02430 | 2.39 | 3000 | 3 | 0.75 | JK-G2A3208 |
| 80ST-M03520 | 3.5 | 2000 | 3 | 0.73 | JK-G2A3208 |
| 80ST-M04025 | 4 | 2500 | 4.4 | 1 | JK-G2A3208 |
| 90ST-M02430 | 2.39 | 3000 | 3 | 0.75 | JK-G2A3208 |
| 90ST-M03520 | 3.5 | 2000 | 3 | 0.73 | JK-G2A3208 |
| 90ST-M04025 | 4 | 2500 | 4.4 | 1 | JK-G2A3208 |
| 110ST-M02030 | 2 | 3000 | 2.5 | 0.6 | JK-G2A3215 |
| 110ST-M04030 | 4 | 3000 | 5 | 1.2 | JK-G2A3215 |
| 110ST-M05030 | 5 | 3000 | 6 | 1.5 | JK-G2A3215 |
| 110ST-M06030 | 6 | 3000 | 6 | 1.8 | JK-G2A3215 |
| 130ST-M04025 | 4 | 2500 | 4 | 1 | JK-G2A3215 |
| 130ST-M05025 | 5 | 2500 | 5 | 1.3 | JK-G2A3215 |
| 130ST-M06015 | 6 | 1500 | 4.3 | 0.95 | JK-G2A3215 |
| 130ST-M06025 | 6 | 2500 | 6 | 1.5 | JK-G2A3215 |
| 130ST-M07725 | 7.7 | 2500 | 7.5 | 2 | JK-G2A3215 |
| 130ST-M10015 | 10 | 1500 | 6 | 1.5 | JK-G2A3215 |
| 130ST-M10025 | 10 | 2500 | 10 | 2.6 | JK-G2A3215 |
| 130ST-M15015 | 15 | 1500 | 9.5 | 2.3 | JK-G2A3215 |
| Motor Type | 130ST-M04025 | 130ST-M05025 | 130ST-M06025 | 130ST-M07725 | 130ST-M10010 | 130ST-M10015 | 130ST-M10025 | 130ST-M15015 | 130ST-M15025 |
| Rated Power(KW) | 1 | 1.3 | 1.5 | 2.0 | 1.0 | 1.5 | 2.6 | 2.3 | 3.8 |
| Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated Current(A) | 4.0 | 5.0 | 6.0 | 7.5 | 4.5 | 6.0 | 10 | 9.5 | 13.5 |
| Rated Speed(rpm) | 2500 | 2500 | 2500 | 2500 | 1000 | 1500 | 2500 | 1500 | 2500 |
| Rated Torque(N.m) | 4 | 5.0 | 6 | 7.7 | 10 | 10 | 10 | 15 | 15 |
| Peak Torque(N.m) | 12 | 15 | 18 | 22 | 20 | 25 | 25 | 30 | 30 |
| Voltage Constant(V/Krpm) | 72 | 68 | 65 | 68 | 140 | 103 | 70 | 114 | 67 |
| Torque Coefficient(N.m/A) | 1.0 | 1.0 | 1.0 | 1.03 | 2.2 | 1.67 | 1.0 | 1.58 | 1.11 |
| Rotor Inertia(Kg.㎡) | 0.85×10-4 | 1.06×10-4 | 1.26×10-4 | 1.53×10-4 |
1.94×10-4 |
1.94×10-4 | 1.94×10-4 |
2.77×10-4 |
2.77×10-4 |
| Line-Line Resistance(Ω) | 2.76 | 1.84 | 1.21 | 1.01 | 2.7 | 1.5 | 0.73 | 1.1 | 0.49 |
| Line-Line Inductance(mH) | 6.42 | 4.9 | 3.87 | 2.94 | 8.8 | 4.37 | 2.45 | 4.45 | 1.68 |
| Electrical Time Constant(ms) | 2.32 | 2.66 | 3.26 | 2.91 | 3.26 | 2.91 | 3.36 | 4.05 | 3.43 |
| Weight(Kg) | 6.2 | 6.6 | 7.4 | 8.3 | 10.2 | 10.2 | 9.8 | 12.6 | 11.7 |
| Insulation Class | Class F | ||||||||
Drawing of Servo motor:
Features:
1) Can be widely used in mask machines, fans, pumps, compressors, transport machines, machinery, and other general machinery.
2) It Can also be used in petroleum, chemical, steel, mining, and other harsh scenes.
3) High-inertia servo motor, high smoothness operation
4) Waterproof, dustproof and greaseproof
5) Power change from 50w to 30kw
Application:
CNC machining equipment, food processing equipment, material handling equipment, medical equipment, textile machinery and other industries.
FAQ(Q=Question, A=Answer)
1. Q: Can you make the gearbox or Gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them has many work years experience.
2. Q: Do you provide the samples?
A: YES. Our company can provide the samples to you
3. Q: Do you provide technical support?
A: YES. Our company have strong R&D capability, we can provide technical support if you need.
4. Q: Why should you buy from us, and not other suppliers?
A: Professional one-to-one motor customized. The world's large enterprise of choice for high-quality suppliers. ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. Q: How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. Q: How can I know if the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of the specification. After you confirm, we will prepare the samples for you. also, we will offer some good advances according to your product use.
