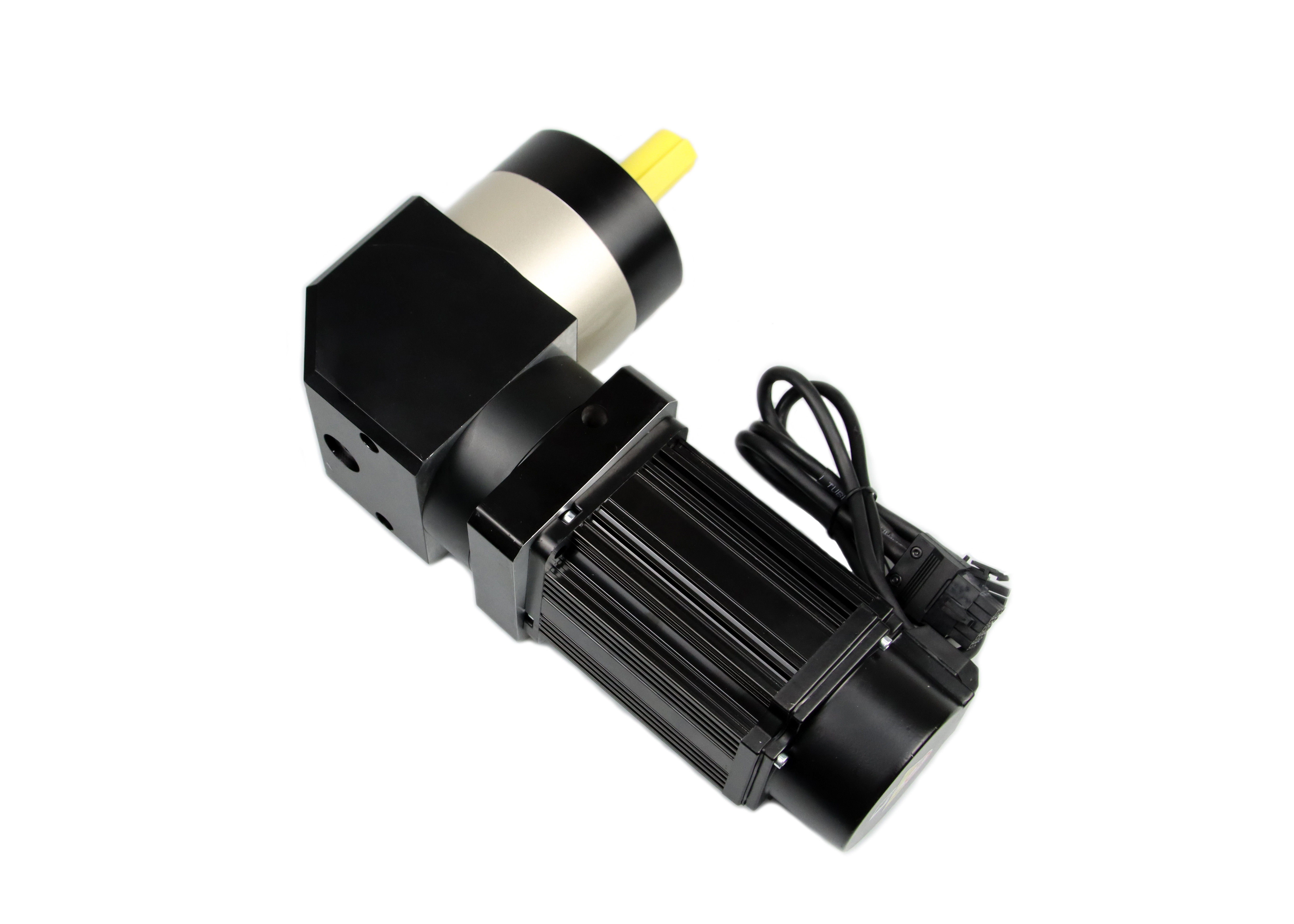

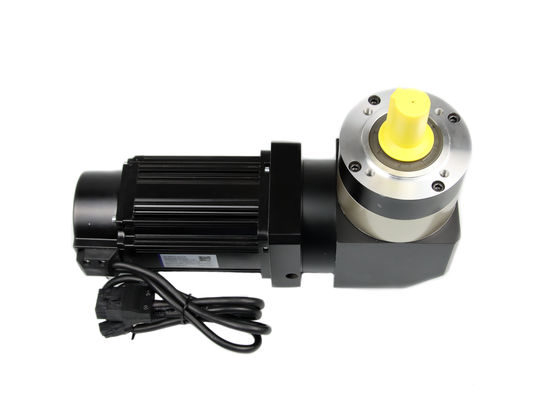

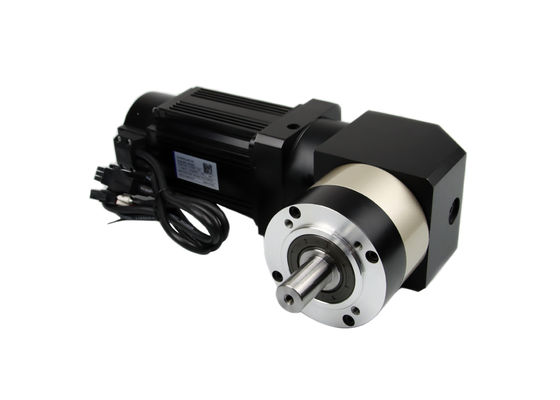

80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox

80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox

  • 80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox
  • 80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox
  • 80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox
80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 80ST-M02430+WPLF90
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$300~US$355
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Ac Servo Motor Current: 3A
Torque: 2.39N.m Speed: 3000rpm
Power: 750w Voltage: 220v
Peak Torque: 7.1N.m Peak Current: 9A
Color: Black Driver: G2A3208
High Light:

750w AC Servo Motor

,

G2A3208 750w servo motor

,

90 Degree Gearbox servo motor

80ST 3000rpm 750w 2.89N.m Ac servo motor with 90 degree angle gearbox

1.Genaral Specification of servo motors:

  • Nema: Ac servo motor
  • Model: 80ST-M02430+WPLF90
  • Rated Torque: 2.39N.m
  • Current / Phase: 3A
  • Speed: 3000rpm
  • Power: 750w
  • Voltage: 220v
  • Peak torque: 7.1N.m
  • Peak current: 9A
  • Driver: G2A3208

2.Electrical Specification of 80ST AC servo motor:



Motor Type 80ST-M01330 80ST-M02430 80ST-M03520 80ST-M04025
Rated power  0.4 0.75 0.73 1.0
Rated Voltage 220 220 220 220
Rated current 2 3.0 3.0 4.4
Rated speed 3000 3000 2000 2500
Rated torque 1.27 2.39 3.5 4.0
Peak torque 3.8 7.1 10.5 12
Peak current 6 9 9 13.2
Volatge constant 40 48 71 56
Torque coefficient 0.64 0.8 1.17 0.9
Rotor inertia 1.05×10-4 1.82×10-4 2.63×10-4 2.97×10-4
Line-Line resistance 4.44 2.88 3.65 1.83
Line-Line inductance 7.93 6.4 8.8 4.72
Electrical time constant 1.66 2.22 2.4 2.58
Weight 1.78 2.86 3.9 4.1





We produce gearbox ratio include 1:3,1:10.



3.Drawing of 80ST-M02430 with 90 drgree angle gearbox:

80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox 080ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox 1

80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox 2

4.Produce equipment:

80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox 3

5.Production Process:
80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox 4

6.Advantages of hybrid 57mm Stepper Motor


The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   7.Applications of Nema23/57mm electric motor:

As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
They are used in numeric control of machine tools.
Used in tape drives, floppy disc drives, printers and electric watches.
The stepper motor also use in X-Y plotter and robotics.
It has wide application in textile industries and integrated circuit fabrications.
The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
Stepper motors of microwatts are used in the wrist watches.
In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.



80ST 3000rpm 750w 2.89N.M AC Servo Motor With 90 Degree Angle Gearbox 5
