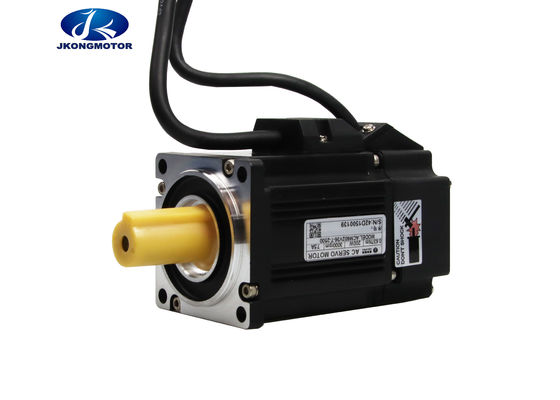

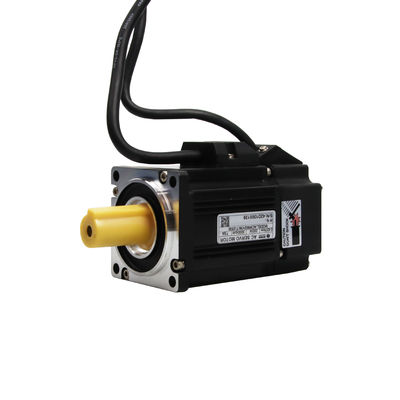

0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine

0.637NM 200W 3000rpm Brushless AC Servo Motor Kits Encoder For Sewing Machine

  • 0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine
  • 0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine
  • 0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine
0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Ledashine
Certification: CE, ROHS,ISO9001
Model Number: ACM602V36-T-2500+ACS806
Payment & Shipping Terms:
Minimum Order Quantity: 1-10PCS
Price: US$58~US$178
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Brand: Ledashine Model: ACM602V36-T-2500+ACS806
Frame Size: 60mm Holding Torque: 0.637N.m
Rated Power: 200W Rated Speed: 3000Rpm
Rated Voltage: 36V Rated Current: 7.5A
Encoder Resolution: 2500CPR Application: Sewing Machine
High Light:

3000rpm AC Servo Motor Kits

,

200W brushless ac servo motor

,

Sewing Machine ac servo controller

0.637N.m 200W 3000rpm Leadshine AC Servo Motor kits encoder for sewing machine



AC Servo motor Introduction:



The ACM602V36 servo motors offer high performance with wide output upto 200W . Mounting is compatible with Panasonic and Fuji AC servo motors. The ACM series are ideal for cost sensitive applications. Standard model comes with a standard 2500-line encoder with differential encoder signals (A, B, Index), and Hall Sensors with standard Hall signals (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors can meet requirements of applications requiring speed from as low as 1rpm to as high as 4000 rpm.



Features of 200w Ac servo motor:



Brand Ledashine
Model ACM602V36-T-2500+ACS806
Frame Size 60mm
Holding Torque 0.637N.m
Peak Torque 1.92N.m
Rated Power 200W
Rated Speed 3000Rpm
Peak Speed 4000Rpm
Rated Voltage 36V
Rated Current 7.5A
Peak Current 21A
Encoder Resolution 2500CPR


This kit includes:
1pc 200W Servo Motor
1pc ACS806 Driver
Cable


Drawing of Servo motor:

0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine 0

0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine 1

0.637NM 200W 3000rpm Brushless  AC Servo Motor Kits Encoder For Sewing Machine 2

Servo motor Features:



These are low weight devices.
It offers reliability as well as stability in operation.
There is not much noise generated at the time of operation.
It offers almost linear torque-speed characteristics.
As brushes and slip rings are not present here thus it reduces maintenance cost.



Applications of AC Servo motors:



Due to the various advantages offered by the AC servomotors, these majorly finds applications in the instruments that operate on servomechanism, in position controlling devices, computers. Along with this these also find applications in tracking systems, machine tools and robotics machinery.
