|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||1-10PCS|
|Packaging Details:||with export carton . big quantity with pallet|
|Delivery Time:||For samples , 7-15 days / For batch , 15-35days|
|Payment Terms:||T/T, Western Union, paypal|
|Frame Size:||60mm||Holding Torque:||0.637N.m|
|Rated Power:||200W||Rated Speed:||3000Rpm|
|Rated Voltage:||36V||Rated Current:||7.5A|
|Encoder Resolution:||2500CPR||Application:||Sewing Machine|
Sewing Machine AC Servo Motor,
0.637NM AC Servo Motor,
ROHS 200w servo motor

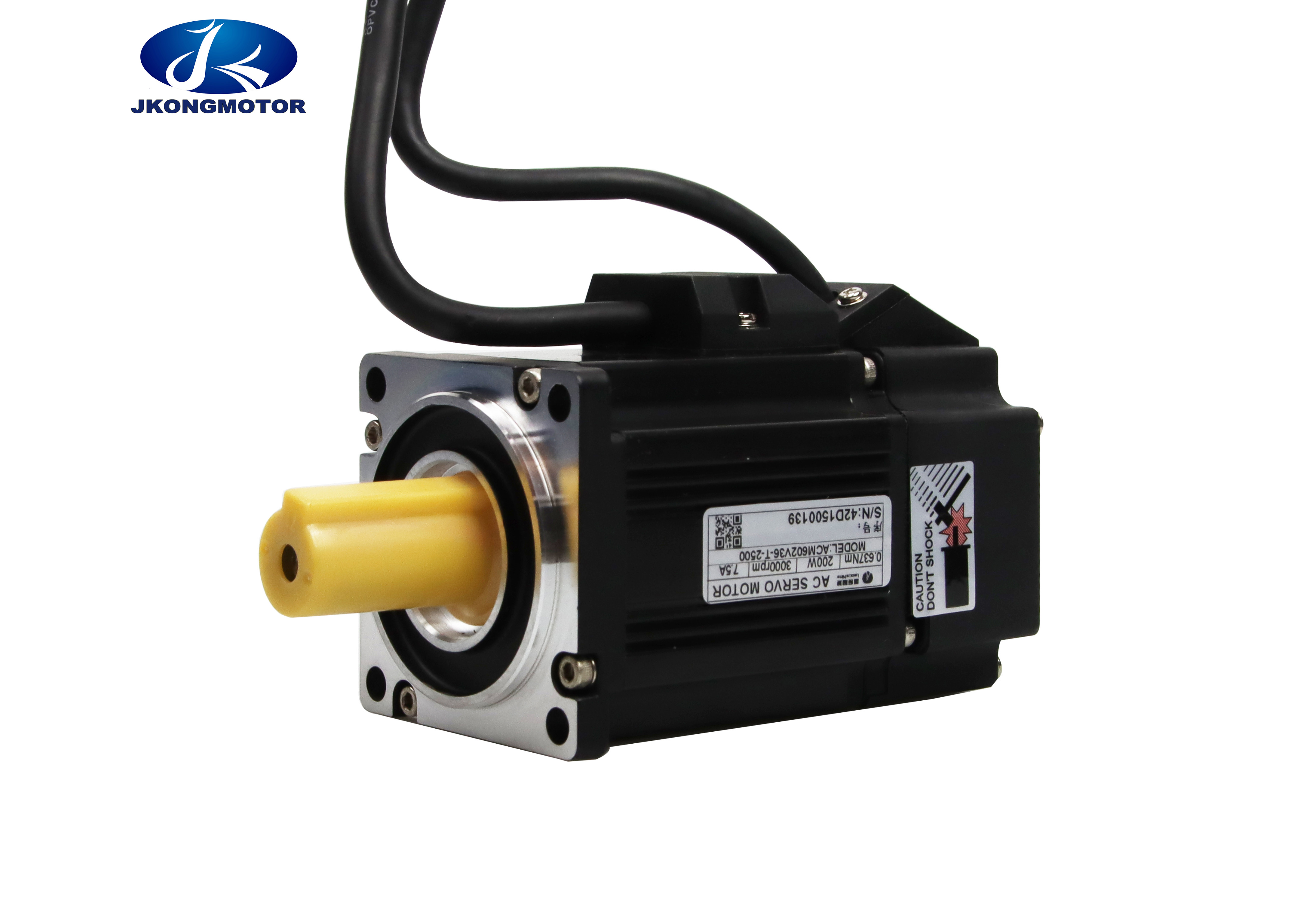

0.637N.m 200W 3000rpm Leadshine AC Servo Motor kits encoder for sewing machine
AC Servo motor Introduction:
The ACM602V36 servo motors offer high performance with wide output upto 200W . Mounting is compatible with Panasonic and Fuji AC servo motors. The ACM series are ideal for cost sensitive applications. Standard model comes with a standard 2500-line encoder with differential encoder signals (A, B, Index), and Hall Sensors with standard Hall signals (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors can meet requirements of applications requiring speed from as low as 1rpm to as high as 4000 rpm.
Features of 200w Ac servo motor:

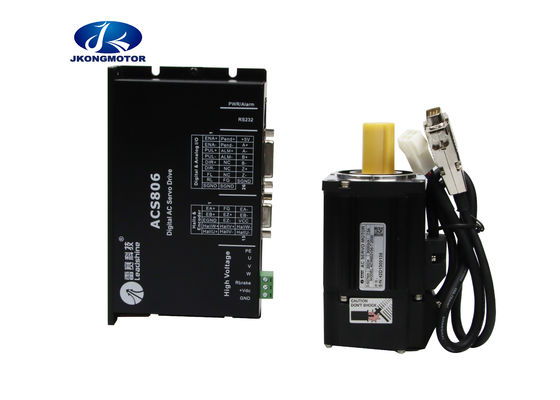

This kit includes:
1pc 200W Servo Motor

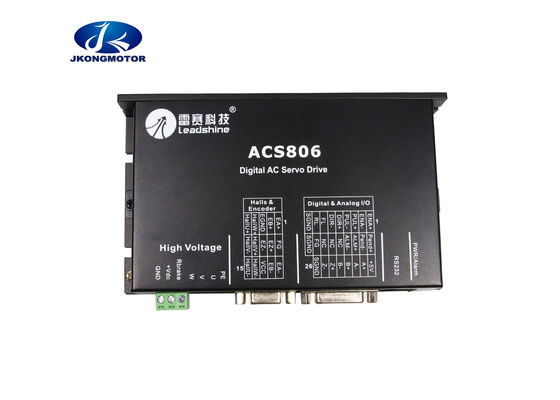

1pc ACS806 Driver
Drawing of Servo motor:
Servo motor Features:
These are low weight devices.
It offers reliability as well as stability in operation.
There is not much noise generated at the time of operation.
It offers almost linear torque-speed characteristics.
As brushes and slip rings are not present here thus it reduces maintenance cost.
Applications of AC Servo motors:
Due to the various advantages offered by the AC servomotors, these majorly finds applications in the instruments that operate on servomechanism, in position controlling devices, computers. Along with this these also find applications in tracking systems, machine tools and robotics machinery.
