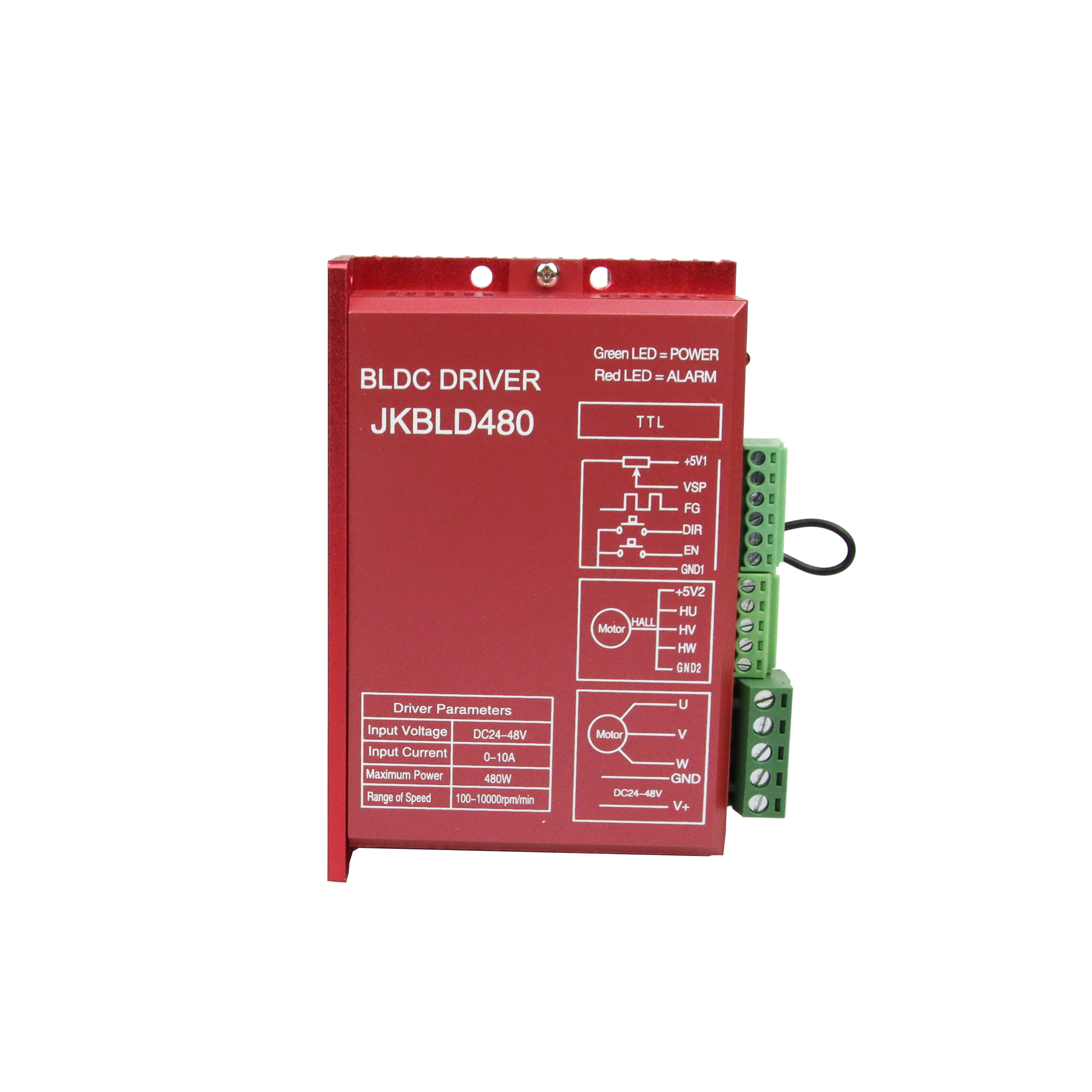

ISO9001 ROHS 12v 3 Phase Brushless Motor Driver Dust Proof

ISO9001 ROHS 12v 3 Phase Brushless Motor Driver Dust Proof

ISO9001 ROHS 12v 3 Phase Brushless Motor Driver Dust Proof
video
ISO9001 ROHS 12v 3 Phase Brushless Motor Driver Dust Proof
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKBLD720
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: US$38~US$42
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model No.: JKBLD720 Supply Voltage: 24VDC - 48VDC
Current: 0A - 15A Weight: 600g
Certified: CE ROHS Matched Motor: 0 - 720w
High Light:

ROHS 3 phase brushless motor driver

,

12v 3 phase brushless motor driver

,

ISO9001 12v brushless motor controller



24V~48VDC 0A-15A For 0-720w JKBLD720 Brushless DC Motor Driver



Electrical Specification:



(1) Environmental Temperature:25℃



Power supply DC18V~50V direct current (Capacity according to motor power selection)
The maximum input current Not greater than10A (according to motor and rated load)
The maximum power The maximum is 480W (over power motor is strictly prohibited)
Insulation resistance General temperature﹥500MΩ
Insulation strength General temperature and pressure 0.5KV,1minitute





(2) EnvironmentalParameter



Cooling method Natural air cooling (forced air cooling is recommended)
Environment Condition Avoid dust, oil mist and corrosive gases
Temperature 0℃~+50℃
Humidity ﹤80%RH,no condensation, no frost
Vibration ﹤0.5G(4.9m/s2 )10Hz-60Hz (non-continuous operation)
Reserved temperature -20℃~+65℃
Size 118mmX75.5mmX34mm
Weight About 0.3Kg




Description:



JKBLD720 brushless DC motor driver is our company's latest high-tech product for the field of medium power motor drive. This product uses a large-scale integrated circuit to replace the original hardware. It has higher anti-jamming and fast response ability. It is suitable for all the three-phase brushless DC motors with low voltage DC18V-50V (boards show DC24V-48V) and peak current below 15A. Even if working with large current, it is still in low temperature. It is widely used in knitting equipment, medical equipment, food packaging machinery, power tools and a series of areas of electrical automation and control.

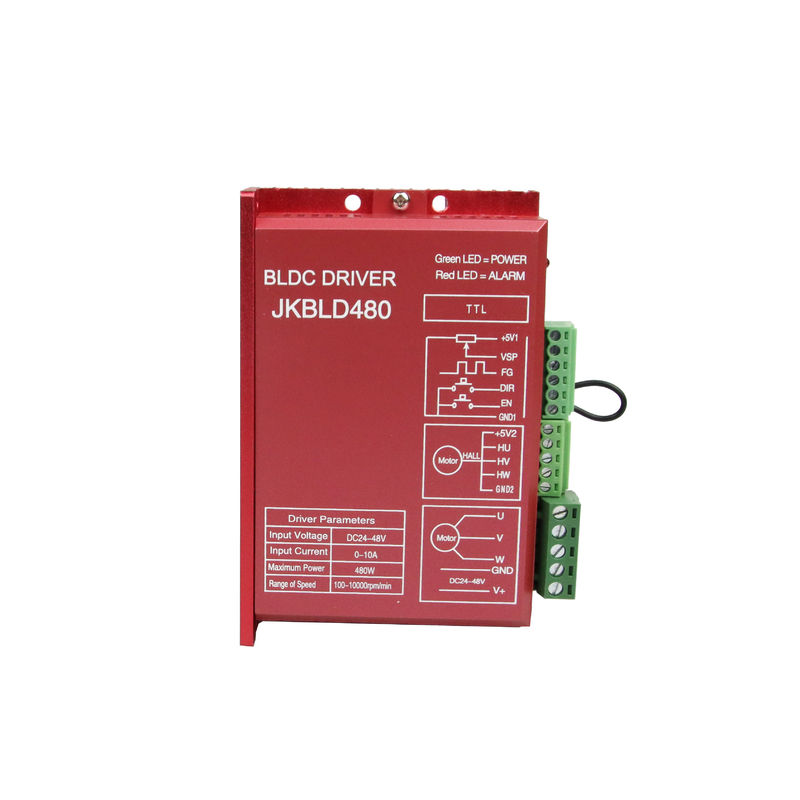

ISO9001 ROHS 12v 3 Phase Brushless Motor Driver Dust Proof 0

Main features:



It can be connected with an external speed display board, showing the speed; it can also be connected with computers to set drive parametersIt has double speed closed current design with low speed torque and smooth operation;

It has high speed output with the maximum speed of 20000rpm / min;

Speed control mode : analog quantity 0-5V,(according to the users’ requirement we can set PWM within 10Hz-300Hz

It has have EN, DIR signal control side;

It can output tachometer pulse;

It has over-current, overvoltage, under voltage , overheating, motor stalling and other protection functions



ISO9001 ROHS 12v 3 Phase Brushless Motor Driver Dust Proof 1
