Model No.: JKBLD750 Supply Voltage: 18VDC - 50VDC
Current: 25A - 45A Weight: 600g
Hall Sensor Voltage: 4.5V-5.5V Motor Speed: 0 - 20000rpm
Nema: Brushless Dc Driver External Potentiometer: 10KΩ
High Light:

750W Brushless DC Motor Driver

,

750W BLDC Driver

,

50VDC nema34 driver

BLDC Driver 750W 18-50VDC 25-45A JKBLD750 for Nema34 BLDC motor



JKBLD750 brushless dc driver is suit the following three-phase sine wave power and 48V DC 750W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.





Description of Brushless Dc driver:

The JKBLD750 BLDC motor drive is a high performance, cost-effective 3phase BLDC motor drive, which can provide power output Max 750VA.The design is based on advanced DSP technology and feature high torque, low noise, low vibration, PID speed loop, PID current loop, over current protection, over load protection and a combined use of manual speed adjustment and automatic speed adjustment.



Connection Definition of Brushless Dc driver:



Mark Definition
DC+/DC- DC Power Input (DC24V~DC48V)
U,V,W Motor Lead Wire
Hu,Hv,Hw Hall Sensor Lead Wire
REF+ Hall Sensor Power Supply +
REF- Hall Sensor Power Supply -
VCC External Potentiometer Power Supply ( Internal Power Supply Only)
SV External Potentiometer ( No Connection When Adjusting Speed With Internal Potentiometer ) or Pulse Rate In                                                                Note
COM Common (Low Level/Ground)
F/R Direction: Low Level/CCW High Level or No Connection/CW                   Note
EN Enable: High Level/Stop Low Level/Run                                                    Note
BRK

Quick Brake: High Level/Stop Low Level/Run                                            Note

SPEED Speed Signal Output
ALARM Alarm Signal Output



Note①: Potentiometer/10KΩ or analog signal DC 0V~+5V (Change internal switch J1/DC0-10V).Turn off the internal potentiometer RV when using an external potentiometer to adjust the motor speed.

Note②:High level/5V (5mA)



Electrical Specifications of Brushless Dc driver:



Parameter Min Rated Max Unit
Motor Hall Sensor Angle 120°/240°
DC Power Input 18 48 50 V
Drive Current Output 0 25 45 A
Suitable Motor Speed 0   20000 rpm
Hall Sensor Voltage 4.5 5 5.5 V
Hall Sensor Current   20   mA
External Potentiometer   10K   Ω



Pictures of Brushless Dc driver:

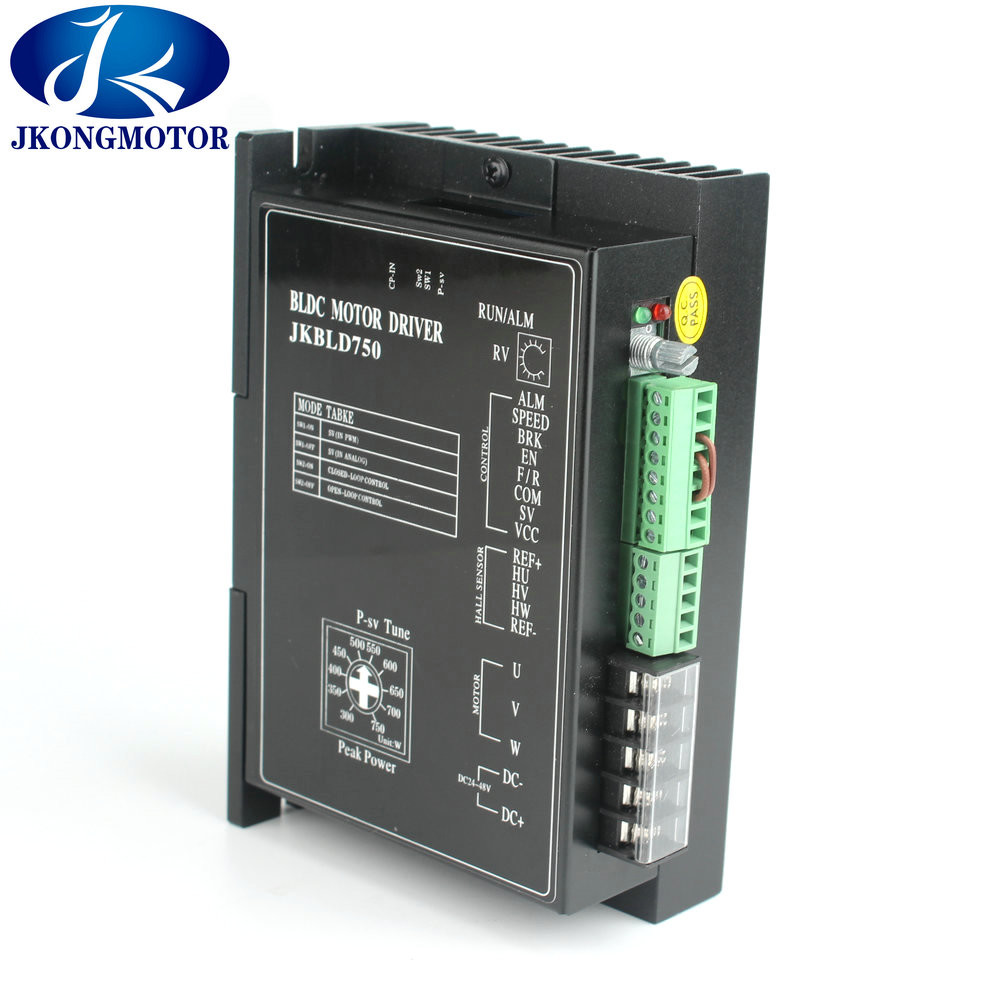

750W 50VDC JKBLD750 BLDC  Brushless DC Motor Driver For Nema34 0



750W 50VDC JKBLD750 BLDC  Brushless DC Motor Driver For Nema34 1

750W 50VDC JKBLD750 BLDC  Brushless DC Motor Driver For Nema34 2

Peak Power Output Setting:
750W 50VDC JKBLD750 BLDC  Brushless DC Motor Driver For Nema34 3
Note: To protect the motor, set the arrow number as the same as the motor nominated power. Whenever overload occurs the drive will turn out to be the protection mode.
