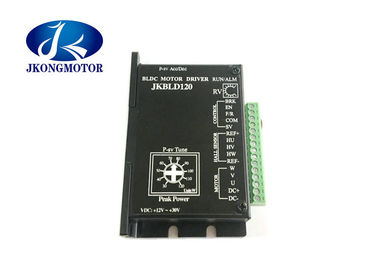

JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A

JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A

  • JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A
  • JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A
JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKBLD120
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: US$17~US$22
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Model No.: JKBLD120 Supply Voltage: 10VDC - 30VDC
Current: 0A - 8A Weight: 280g
Hall Effect Angle: 120°/240° Motor Speed: 0 - 20000rpm
High Light:

bldc motor driver

,

motor driver

JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A



JKBLD120 brushless dc driver is suit the following three-phase sine wave power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.





OVERVEIW:

The model of brushless dc motor drive is suitable for use in power for 125 va and under three-phase brushless dc motor
This product design adopts advanced DSP control technology, with large torque, low noise, low vibration, fast.

Stop-start features, at the same time have the PID current and speed closed loop control, overvoltage, undervoltage, over current, over temperature
Protection function, can realize PWM external input, analog input speed regulating a variety of ways.



Electrical parameters:

 Mark  define
 DC+/DC-  Power supply input (DC12V~DC30V)don’t make mistake for + and -
 U,V,W  Motor leading wires connect thick wires
 Hu,Hv,Hw  Hall signal leading wire connect (thin wires Hu, Hv, Hw)
 REF+  Hall power supply + (for motor hall input +5V)
 REF-  Hall power supply - ( hall ground connect this port)
 VCC  External potentiometer power supply port ( just can use for potentiometer, can't for other external circuits)
 SV  External potentiometer terminal ( See note speed regulation )
 COM  common port ( Low level )
 F/R  Direction: dangling or high level forward, low-level inversion note 1
 EN  Enable: high level/stop low-level/run note 1
 BRK  Fast brake: high level/stop low-level/run note 1



Note 1: F/R and COM disconnect the motor forward, closed for reversal.EN closed with COM for running, disconnect for standby.BRK and COM side closed to run, disconnect for the brake.
When using BRK control, shorter EN received COM port, when using EN control, shorter BRK received COM port.



Speed regulation way (see instructions):

A. the internal potentiometer RV can be used for motor speed adjustment
B. the external potentiometer can be used for motor speed adjustment
C. the external analog input voltage can be used for motor speed adjustment
D. the external PWM input can be used for motor speed adjustment: pulse duty ratio from 10% to 90%
Linear speed adjustment, pulse frequency, 1 k - 10 KHZ, pulse amplitude: 5 v



Wiring note: note that the sequence of wiring UVW three-phase motor and sale of hall signal lines and the connection sequence of the power cord



power parameter setting :

Note: to prevent electric pilot time to super power operation and damage Motor, please according to the above numerical combined with electrical power Properly set.Great changes have taken place when the load and lead to electricity Actual operation power more than setting will go into the drive Protected mode.JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A 0

JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A 1JKBLD120 Nema23 / Nema 17 Motor Driver Three Phase 100W 24VDC 0A-8A 2
