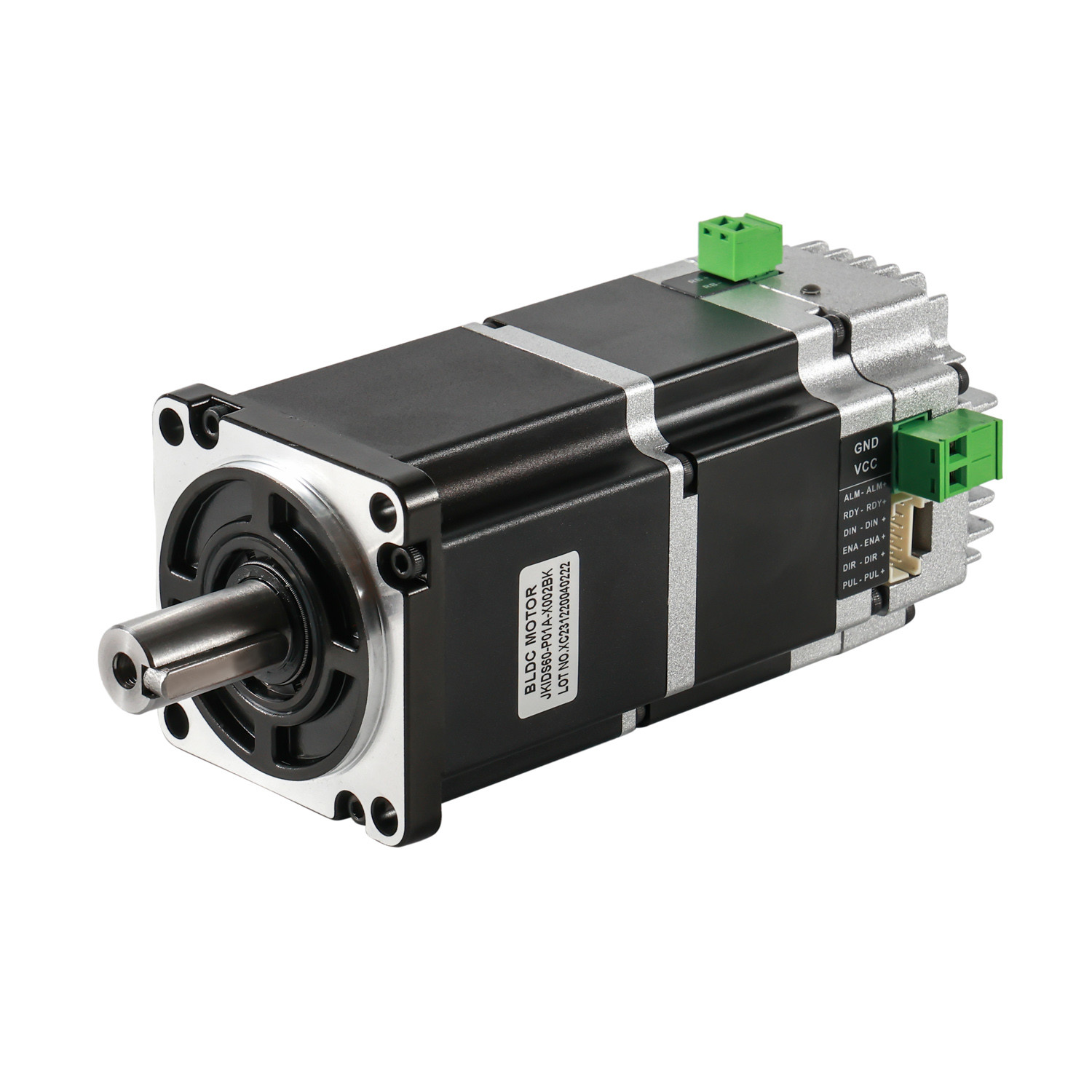

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor

  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
  • Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor
Product Details:
Place of Origin: China
Brand Name: Jkongmotor
Certification: CE, Rohs, Reach, ISO9001, ISO14001
Model Number: Integrated Dc Servo Motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD30-80
Packaging Details: sample with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model: JKIDS60-P01A Power: 200W
Voltage: 24V Rated Current: 12A
Speed: 3000rpm Rated Torque: 0.64Nm
Encoder: 17Bit Motor Length: 94mm
Communication Methods: Pulse / RS485 / Canopen
High Light:

36V Integrated DC Servo Motor

,

24V Integrated DC Servo Motor

,

48V Integrated DC Servo Motor

Jkongmotor 0.64N.m 200W RS485 Canopen Ethercat Integrated Servo Motor with Driver Brushless DC Servo Motor with Gearbox​
Product Description:

A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced
Characteristics of Integrated Dc Servo Motor
1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.



ethercat integrated servo motor

1. Company name abbreviation
2. Product series model, indicating that the motor is an IDS series, referring to the acronym for integrated DC servo
3. Frame number (42/57/60/80), expressed in millimeters by the dimensions of the motor casing and mounting plate
4. Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5. The motor model, such as (01/02/03/04/05/06), represents the model of the motor 6.Encoder type: A represents a 17 bit single turn absolute encoder


Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder

Communication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type

Protection level:
Waterproof type: IP30, IP54, IP65, optional

Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

42mm Integrated Dc Servo Motor:
Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS42-P01A 26 24 1.8 4000 0.0625 61 17bit Pulse RS485 CANopen
JKIDS42-P02A 53 24 3.3 4000 0.125 81 17bit Pulse RS485 CANopen
JKIDS42-P03A 78 24 4.5 4000 0.185 101 17bit Pulse RS485 CANopen
JKIDS42-P04A 78 24 4.5 3000 0.25 120 17bit Pulse RS485 CANopen

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 1

integrated servo motorintegrated servo motor and driveintegrated servo motor with brake

57mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS57-P01A 91 24/36 3.5 3000 0.29 101 17bit pulse RS485 CANopen
JKIDS57-P02A 140 24/36 5.4 3000 0.45 121 17bit pulse RS485 CANopen
JKIDS57-P03A 200 36/48 7.5 3000 0.64 141 17bit pulse RS485 CANopen

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 5

built in servo motorclearpath integrated servo motorjvl integrated servo motor

60mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS60-P01A 200 24 12 3000 0.64 94 17bit pulse RS485 CANopen
JKIDS60-P02A 400 48 11 3000 1.27 112 17bit pulse RS485 CANopen

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 9

ethercat integrated servo motorintegrated dc servo motorintegrated servo motor and controller

80mm Integrated Dc Servo Motor:

Model Power (W) Rated Voltage (VDC) Rated Current (A) Rated Speed (rpm) Rated Torque (N.m) Total height L (mm) Encoder Control method (optional)
JKIDS80-P01A 750 48/72 19/12 3000 2.4 155 17bit pulse RS485 CANopen
JKIDS80-P02A 1000 72 17 3000 3.2 175 17bit pulse RS485 CANopen

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 13

integrated servo motor functionintegrated servo motor for arduinointegrated servo motor and controller

Integrated Servo motor customized:

Professional dc motor manufacture in China

Company Profile:

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 18

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 19

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.


Equipments Show:

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 20

Production Flow:

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 21

Package:

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 22

Certification:

Jkongmotor42 57 60 80mm Brushless DC BLDC Motor 24V 36V 48V Low Power 36W Upto 1000W 0.64nm Integrated DC Servo Motor 23

Tag:

RS485 Integrated Servo Motor,

400W Integrated Servo Motor,

57X57mm Integrated DC Servo Motor
