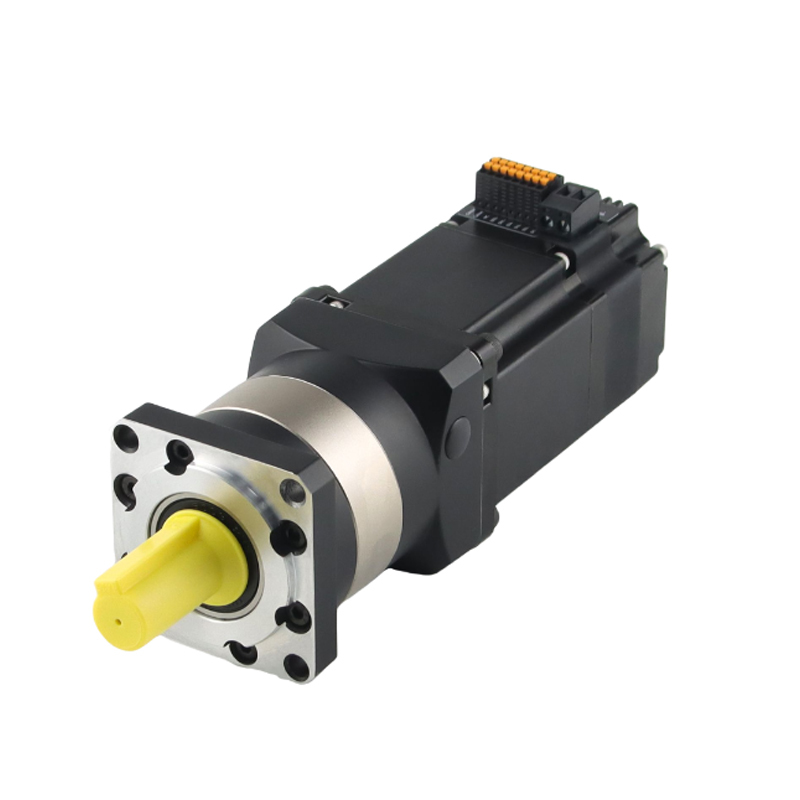

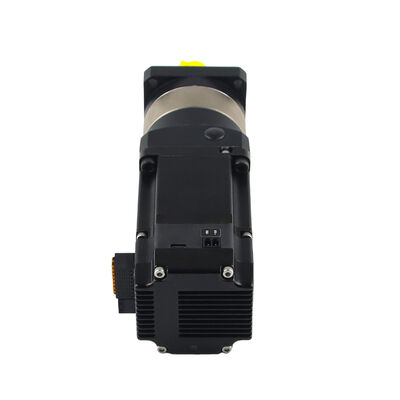

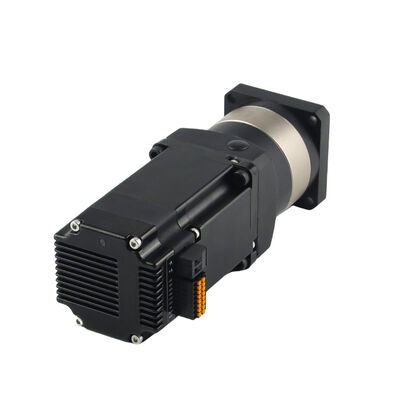

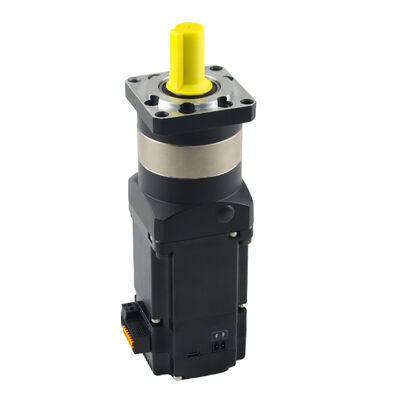

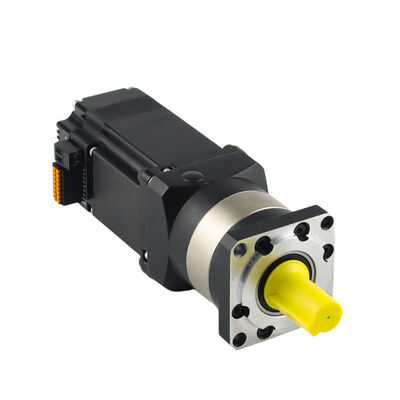

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers

  • Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
  • Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
  • Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
  • Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
  • Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
  • Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers
Product Details:
Place of Origin: China
Brand Name: Jkongmotor
Certification: CE, Rohs, Reach, ISO9001, ISO14001
Model Number: Integrated Dc Servo Motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD30-80
Packaging Details: sample with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Motor Type: Pulse RS485 CANopen Integrated Dc Servo Motor Power: 20W - 750W
Voltage: 24V 48V 72V Rated Current: Customized
Speed: 3000rpm Rated Torque: Customized
Encoder: 17Bit / 15bit / 1000ppr Motor Length: Customized
Communication Methods: Pulse / RS485 / Canopen

Jkongmotor Pulse RS485 Canopen Ethercat Nema 17 23 24 34 IDS42 57 60 80 Series Integrated Servo Motor with Driver Brushless DC Servo Motor with Integrated Built In Driver

Product Description:

A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced

Characteristics of Integrated Dc Servo Motor

1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.



Model naming rules for low voltage integrated dc servo motor

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 0

① Name JK: Changzhou Jkongmotor ⑦ Encoder Type A1: 17bit single turn absolute encoder
② Integrated Dc Motor Series IDP: Integrated Dc Servo Waterproof Type A2: 17bit multi turn absolute encoder
IDC: Integrated Dc Servo Plug Type A3: 15bit single turn absolute encoder
IBP: Integrated BLDC Waterproof Type A4: 15bit multi turn absolute encoder
IBC: Integrated BLDC Plug Type ⑧ Brake (Optional) B1: 24V Brake; B2: 48V Brake
③ Motor Frame 42=42mm ⑨ Shaft Type None: Standard Output Shaft
57=57mm 01: Special Output Shaft
60=60mm ⑩ Leading Wire Type Y: Crimping Shell
80=80mm H: Aviation Plug
86=86mm M:PG Gland
④ Control Type P: Pulse ⑪ Number of Leading Wires Crimping Shell: 3=Power supply + communication + I/O
R: RS485 Crimping Shell: 4=Power supply + 2 x communication + I/O
C: CANopen Aviation Plug: 2=Power supply + communication
⑤ Output Power Options 42: 1=26W; 2=53W; 3=78W Aviation Plug: 4=Power supply + 2 x communication + I/O
57: 1=91W; 2=140W; 3=200W PG Gland: 2=Power supply + communication
60: 1=200W; 2=400W PG Gland: 4=Power supply + 2 x communication + I/O
80: 1=750W; 2=1000W ⑫ Gearbox (Optional) G: Planetary Gearbox
86: 1=220W; 2=315W; 3=440W; 4=565W; 6=785W RG: Right-angle Planetary Gearbox
⑥ Voltage 24=24V; 36=36V; 48=48V; 72=72V WG: Worm Gearbox
⑬ Gear Ratio of the Reducer 03-1:3; 05-1:5; 10-1:10; 20-1:20...



Features:


Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder


Communication method:

1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type


Protection level:

Waterproof type: IP30, IP54, IP65, optional


Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc


IDS42 Series 42mm Nema 17 Pulse RS485 CANopen Integrated Dc Servo Motor:

Series V1 Series Control method (optional) Rated Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm N.m mm /
IDS42-0.0625Nm JKIDS42-P01A Pulse 26 24 1.8 4000 0.0625 61 17bit
JKIDS42-R01A RS485
JKIDS42-C01A CANopen
IDS42-0.125Nm JKIDS42-P02A Pulse 53 24 3.3 4000 0.125 81 17bit
JKIDS42-R02A RS485
JKIDS42-C02A CANopen
IDS42-0.185Nm JKIDS42-P03A Pulse 78 24 4.5 4000 0.185 101 17bit
JKIDS42-R03A RS485
JKIDS42-C03A CANopen
IDS42-0.25N.m JKIDS42-P04A Pulse 78 24 4.5 3000 0.25 120 17bit
JKIDS42-R04A RS485
JKIDS42-C04A CANopen


Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 1

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 2Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 3Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 4

IDS57 Series 57mm Nema 23 Pulse RS485 CANopen Integrated Dc Servo Motor:

Series V1 Series Control method (optional) Rated Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm N.m mm /
IDS57-0.29Nm JKIDS57-P01A Pulse 91 24/36 3.5 3000 0.29 101 17bit
JKIDS57-R01A RS485
JKIDS57-C01A CANopen
IDS57-0.45Nm JKIDS57-P02A Pulse 140 24/36 5.4 3000 0.45 121 17bit
JKIDS57-R02A RS485
JKIDS57-C02A CANopen
IDS57-0.164Nm JKIDS57-P03A Pulse 200 24/36 7.5 3000 0.64 141 17bit
JKIDS57-R03A RS485
JKIDS57-C03A CANopen

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 5

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 6Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 7Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 8

IDC60 Series 60mm Nema 24 Pulse RS485 CANopen Integrated Dc Servo Motor:

Series V1 Series V2 Series Control method (optional) Rated Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm N.m mm /
IDS60-0.63Nm JKIDS60-P01A JKIDS60-P124A1 Pulse 200 24 11.5 3000 0.63 98.3 (121mm with brake) 17bit
JKIDS60-R01A JKIDS60-R124A1 RS485
JKIDS60-C01A JKIDS60-C124A1 CANopen
IDS60-0.63Nm / JKIDS60-P148A1 Pulse 200 48 6.5 3000 1.63 98.3 (121mm with brake) 17bit
JKIDS60-R148A1 RS485
JKIDS60-C148A1 CANopen
IDS60-1.27Nm JKIDS60-P02A JKIDS60-P248A1 Pulse 400 48 11.5 3000 1.27 116.3 (139mm with brake) 17bit
JKIDS60-R02A JKIDS60-R248A1 RS485
JKIDS60-C02A JKIDS60-C248A1 CANopen


Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 9

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 10Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 11Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 12

IDC80 Series 80mm Pulse RS485 CANopen Integrated Dc Servo Motor:

Series V2 Series Control method (optional) Rated Power Rated Voltage Rated Current Rated Speed Rated Torque Total body Length Integrated Encoder
W V A Rpm N.m mm /
IDS80-2.4Nm JKIDC80-P148A1 Pulse 750 48 20 3000 2.4 143.5 (180mm with brake) 17bit
JKIDC80-R148A1 RS485
JKIDC80-C148A1 CANopen

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 13

Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 14Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 15Jkongmotor RS485 CANopen OEM ODM Integrated DC Geared Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 16

Integrated Servo motor customized:
