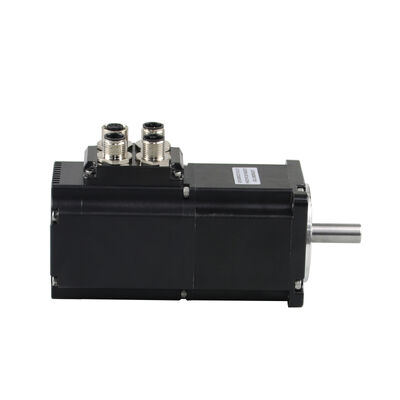

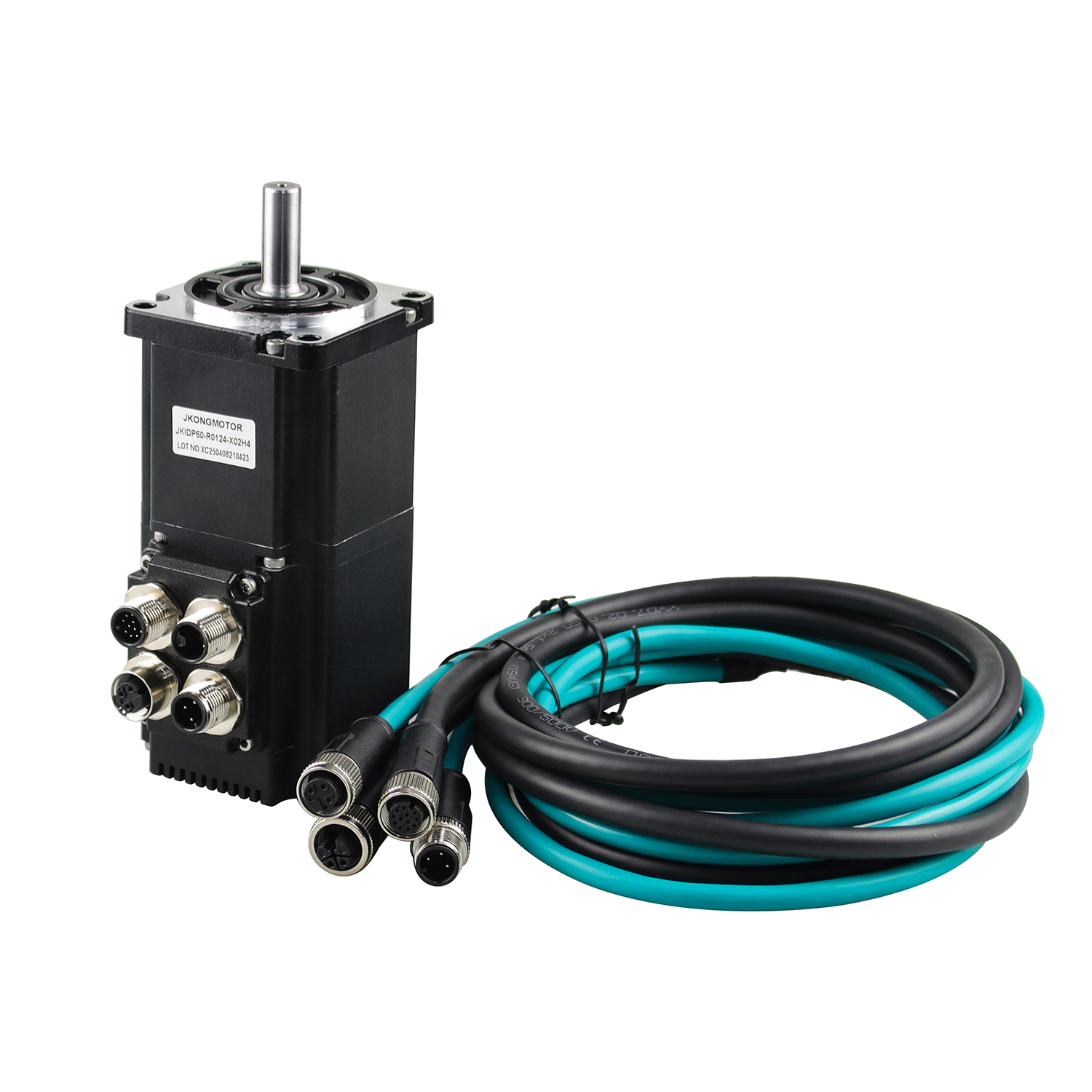

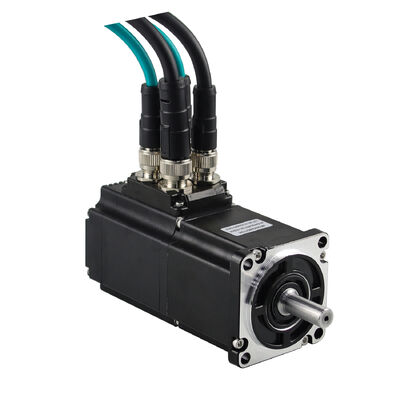

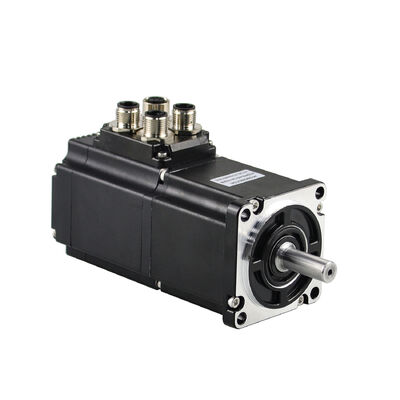

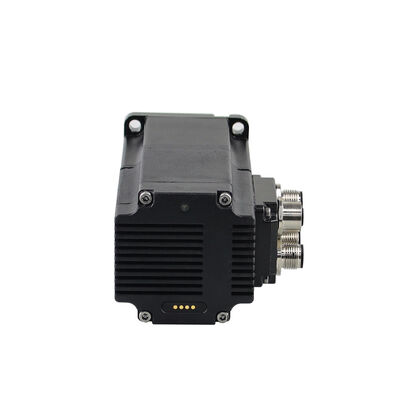

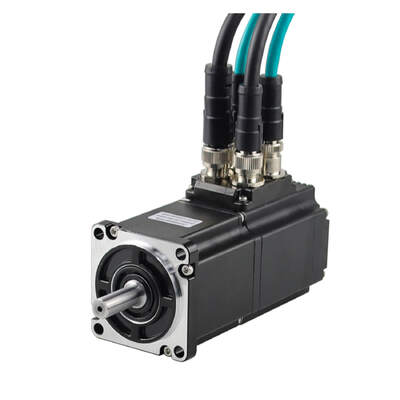

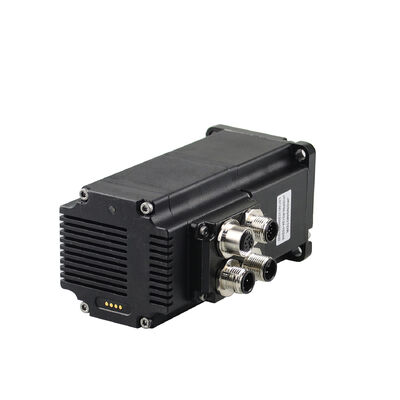

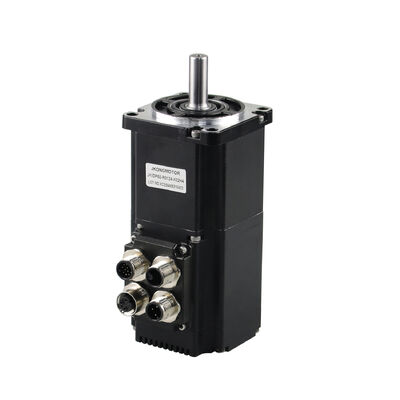

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers

Product Details:

Place of Origin:	China
Brand Name:	Jkongmotor
Certification:	CE, Rohs, Reach, ISO9001, ISO14001
Model Number:	Integrated Dc Servo Motor

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	USD30-80
Packaging Details:	sample with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-35days
Payment Terms:	T/T, Western Union, paypal, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Motor Type:	Pulse RS485 CANopen Integrated Dc Servo Motor	Power:	20W - 750W
Voltage:	24V 48V 72V	Rated Current:	Customized
Speed:	3000rpm	Rated Torque:	Customized
Encoder:	17Bit / 15bit / 1000ppr	Motor Length:	Customized
Communication Methods:	Pulse / RS485 / Canopen

Jkongmotor Pulse RS485 Canopen Ethercat Nema 17 23 24 34 IDS42 57 60 80 Series Integrated Servo Motor with Driver Brushless DC Servo Motor with Integrated Built In Driver

Product Description:

A motor with a controller or a driver, and an encoder, is an integrated motor. Integrated motors save wiring between the motor, controller and the control cabinet. By minimizing the machine complexity and installation efforts, the overall system cost is reduced

Characteristics of Integrated Dc Servo Motor

1. Compact: Integrated design of integrated drive motor Easy installation, small footprint, and simple wiring.

2. Multiple motion control modes: Supports the CiA402 standard protocol, including Relative position mode, absolute position mode, speed Mode, torque mode, and origin regression mode.

3. low-power consumption: Adopting low internal resistance MOS to ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively extending the service life of

the motor.

4. control mode: Supports pulse/RS485/CANopen.

5. Multi segment position speed function: With multi segment position function and multi segment speed function.

6. Safe and reliable: Driver built-in in place and alarm output signal Convenient for upper computer detection and control built-in Multiple alarm functions such as over differential, over undervoltage, and over temperature Can ensure the safe operation of processing equipment.

Model naming rules for low voltage integrated dc servo motor

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 0

① Name	JK: Changzhou Jkongmotor	⑦ Encoder Type	A1: 17bit single turn absolute encoder
② Integrated Dc Motor Series	IDP: Integrated Dc Servo Waterproof Type		A2: 17bit multi turn absolute encoder
	IDC: Integrated Dc Servo Plug Type		A3: 15bit single turn absolute encoder
	IBP: Integrated BLDC Waterproof Type		A4: 15bit multi turn absolute encoder
	IBC: Integrated BLDC Plug Type	⑧ Brake (Optional)	B1: 24V Brake; B2: 48V Brake
③ Motor Frame	42=42mm	⑨ Shaft Type	None: Standard Output Shaft
	57=57mm	⑨ Shaft Type	01: Special Output Shaft
	60=60mm	⑩ Leading Wire Type	Y: Crimping Shell
	80=80mm		H: Aviation Plug
	86=86mm		M:PG Gland
④ Control Type	P: Pulse	⑪ Number of Leading Wires	Crimping Shell: 3=Power supply + communication + I/O
	R: RS485		Crimping Shell: 4=Power supply + 2 x communication + I/O
	C: CANopen		Aviation Plug: 2=Power supply + communication
⑤ Output Power Options	42: 1=26W; 2=53W; 3=78W		Aviation Plug: 4=Power supply + 2 x communication + I/O
	57: 1=91W; 2=140W; 3=200W		PG Gland: 2=Power supply + communication
	60: 1=200W; 2=400W		PG Gland: 4=Power supply + 2 x communication + I/O
	80: 1=750W; 2=1000W	⑫ Gearbox (Optional)	G: Planetary Gearbox
	86: 1=220W; 2=315W; 3=440W; 4=565W; 6=785W		RG: Right-angle Planetary Gearbox
⑥ Voltage	24=24V; 36=36V; 48=48V; 72=72V		WG: Worm Gearbox
⑬ Gear Ratio of the Reducer	03-1:3; 05-1:5; 10-1:10; 20-1:20...

Features:

Jkongmotor has a wide range of micro motor production lines in the industry, including Stepper Motor, DC Servo Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.

1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder

Communication method:

1. Pulse type

2. RS485 MOdbus RTU network type

3. CANopen network type

Protection level:

Waterproof type: IP30, IP54, IP65, optional

Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

IDS42 Series 42mm Nema 17 Pulse RS485 CANopen Integrated Dc Servo Motor:

Series	V1 Series	Control method (optional)	Rated Power	Rated Voltage	Rated Current	Rated Speed	Rated Torque	Total body Length	Integrated Encoder
			W	V	A	Rpm	N.m	mm	/
IDS42-0.0625Nm	JKIDS42-P01A	Pulse	26	24	1.8	4000	0.0625	61	17bit
	JKIDS42-R01A	RS485
	JKIDS42-C01A	CANopen
IDS42-0.125Nm	JKIDS42-P02A	Pulse	53	24	3.3	4000	0.125	81	17bit
	JKIDS42-R02A	RS485
	JKIDS42-C02A	CANopen
IDS42-0.185Nm	JKIDS42-P03A	Pulse	78	24	4.5	4000	0.185	101	17bit
	JKIDS42-R03A	RS485
	JKIDS42-C03A	CANopen
IDS42-0.25N.m	JKIDS42-P04A	Pulse	78	24	4.5	3000	0.25	120	17bit
	JKIDS42-R04A	RS485
	JKIDS42-C04A	CANopen

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 1

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 2

IDS57 Series 57mm Nema 23 Pulse RS485 CANopen Integrated Dc Servo Motor:

Series	V1 Series	Control method (optional)	Rated Power	Rated Voltage	Rated Current	Rated Speed	Rated Torque	Total body Length	Integrated Encoder
			W	V	A	Rpm	N.m	mm	/
IDS57-0.29Nm	JKIDS57-P01A	Pulse	91	24/36	3.5	3000	0.29	101	17bit
	JKIDS57-R01A	RS485
	JKIDS57-C01A	CANopen
IDS57-0.45Nm	JKIDS57-P02A	Pulse	140	24/36	5.4	3000	0.45	121	17bit
	JKIDS57-R02A	RS485
	JKIDS57-C02A	CANopen
IDS57-0.164Nm	JKIDS57-P03A	Pulse	200	24/36	7.5	3000	0.64	141	17bit
	JKIDS57-R03A	RS485
	JKIDS57-C03A	CANopen

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 5

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 6

IDC60 Series 60mm Nema 24 Pulse RS485 CANopen Integrated Dc Servo Motor:

Series	V1 Series	V2 Series	Control method (optional)	Rated Power	Rated Voltage	Rated Current	Rated Speed	Rated Torque	Total body Length	Integrated Encoder
				W	V	A	Rpm	N.m	mm	/
IDS60-0.63Nm	JKIDS60-P01A	JKIDS60-P124A1	Pulse	200	24	11.5	3000	0.63	98.3 (121mm with brake)	17bit
	JKIDS60-R01A	JKIDS60-R124A1	RS485
	JKIDS60-C01A	JKIDS60-C124A1	CANopen
IDS60-0.63Nm	/	JKIDS60-P148A1	Pulse	200	48	6.5	3000	1.63	98.3 (121mm with brake)	17bit
		JKIDS60-R148A1	RS485
		JKIDS60-C148A1	CANopen
IDS60-1.27Nm	JKIDS60-P02A	JKIDS60-P248A1	Pulse	400	48	11.5	3000	1.27	116.3 (139mm with brake)	17bit
	JKIDS60-R02A	JKIDS60-R248A1	RS485
	JKIDS60-C02A	JKIDS60-C248A1	CANopen

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 9

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 10

IDC80 Series 80mm Pulse RS485 CANopen Integrated Dc Servo Motor:

Series	V2 Series	Control method (optional)	Rated Power	Rated Voltage	Rated Current	Rated Speed	Rated Torque	Total body Length	Integrated Encoder
			W	V	A	Rpm	N.m	mm	/
IDS80-2.4Nm	JKIDC80-P148A1	Pulse	750	48	20	3000	2.4	143.5 (180mm with brake)	17bit
	JKIDC80-R148A1	RS485
	JKIDC80-C148A1	CANopen

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 13

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 14

Integrated Servo motor customized:

Jkongmotor Waterproof IP65 RS485 CANopen OEM ODM Integrated DC Servo Motor Nema 17 23 24 34 Brushless Bldc Servo Motor with Integrated Built in Drivers 17
