| Place of Origin: | China |
| Brand Name: | Jkongmotor |
| Certification: | CE, Rohs, Reach, ISO9001, ISO14001 |
| Model Number: | Integrated Dc Servo Motor |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD30-80 |
| Packaging Details: | sample with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-35days |
| Payment Terms: | T/T, Western Union, paypal, L/C |
| Supply Ability: | 100000pcs/month |
| Model: | Integrated Servo Motor | Key: | Integrated Servo Motor And Drive |
|---|---|---|---|
| Keyword: | Integrated Servo Motor With Brake | Keywords: | Built In Servo Motor |
| Product: | Ethercat Integrated Servo Motor | ||

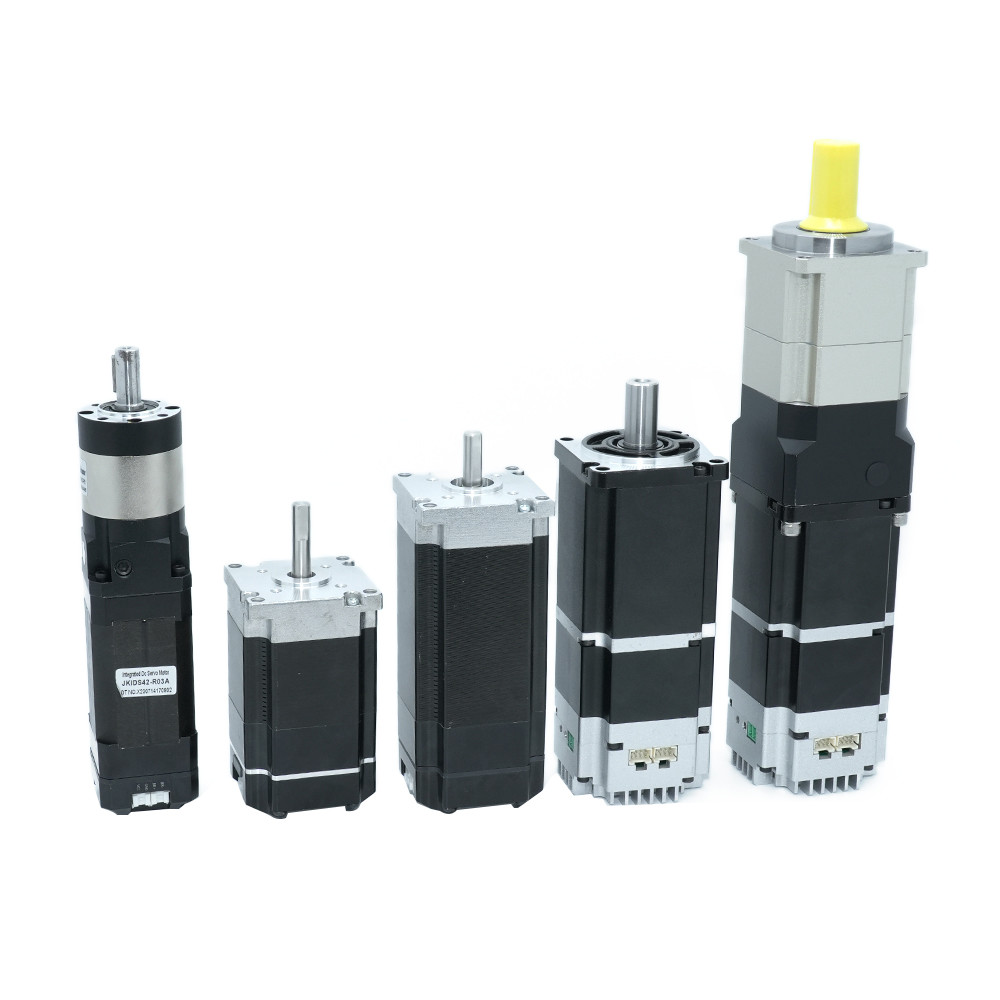

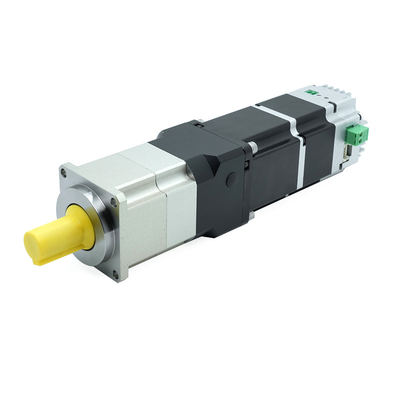

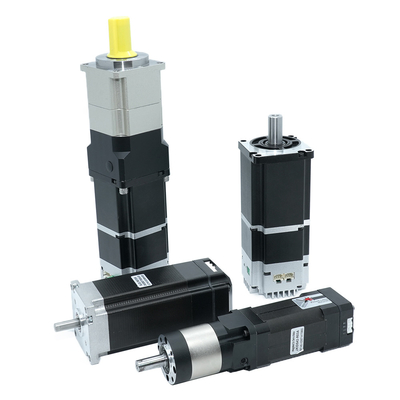

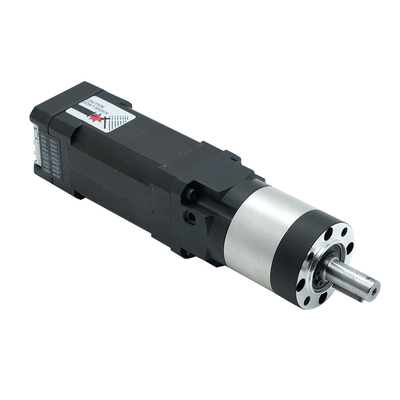

| High Light: | Pulse RS485 Integrated Servo Motor,3000 Rpm Integrated Servo Motor,Gearbox Fan Brake Integrated Servo Motor |
||
1. Company name abbreviation
2. Product series model, indicating that the motor is an IDS series, referring to the acronym for integrated DC servo
3. Frame number (42/57/60/80), expressed in millimeters by the dimensions of the motor casing and mounting plate
4. Control method optional (P/R/C) P represents pulse, R represents RS485, and C represents CANopen bus
5. The motor model, such as (01/02/03/04/05/06), represents the model of the motor 6.Encoder type: A represents a 17 bit single turn absolute encoder
| Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Total height L (mm) | Encoder | Control method (optional) | ||
| JKIDS42-P01A | 26 | 24 | 1.8 | 4000 | 0.0625 | 61 | 17bit | Pulse | RS485 | CANopen |
| JKIDS42-P02A | 53 | 24 | 3.3 | 4000 | 0.125 | 81 | 17bit | Pulse | RS485 | CANopen |
| JKIDS42-P03A | 78 | 24 | 4.5 | 4000 | 0.185 | 101 | 17bit | Pulse | RS485 | CANopen |
| JKIDS42-P04A | 78 | 24 | 4.5 | 3000 | 0.25 | 120 | 17bit | Pulse | RS485 | CANopen |
57mm Integrated Dc Servo Motor:
| Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Total height L (mm) | Encoder | Control method (optional) | ||
| JKIDS57-P01A | 91 | 24/36 | 3.5 | 3000 | 0.29 | 101 | 17bit | pulse | RS485 | CANopen |
| JKIDS57-P02A | 140 | 24/36 | 5.4 | 3000 | 0.45 | 121 | 17bit | pulse | RS485 | CANopen |
| JKIDS57-P03A | 200 | 36/48 | 7.5 | 3000 | 0.64 | 141 | 17bit | pulse | RS485 | CANopen |
60mm Integrated Dc Servo Motor:
| Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Total height L (mm) | Encoder | Control method (optional) | ||
| JKIDS60-P01A | 200 | 24 | 12 | 3000 | 0.64 | 94 | 17bit | pulse | RS485 | CANopen |
| JKIDS60-P02A | 400 | 48 | 11 | 3000 | 1.27 | 112 | 17bit | pulse | RS485 | CANopen |
80mm Integrated Dc Servo Motor:
| Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Total height L (mm) | Encoder | Control method (optional) | ||
| JKIDS80-P01A | 750 | 48/72 | 19/12 | 3000 | 2.4 | 155 | 17bit | pulse | RS485 | CANopen |
| JKIDS80-P02A | 1000 | 72 | 17 | 3000 | 3.2 | 175 | 17bit | pulse | RS485 | CANopen |
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
