| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |

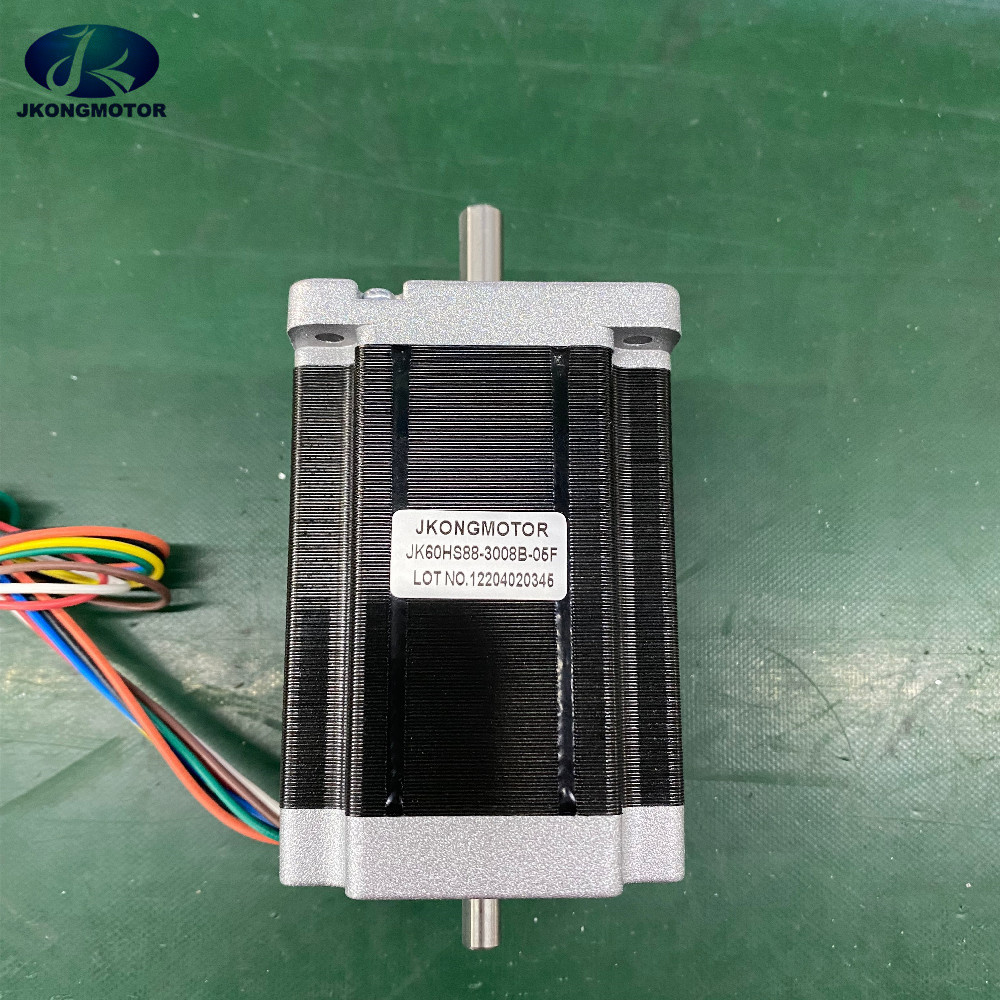

| Model Number: | JK60HS88-3008B |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Type: | Nema24 Stepper Motor | Holding Torque: | 3N.m |
|---|---|---|---|
| Stepper Angle: | 1.8 Dregee | Motor Diameter: | 60mm |
| Phase: | 2 | Motor Length: | 88mm |
| Current: | 3.0A | Shaft Diameter: | 8mm, 6.35mm |
| Resistance: | 1.5Ω | Shaft Length: | 24mm,15mm |
| Inductance: | 6.8mH | Usage: | CNC |
| High Light: | 3Nm Hybrid Stepper Motor,dual shaft Hybrid Stepper Motor,60mm Nema 34 Stepper Motor |
||

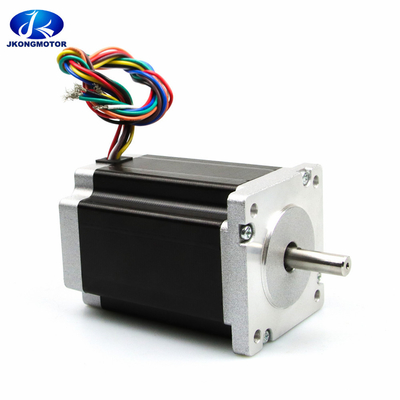

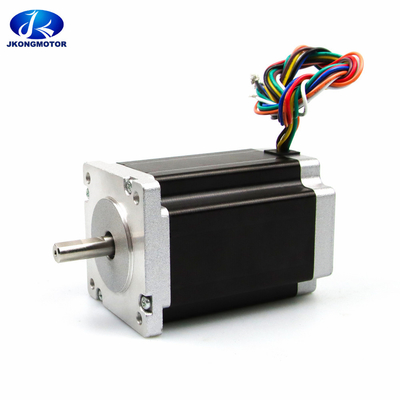

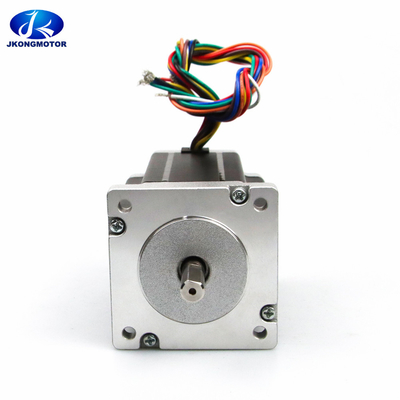

1) Product Description and images
Stepper motors are mainly used in industry, aerospace, robotics, precision measurement and other fields, such as photoelectric theodolite, communication and radar. The wide application of subdivision drive technology makes the phase number of the motor not limited by the step angle, which brings convenience to product design.
At present, in the subdivision drive technology of the stepping motor, chopper constant current drive, instrument pulse width modulation drive and current vector constant amplitude uniform rotation drive control are adopted, which greatly improves the operation accuracy of the stepping motor and makes the stepping motor develop towards high speed and precision in the medium and small power application fields.
| Genaral Specification: | ||||||||||
| Item | Specifications | |||||||||
| Step Angle | 1.8° | |||||||||
| Temperature Rise | 80℃max | |||||||||
| Ambient Temperature | -20℃~+50℃ | |||||||||
| Insulation Resistance | 100 MΩ Min. ,500VDC | |||||||||
| Dielectric Strength: | 500VAC for 1minute | |||||||||
| Shaft Radial Play | 0.02Max. (450g-load) | |||||||||
| Shaft Axial Play | 0.08Max. (450g-load) | |||||||||
| Max. radial force | 75N (20mm from the flange) | |||||||||
| Max. axial force | 15N | |||||||||
| Electrical Specifications: | ||||||||||
| Model No. | Step Angle | Motor Length | Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Weight |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg | |
| JK60HS56-2008 | Unipolar | 56 | 2 | 1.8 | 3 | 1.17 | 8 | 700 | 300 | 0.77 |
| Parallel | 2.8 | 0.9 | 3.6 | 1.65 | ||||||
| Series | 1.4 | 3.6 | 14.4 | 1.65 | ||||||
| JK60HS67-2008 | Unipolar | 67 | 2 | 2.4 | 4.6 | 1.5 | 8 | 900 | 570 | 1.2 |
| Parallel | 2.8 | 1.2 | 4.6 | 2.1 | ||||||
| Series | 1.4 | 4.8 | 18.4 | 2.1 | ||||||
| JK60HS88-2008 | Unipolar | 88 | 2 | 3 | 6.8 | 2.2 | 8 | 1000 | 840 | 1.4 |
| Parallel | 2.8 | 1.5 | 6.8 | 3.1 | ||||||
| Series | 1.4 | 6 | 27.2 | 3.1 | ||||||
| JK60HS100-2008 | Unipolar | 100 | 2 | 3.2 | 6.4 | 2.8 | 8 | 1100 | 980 | 1.7 |
| Parallel | 2.8 | 1.6 | 6.4 | 4 | ||||||
| Series | 1.4 | 6.4 | 25.6 | 4 | ||||||
| JK60HS111-2008 | Unipolar | 111 | 2 | 4.4 | 8.3 | 3.2 | 8 | 1200 | 1120 | 1.9 |
| Parallel | 2.8 | 2.2 | 8.3 | 4.5 | ||||||
| Series | 1.4 | 8.8 | 33.2 | 4.5 | ||||||
| We provide customized service to add gearbox, encoder, brake and integrated driver. | ||||||||||
3) Product Drawing
| Stepper Motor Series | |||||
| Motor series | Phase No. | Step angle | Motor size | Motor length | Holding torque |
| Nema 8 | 2 phase | 1.8 degree | 20x20mm | 30~42mm | 180~300g.cm |
| Nema 11 | 2 phase | 1.8 degree | 28x28mm | 32~51mm | 430~1200g.cm |
| Nema 14 | 2 phase | 1.8 degree | 35x35mm | 27~42mm | 1000~2000g.cm |
| Nema 16 | 2 phase | 1.8 degree | 39x39mm | 20~44mm | 650~2800g.cm |
| Nema 17 | 2 phase | 1.8 degree | 42x42mm | 25~60mm | 1.5~7.3kg.cm |
| Nema 23 | 2 phase | 1.8 degree | 57x57mm | 41~112mm | 0.39~3.1N.m |
| Nema 24 | 2 phase | 1.8 degree | 60x60mm | 56~111mm | 1.17~4.5N.m |
| Nema 34 | 2 phase | 1.8 degree | 86x86mm | 67~155mm | 3.4~12.2N.m |
| Nema 42 | 2 phase | 1.8 degree | 110x110mm | 99~201mm | 11.2~28N.m |
| Nema 52 | 2 phase | 1.8 degree | 130x130mm | 173~285mm | 13.3~22.5N.m |
