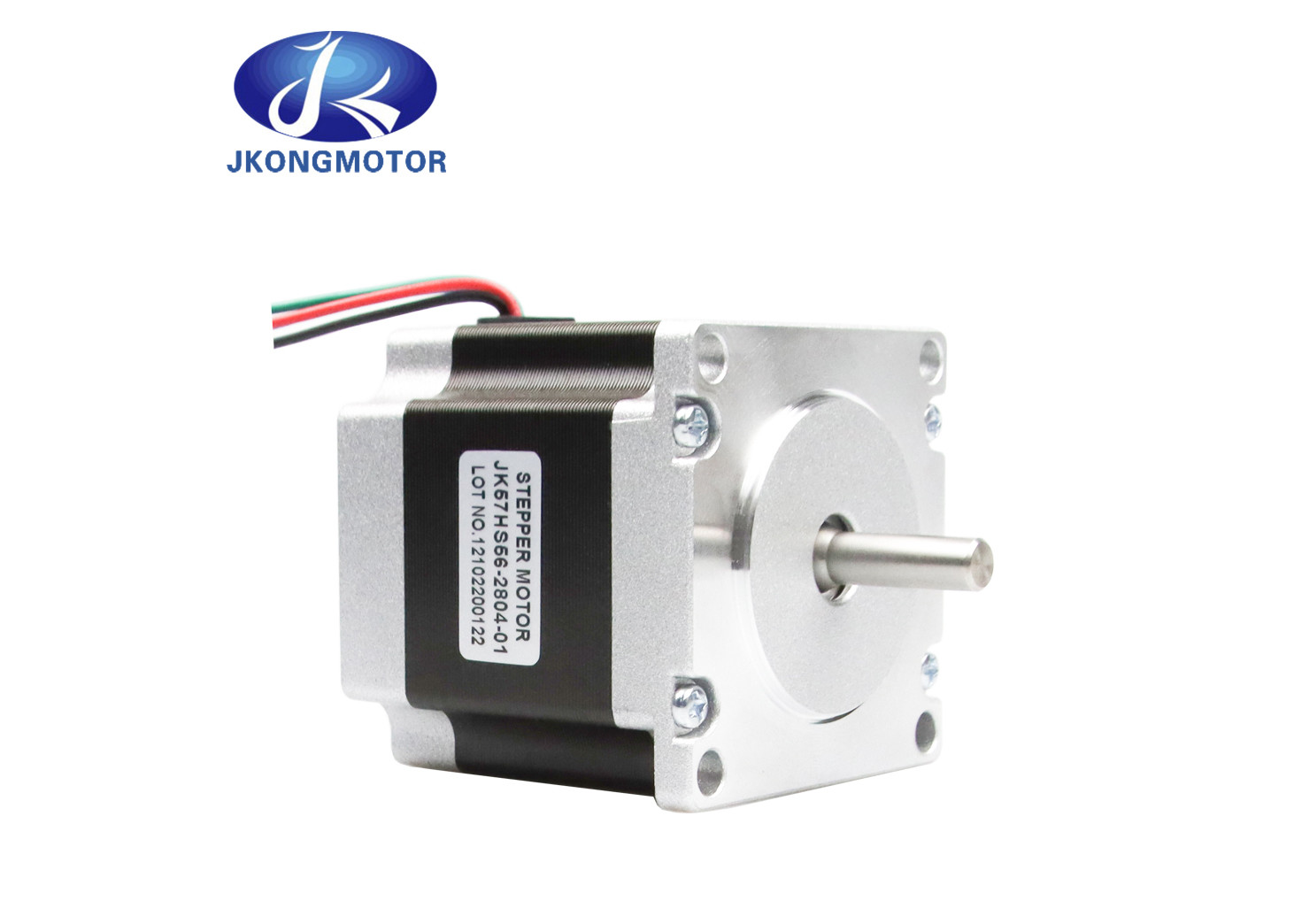

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer
video
Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS, ISO9001
Model Number: JK57HS56-2804-01
Payment & Shipping Terms:
Minimum Order Quantity: 3 - 100 Piece/Pieces
Price: US $ 8.2 - 10.5 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Name: Nema23 Stepper Motor Type: Bipolar Stepper Motor
Step Angle(degrees): 1.8 Degree Holding Torque: 1.2N.m
Current / Phase: 2.8A Shaft: Keyway
Voltage: 2.5v Inductance: 2.5mh
Driver: JK5056S/DM542/DM556 Application: 3d Printer
High Light:

electric stepper motor

,

nema stepper motor

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer



Stepper motors are used in industrial and commercial settings. In fact, they’re often favored due to their low cost, high reliability, and high torque

capabilities at low speed. They’re simple, rugged mechanisms that can function in almost any environment, no matter how rough.



Product Description of hybrid stepper motor:



Step Accuracy ------------------------------ ±5%
Resistance Accuracy ----------------------- ±10%
Inductance Accuracy ---------------------- ±20%
Temperature Rise -------------------------- 80°C MAX.
Ambient Temperature Range ------------- -20°C~ +50°C
Storage Temperature Range ------------- -30°C~ +60°C
Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
Dielectric Strength ------------------------- 500V AC 1min
Radial Play --------------------------------- 0.02mm MAX. (450g Load)
End Play ------------------------------------ 0.08mm MAX. (450g Load)
Max. radial force --------------------------- 75N
Max. axial force ---------------------------- 15N


Model Number: Nema23 stepper motor
Model Name: JK57HS56
Phase: 2
Type: Hybrid
Holding Torque: 0.9N.m~ 1.2N.m
Current / Phase: 2A~ 2.8A
Motor length: 56mm
Leads: 4-leads or 6-leads or 8-leads
Detet Torque: 350g.cm
Rotor Inertia: 280g.cm2
Weight: 0.68kg


Model Number: nema23 stepper motor
Phase: 2
Type: Hybrid
Holding Torque: 0.48N.m~3.1N.m
Current / Phase: 1A~4.2A
Motor length: 41mm~112mm
Leads: 4-leads or 6-leads or 8-leads
Detet Torque: 250g.cm~1200g.cm
Rotor Inertia: 150g.cm2~800g.cm2
Weight: 0.47kg~1.4kg





Electrical specifications of 2phase step motor:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4



Drawing of 57HS56 stepper motor:

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 0

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 1

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 2

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 3

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 4

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 5

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 6

Nema23 Bipolar 2 Phase 1.2N.m 2.8A Hybrid Stepper Motor For 3d Printer 7
