| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK42HS48-1684 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Type: | Nema17 Stepper Motor | Holding Torque: | 5kg.cm / 70 Oz.in |
|---|---|---|---|
| Stepper Angle: | 1.8 Dregee | Motor Diameter: | 42mm |
| Phase: | 2 | Motor Length: | 48mm |
| Current: | 1.68A | Shaft Diameter: | 5mm |
| Resistance: | 1.65Ω | Shaft Length: | 24mm |
| Inductance: | 2.8mH | Usage: | 3D Printers |
| High Light: | 42mm hybrid Stepper Motor,Nema 17 hybrid Stepper Motor,Nema 17 3D printers Motor |
||

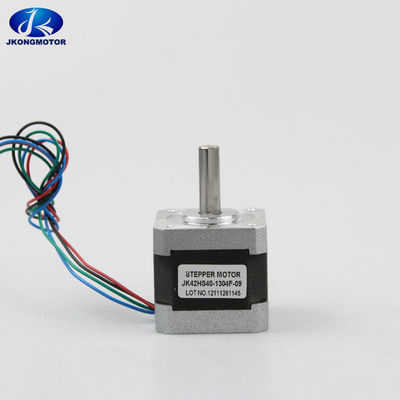

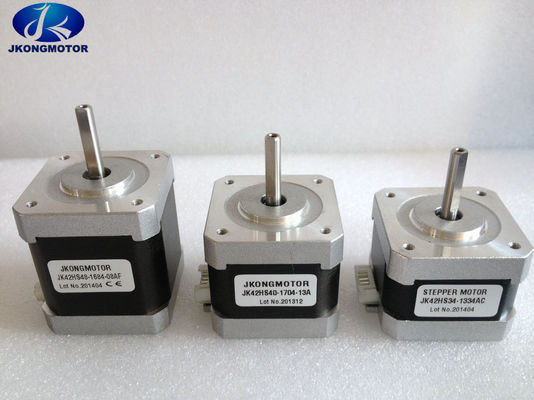

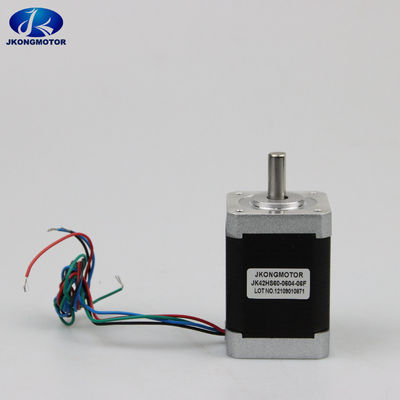

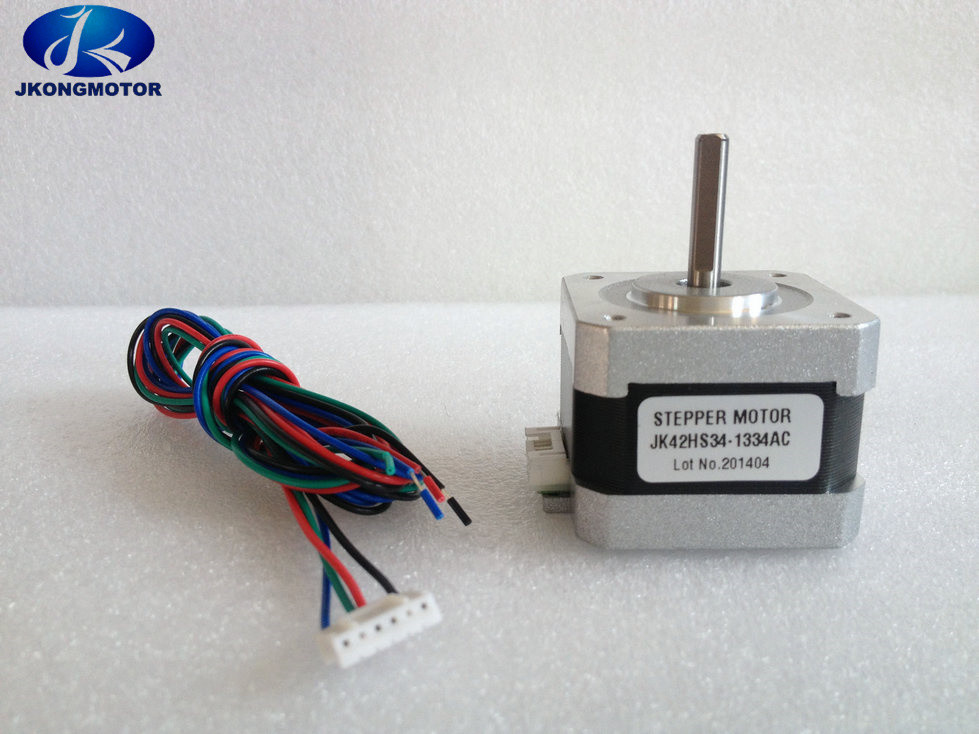

1) Product Description and images
There are many structural forms and classification methods of stepper motors, which are generally divided into three types according to the excitation mode: reluctance type, permanent magnet type and mixed magnet type; According to the number of phases, it can be divided into single-phase, two-phase, three-phase and multi equal forms.
The running performance of stepping motor is closely related to the control mode. From the perspective of its control mode, it can be divided into the following three categories: open-loop control system, closed-loop control system and semi closed-loop control system. Semi closed loop control system is generally classified as open loop or closed loop system in practical application.
| Genaral Specification: | ||||||||||
| Item | Specifications | |||||||||
| Step Angle | 1.8° | |||||||||
| Temperature Rise | 80℃max | |||||||||
| Ambient Temperature | -20℃~+50℃ | |||||||||
| Insulation Resistance | 100 MΩ Min. ,500VDC | |||||||||
| Dielectric Strength: | 500VAC for 1minute | |||||||||
| Shaft Radial Play | 0.02Max. (450g-load) | |||||||||
| Shaft Axial Play | 0.08Max. (450g-load) | |||||||||
| Max. radial force | 28N (20mm from the flange) | |||||||||
| Max. axial force | 10N | |||||||||
| Electrical Specifications: | ||||||||||
| Model No. | Step Angle | Motor Length | Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Weight |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg | |
| JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | 0.15 |
| JK42HS28-0504 | 1.8 | 28 | 0.5 | 20 | 21 | 1.5 | 4 | 85 | 24 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.6 | 4 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 4.2 | 4 | 150 | 54 | 0.28 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 150 | 54 | 0.28 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.1 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 5.0 | 4 | 260 | 68 | 0.35 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS60-0406 | 1.8 | 60 | 0.4 | 30 | 39 | 6.5 | 6 | 280 | 102 | 0.5 |
| JK42HS60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.5 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | 0.5 |
| We provide customized service to add gearbox, encoder, brake and integrated driver. | ||||||||||
3) Product Drawing
| Stepper Motor Series | |||||
| Motor series | Phase No. | Step angle | Motor size | Motor length | Holding torque |
| Nema 8 | 2 phase | 1.8 degree | 20x20mm | 30~42mm | 180~300g.cm |
| Nema 11 | 2 phase | 1.8 degree | 28x28mm | 32~51mm | 430~1200g.cm |
| Nema 14 | 2 phase | 1.8 degree | 35x35mm | 27~42mm | 1000~2000g.cm |
| Nema 16 | 2 phase | 1.8 degree | 39x39mm | 20~44mm | 650~2800g.cm |
| Nema 17 | 2 phase | 1.8 degree | 42x42mm | 25~60mm | 1.5~7.3kg.cm |
| Nema 23 | 2 phase | 1.8 degree | 57x57mm | 41~112mm | 0.39~3.1N.m |
| Nema 24 | 2 phase | 1.8 degree | 60x60mm | 56~111mm | 1.17~4.5N.m |
| Nema 34 | 2 phase | 1.8 degree | 86x86mm | 67~155mm | 3.4~12.2N.m |
| Nema 42 | 2 phase | 1.8 degree | 110x110mm | 99~201mm | 11.2~28N.m |
| Nema 52 | 2 phase | 1.8 degree | 130x130mm | 173~285mm | 13.3~22.5N.m |
