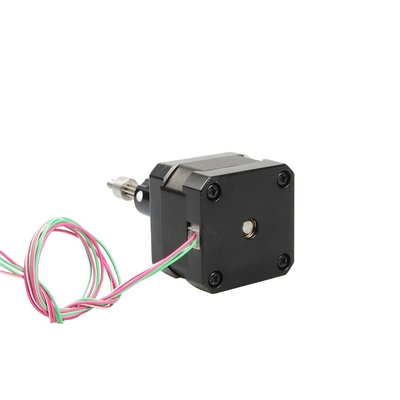

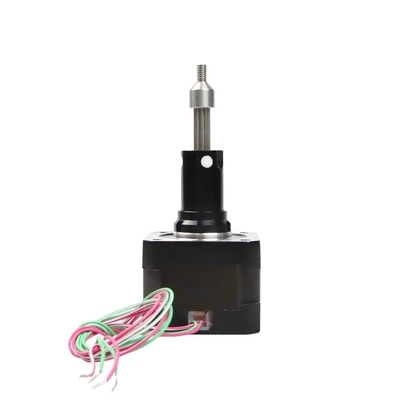

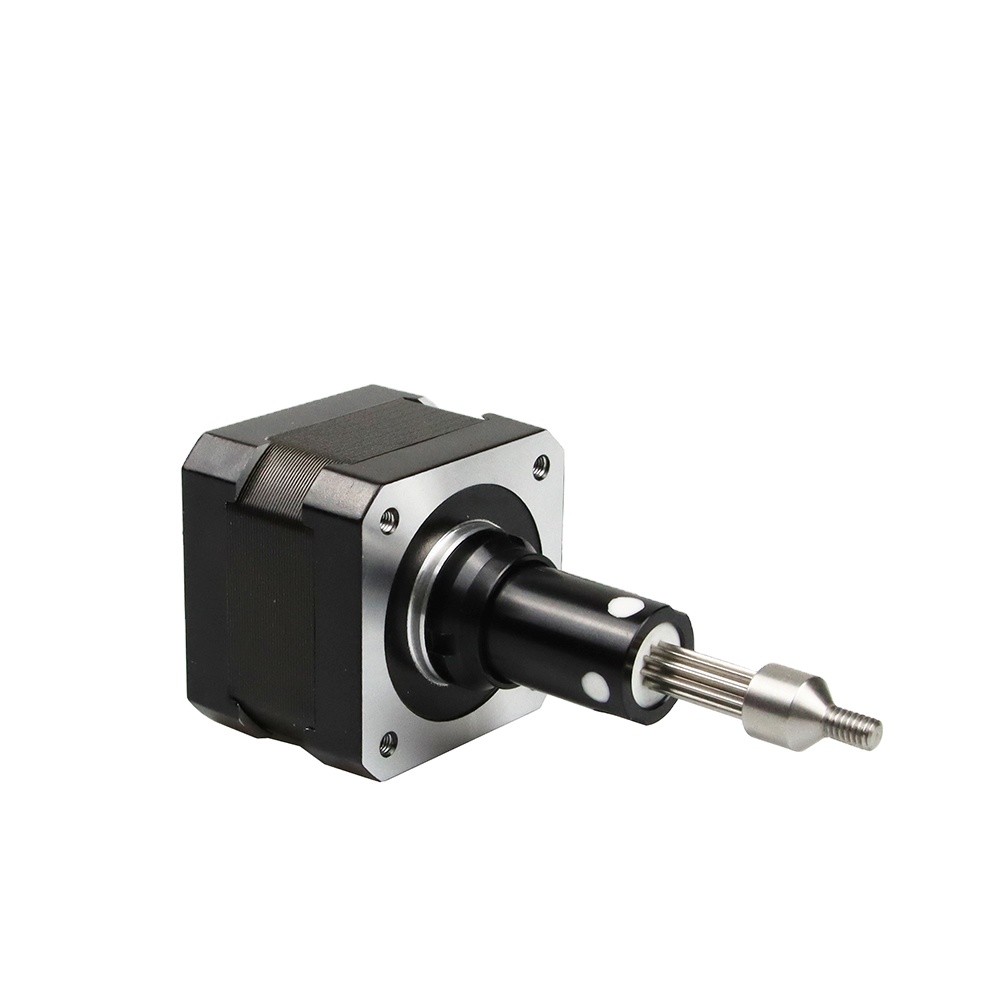

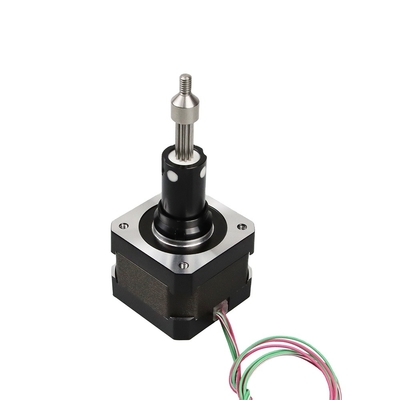

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator
video
Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK28HS51-0674-17SK5
Payment & Shipping Terms:
Minimum Order Quantity: 3PCS~1000PCS
Price: US$55~US$78
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description

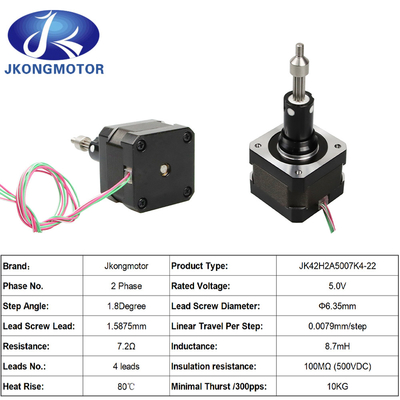

Product Type: Nema 17 Captive Linear Actuators Model Name: JK42H2A5007K4-22
Phase No: 2 Phase Rated Voltage: 5.0V
Current: 0.7A Resistance: 7.2Ω
Inductance: 8.7mH Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm Linear Travel Per Step: 0.0079mm/step
Leads No.: 4 Leads Minimal Thurst /300pps: 10KG
High Light:

Nema17 Lead Screw Hybrid Stepper Motor

,

1.8Degree Electric Hybrid Stepper Motor

,

Nema 17 DC Electric Linear Actuator

5v 0.7A 6.35mm Diameter DC Electric Linear Actuator Nema17 Lead Screw Stepper Motor



item value
Warranty 3months-1year
Place of Origin China
Brand Name Jkongmotor
Model Number JK42H2A5007K4-22
Phase 2
Type Hybrid
Current / Phase 0.7A
Product Type Nema 17 Captive Linear Actuators
Model Name JK42H2A5007K4-22
Phase No 2 Phase
Rated Voltage 5.0V
Step Angle 1.8Degree
Lead Screw Diameter Φ6.35mm
Lead Screw Lead 1.5875mm
Linear Travel Per Step 0.0079mm/step
Resistance 7.2Ω
Minimal Thurst /300pps 10KG



Product Features:

Brand:Jkongmotor
Product Type: Nema 17 Captive Linear Actuators
Model Name: JK42H2A5007K4-22
Phase No.: 2 Phase
Step Angle: 1.8Degree
Rated Voltage: 5.0V
Current: 0.7A
Resistance: 7.2Ω
Inductance: 8.7mH
Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm
Linear Travel Per Step: 0.0079mm/step
Leads No.: 4 leads
Insulation resistance: 100MΩ (500VDC)
Heat Rise: 80℃
Minimal Thurst /300pps: 10KG

Noted: This motor can replace Haydon motors



Product Features:

1. It has a threaded drive screwheld mostly inside the motor body which connected to a spline.
2. It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.
3. The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.


Genaral Specification:

Item Specifications
Step Angle 1.8°
Step Angle Accuracy ±5%(full step,no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N




Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 0
Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 1
Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 2

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 3

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 4

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 5

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 6


Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 7

Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 8Nema17 Lead Screw Hybrid Stepper Motor DC Electric Linear Actuator 9
