Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |
Model Number: | JK28HS51-0674-17SK5 |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US$7.6~US$15 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 100000pcs/month |
Shaft: | Double | Leads: | 4 |
---|---|---|---|
Current: | 0.67A | Holding Torque: | 430g.cm - 1200g.cm |
Certificate: | CE ROHS | Weight: | 0.11 - 0.25kg |
Motor Length: | 51mm | Shaft Diameter: | 8mm |
Phase Inductance: | 5mH | Rated Voltage: | 6v |
MOQ: | 10pcs | ||
Highlight: | Nema11 Hollow Shaft Stepper Motor,2 Phase Hollow Shaft Stepper Motor,2 Phase nema11 Stepper Motor |

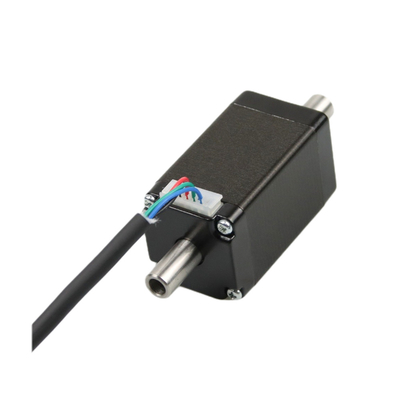

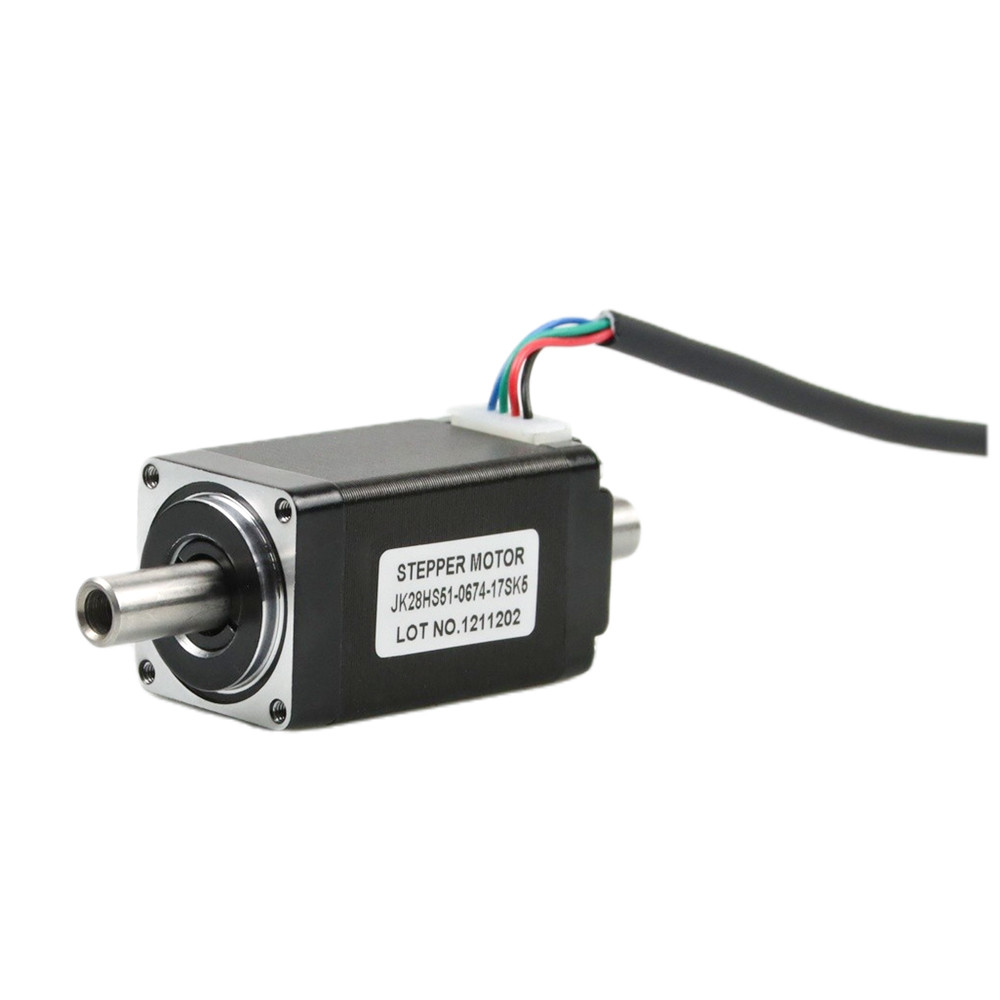

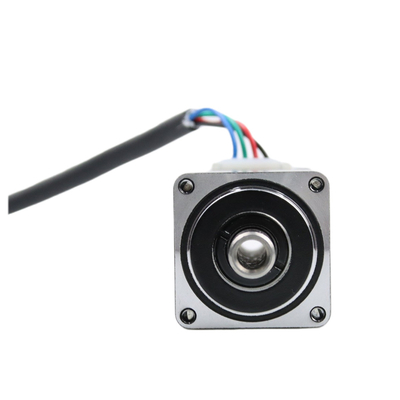

2 Phase 0.67A 51mm Nema11 Hollow Shaft Stepper Motor with Ball Screw Or Lead Screw
Products parameters:
Brand:Jkongmotor
Product Type: Nema 11 Hollow Shaft Stepper Motor
Model: JK28HS51-0671-17SK5
Holding Torque: 80mN.m
Current / Phase:0.67A
Rated Voltage: 6.164V
Phase Resistance: 9.2Ω
Phase Inductance: 5mH
Motor Length: 51mm
Shaft Diameter: 8mm
Number of leads: 4-leads
Weight: 0.18kg
Noted: This motor can be customized
Genaral Specification:
Item | Specifications |
Step Angle | 1.8° |
Step Angle Accuracy | ±5%(full step,no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80℃max |
Ambient Temperature | -20℃~+50℃ |
Insulation Resistance | 100 MΩ Min. ,500VDC |
Dielectric Strength | 500VAC for 1minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Electrical Specification:
Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Motor Weight |
( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg | |
JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
JK28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
JK28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
JK28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
Stepper Motor Advantages
Stepper Motor Applications
