Place of Origin: | Jiangsu, China (Mainland) |
Brand Name: | Jkongmotor |
Certification: | CE, ROHS,ISO9001 |
Model Number: | JK0220 |
Minimum Order Quantity: | 3-10pcs |
---|---|
Price: | US$15.5 ~ US$19.9 |
Packaging Details: | with export carton . big quantity with pallet |
Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
Payment Terms: | T/T , paypal , Western Union, L/C |
Supply Ability: | 100000pcs/month |
Name: | Stepper Motor Controller | Supply Voltage: | 12VDC - 36VDC |
---|---|---|---|
Current: | 0.3A - 2A | Weight: | 200g |
Certified: | CE ROHS | Matched Motor: | Nema8-17 Stepping Motor |
Color: | Black,white | Certification: | CE, ROHS, ISO9001 |
Advantage: | Speed Stability And Control Convenient, No Need Computer Or Pulse Generator To Drive Stepper Motor | MOQ: | 3pcs |
High Light: | 36VDC nema 42 stepper motor driver,2 Phase nema 42 driver,low vibration 3A nema 42 driver |
DM860E cnc step drive digital 24V~80VDC Leadshine Nema34 cnc stepper motor driver

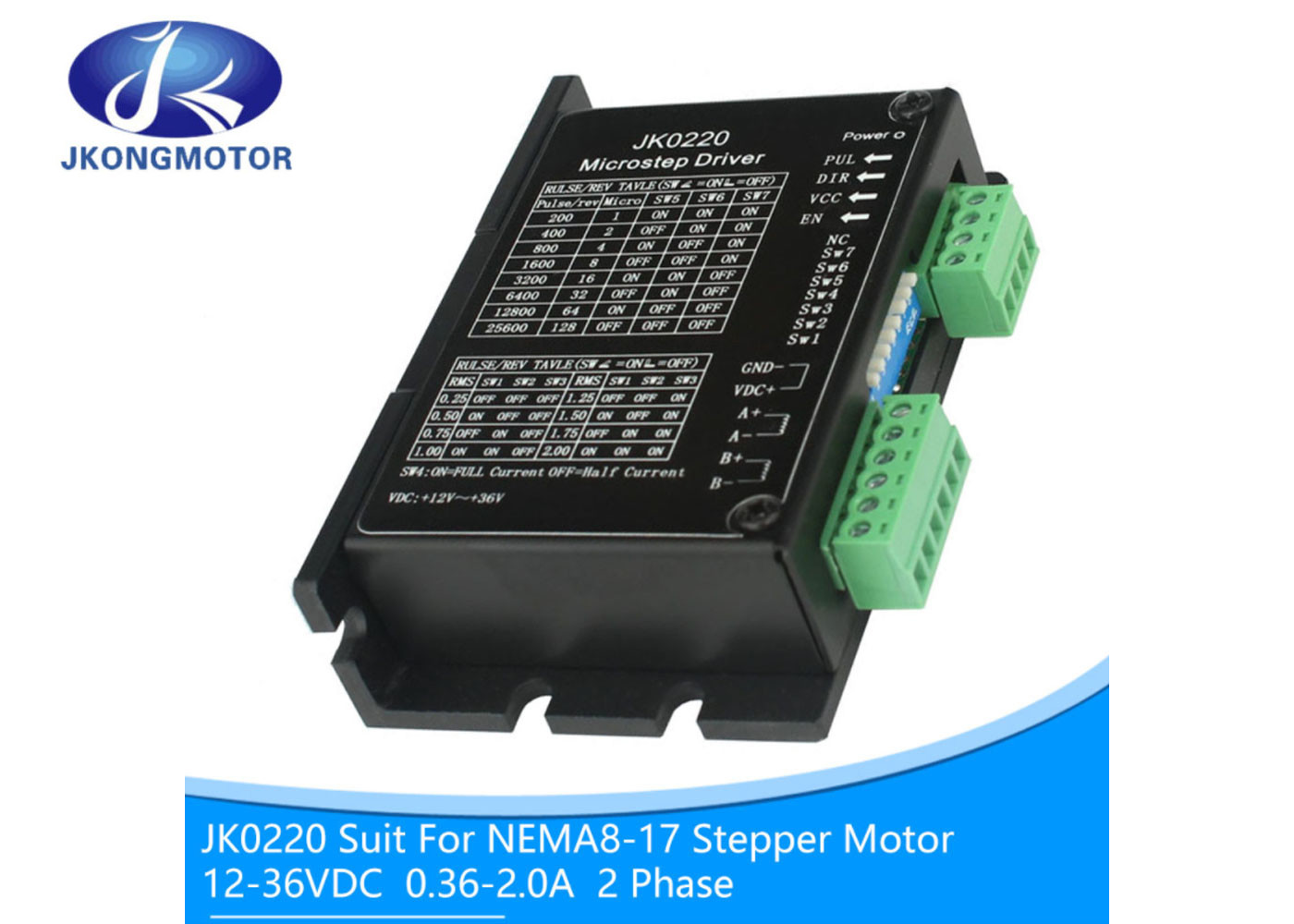

JK0220 is a type of 2 phase hybrid Stepper motor driver . this driver input DC 12-DC36 Voltage. This kind of drive with advanced pure sine wave current control technology, with large torque, low noise, low vibration and other characteristics, is suitable for the size of 20, 28,35,39,42 and other kinds of phase 2 or 4 phase hybrid stepping motors.
Features:
Mechanical Specification:
Electrical Specifications:
1.Microstepping choice:
SW5 | On | Off | On | Off | On | Off | On | Off |
SW6 | On | On | Off | Off | On | On | Off | Off |
SW7 | On | On | On | On | Off | Off | Off | Off |
Micro | 1 | 2 | 4 | 8 | 16 | 32 | 64 | 128 |
2.Current choice:
SW1 | On | Off | On | Off | On | Off | On | Off |
SW2 | On | On | Off | Off | On | On | Off | Off |
SW3 | On | On | On | On | Off | Off | Off | Off |
Current(A) | 0.3 | 0.4 | 0.5 | 0.6 | 1.0 | 1.2 | 1.5 | 2.0 |
