Name: DM542 Step Drive Digital 18V~60VDC Nema17/23 Stepper Motor Controller
Brand: CHANGZHOU JKONGMOTOR CO.,LTD
SKU: DM542
Price: 18.80 USD
Availability: InStock

Home Products Stepper Motor Driver

DM542 Step Drive Digital 18V~60VDC Nema17/23 Stepper Motor Controller

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	DM542

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$15.8 ~ US$23.5
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	Stepper Motor Controller	Supply Voltage:	18VDC - 60VDC
Current:	1A - 4.2A	Weight:	300g
Certified:	CE ROHS	Matched Motor:	Nema17/23 Stepping Motor
Color:	Blue	Certification:	CE, ROHS, ISO9001
Advantage:	Speed Stability And Control Convenient, No Need Computer Or Pulse Generator To Drive Stepper Motor	MOQ:	3pcs
Highlight:	DM542 stepper motor controller , DM542 stepper motor driver , digital nema 17 driver

DM542 step drive digital 18V~60VDC Nema17/23 stepper motor controller

Overview:

Average current control, 2-phase sinusoidal output current drive
8 channels output phase current setting
Offline command input terminal
High start speed
High hording torque under high speed
High performance, low price
Opto-isolated signal I/O
Overvoltage, under voltage, overcorrect, phase short circuit protection
15 channels subdivision and automatic idle-current reduction
Motor torque is related with speed, but not related with step/revolution

The connection between the driver and the two-phase hybrid stepping motor is four-wire. The motor windings are connected in parallel and in

series, and the connection method is good. The high-speed performance is good, but the driver current is large (1.73 times the motor winding

current). The drive current is equal to the motor winding current.

Features
Input voltage	18~60V DC
Output current	1.0A~4.2A(Peak)
Input current	<4A
Humidity	Not condensation, no water droplets
Consumption	Consumption:80W
Using environment	-10 ~ 45 ℃, avoid dust and corrosive gas
Storage environment	-40~+70℃
Weight	200g

Control Signal
Symbol	Name
PUL+	Pulse signal +	Compatible with 5/12/24V
PUL-	Pulse signal -
DIR+	Direction signal+	Compatible with 5/12/24V
DIR-	Direction signal-
ENA+	Enable signal +	/
ENA-	Enable signal -	/

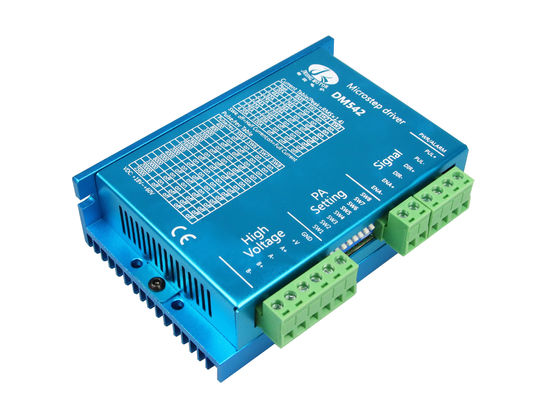

DM542 Step Drive Digital 18V~60VDC Nema17/23 Stepper Motor Controller 0

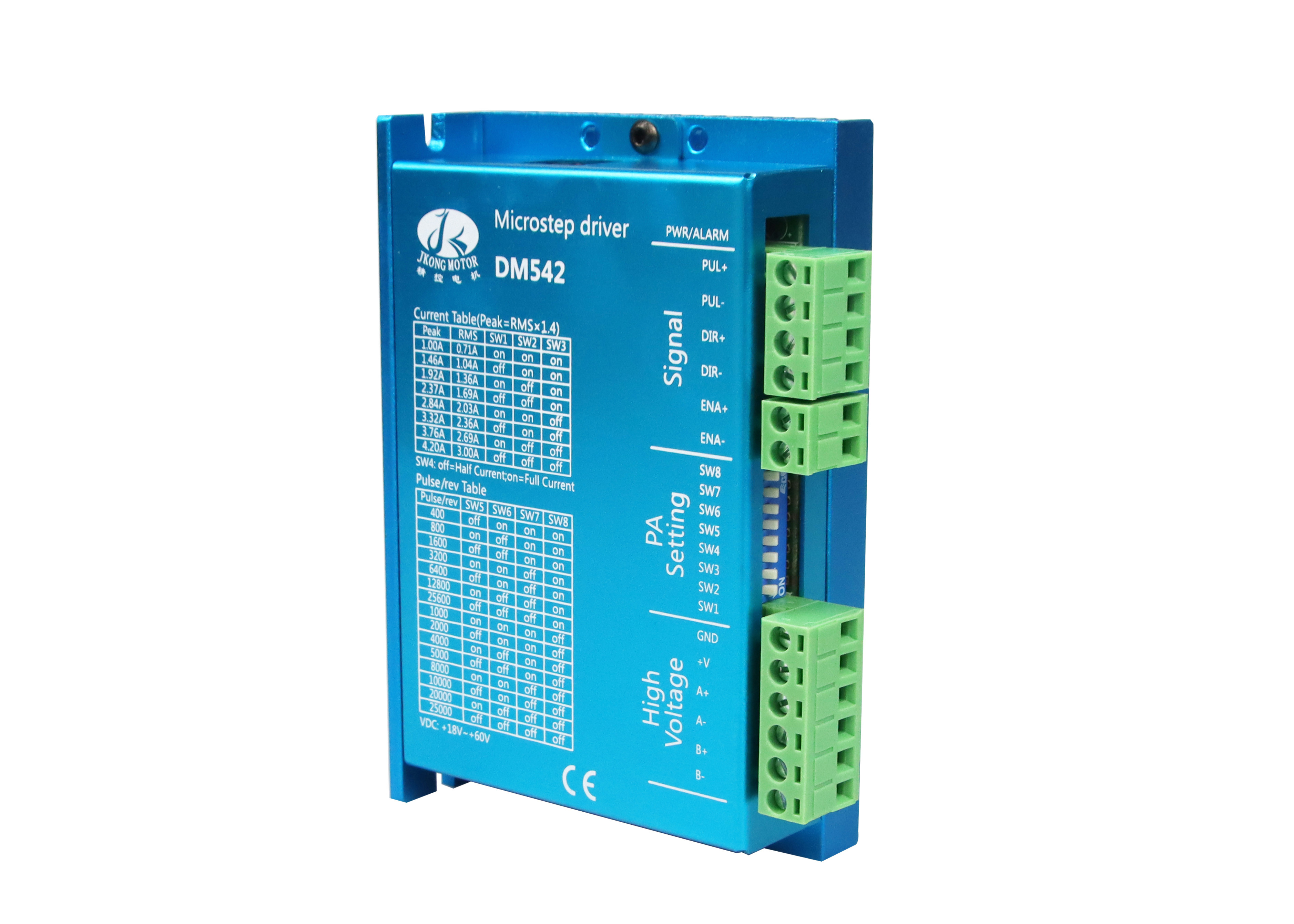

DM542 Step Drive Digital 18V~60VDC Nema17/23 Stepper Motor Controller 1

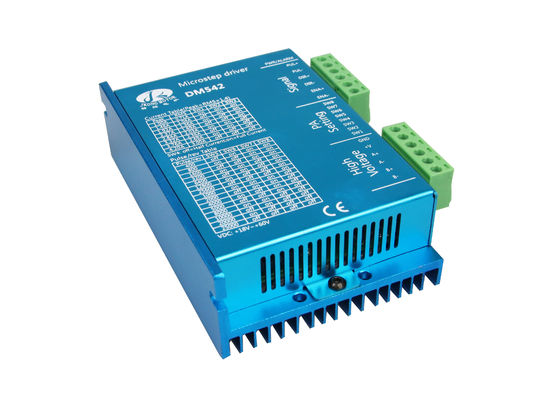

DM542 Step Drive Digital 18V~60VDC Nema17/23 Stepper Motor Controller 2

Adjustment of troubleshooting
Alarm indicator	Reasons	Measures
LED off turn	Wrong connection for power	Check wiring of power
LED off turn	Low-voltages for power	Enlarge voltage of power
Motor doesn’t run, without	Wrong connection of stepper motor	Correct its wiring
holding torque	RESET signal is effective when offline	Make RESET ineffective
Motor doesn’t run, but maintains	Without input pulse signal	Adjust PMW & signal level
holding torque	Without input pulse signal	Adjust PMW & signal level
Motor runs wrong direction	Wrong wires’ connection	Change connection for any of 2 wires
Motor runs wrong direction	Wrong input direction signal	Change direction setting
Motor’s holding torque is	Too small relative to current setting	Correct rated current setting
Motor’s holding torque is	Acceleration is too fast	Reduce the acceleration
Motor torque is too small	Motor stalls	Rule out mechanical failure
Motor torque is too small	Driver does not match with the motor	Change a suitable driver
