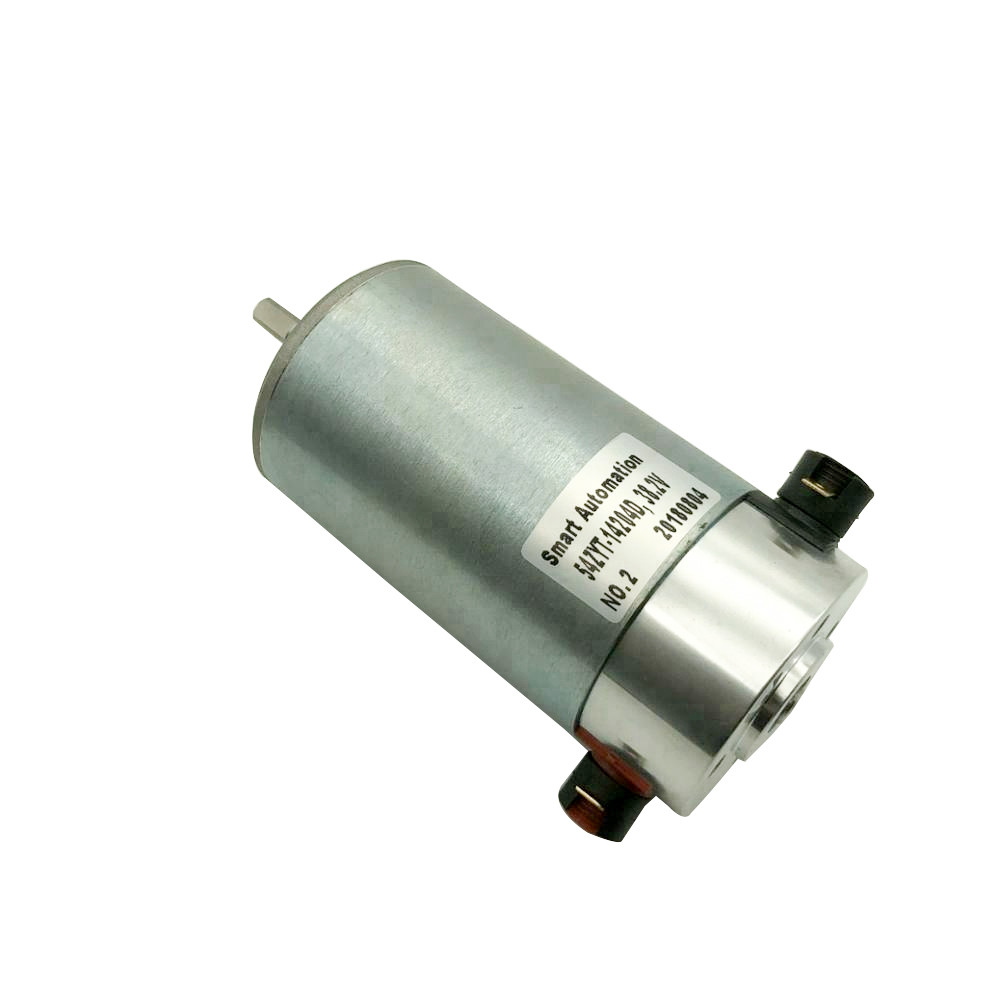

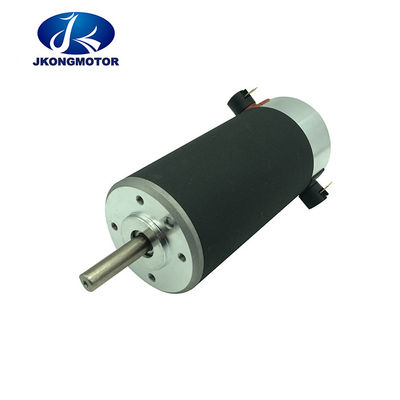

54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles

54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles

54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles
video
54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 54ZYT01A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: US $17.5-46.5 / Units
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Holding Torque: 0.184N.M Color: Black
Speed: 3200rpm Weight: 1kg
Rated Voltage: 12V - 115V Output Power: 62W-104W
High Light:

54ZYT brushed servo motor

,

62w brushed servo motor

,

2 poles 24v brushed dc motor


54ZYT 24v 3200rpm 62w Dc Brush Motor equivalent to PITTMAN Motor



Motor Specifications:



High quality ball bearing

Hard ferrite magnet, 2- poles

Protection class IP40, option for IP54

Insulation class: F

Certified by CE and ROHS



Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation



Model

54ZYT01A

54ZYT02A

54ZYT03A

54ZYT04A

Rated Voltage 24v (option for 12v up to 115vdc)
Rated Speed (rpm) 3200 2580 2770 2810
Rated Torque (Nm) 0.184 0.219 0.261 0.353
No load speed (rpm) 3630 2990 3150 3160
Weight (Kg) 1 1.12 1.28 1.55
Motor Length (mm) 103.5 113 126 145
Output Power (W) 62 59 76 104





Drawing:

54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles 0

54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles 1





54ZYT 24v 3200rpm 62w Brushed Servo Motor 2 Poles 2

The stator generates a stationary magnetic field.This stationary magnetic field surrounds the armature, or rotor. The external power source excites the armature magnetic field. Dc brush motor motor shaft there are two circular arc copper, known as the commutator. As the motor turns, the carbon brushes slide on the commutator. This produces a rotating magnetic field attracted to the stator's stationary magnetic field. The current in the armature and stator windings is supplied by the battery or other DC power supply (permanent magnet DC brushless MOTOR has no stator windings). A battery (or DC power supply) provides a constant DC voltage. The voltage amplitude determines the speed of the motor, so the battery or DC power supply is a linear excitation source. Pulse width modulation (PWM) is the most effective way to change the speed of brushless DC motor. PWM technology is a constant voltage source with fixed frequency switch. The speed of motor can be adjusted by changing the pulse width of PWM signal. The ratio between high and low pulse levels is called PWM signal duty ratio. The amplitude of the DC battery level is equal to the average amplitude of the PWM signal.


Application:

A dc motor has a good starting and speed control performance, often used in the occasion of starting and speed regulation have higher requirements, such as a large reversible rolling mill, mine hoist, the hotel high-speed elevators, planing machine, electric locomotives, diesel locomotive, city tram, subway trains, electric bicycle, papermaking and printing machinery, ship machinery, large precision machine tools and large crane and other production machinery.
