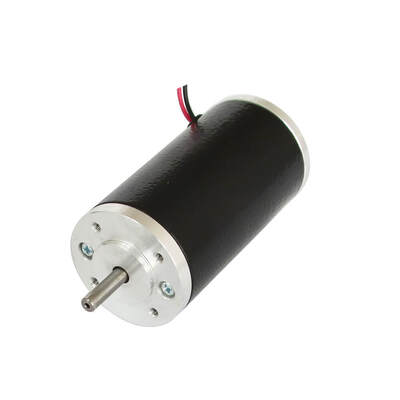

High Speed 63mm Brush Type DC Motor 12V , 24V CNC Machine Motors 7500rpm 314W

High Speed 63mm Brush Type DC Motor 12V , 24V CNC Machine Motors 7500rpm 314W

  • High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W
  • High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W
High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 63ZYT02C
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: US $17.5-46.5 / Units
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Holding Torque: 0.4N.m Color: Black
Speed: 7500rpm Weight: 1200g
Certified: CE ROHS Protection Class: IP50
High Light:

permanent magnet brushed dc motor

,

brushed electric motor


High Speed 63mm Dc Brush Motor 12V 24V 40V For CNC Machine 7500rpm 314W

Detailed Product Description:
63ZYT high torque 24v dc motor
Rated power : 314W
Rated torque : 0.40Nm
CE and ROHS certified High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W 0



Motor technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified



Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection

High temperature Class H insulation

High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W 1High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W 2High Speed 63mm Brush Type DC Motor 12V  , 24V CNC Machine Motors 7500rpm 314W 3
