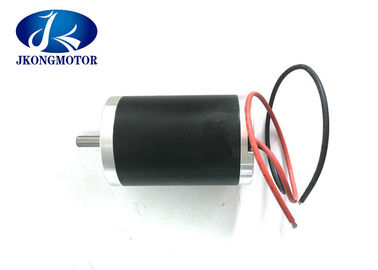

Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W

Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W

  • Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
  • Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
Permanent Magnet Brushed Electric Motor 63mm Series Single Shaft 230V 314W
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 63ZYT
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~5PCS
Price: US$14.5~US$47
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Model No.: 63ZYT Shaft: Single
Leads: 2 Rated Speed: 3000rpm-9500rpm
Rated Torque: 0.15N.m-0.5N.m Output Power: 52W-314W
High Light:

permanent magnet brushed dc motor

,

brushed electric motor



63mm Series Permanent Magnet Brush Dc Motor 12V - 230V 50W - 314W



Motor technical parameter:

* Shaft HRC 36~40 ; NMB ball bearing

* Hard ferrit magnet, 2- poles

* Protection class IP 50

* Insulation class: F, operating temperature range:-40°C~+140°C

* CE and ROHS certified



Options:

* Customized voltage, winding, shaft, mounting, and lead configurations

* EMI/RFI suppression circuit; Thermal protection

* High temperature Class H insulation



Electrical Specification:

 Model

63ZYT

01A

63ZYT

01B

63ZYT

01C

63ZYT

02A

63ZYT

02B

63ZYT

02C

63ZYT

03A

63ZYT

03B

63ZYT

04A

 Rated  Voltage(VDC) 24V (option for 6v up to 60v)
 Rated  Speed(RPM) 3300 4000 9500 3000 4000 7500 3000 4000 3000
 Rated  Torque(N.m) 0.15 0.2 0.2 0.31 0.35 0.4 0.4 0.4 0.5
 No LoadSpeed(RPM) 3600 4700 10000 3500 4700 8400 3500 4700 3600
 Weight (KG) 1 1 1 1.2 1.2 1.2 1.35 1.35 1.5
 Motor  Length(MM) 95 95 95 110 110 110 125 125 140
 Output Power(W) 52 84 200 97 147 314 126 168 157
