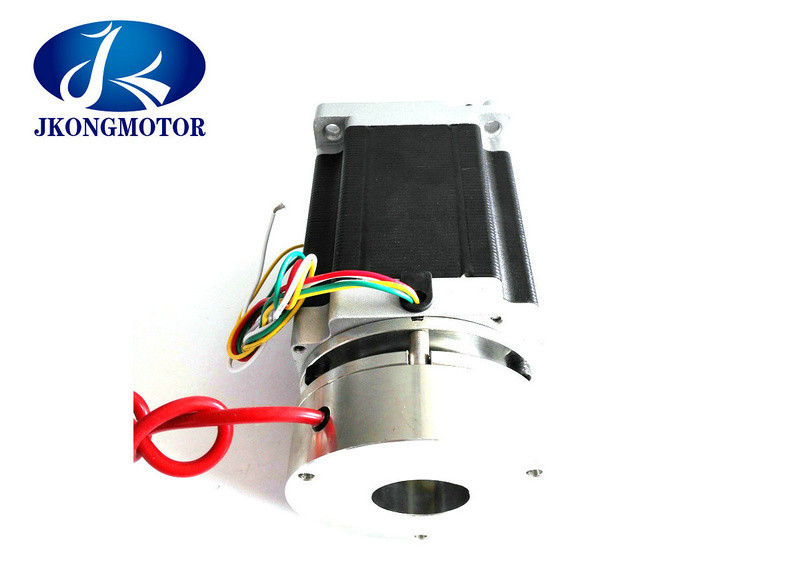

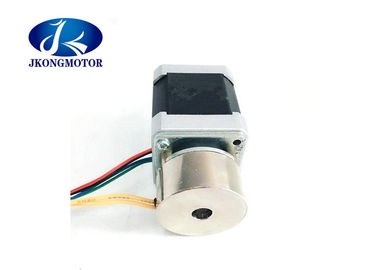

Nema24 60mm 2phase hybrid square stepper motor with brake pad / 1.8° stepper angle
1.Descrition:
Can custom-made
Help our customer to design and develop new parts
OEM ODM service
NEMA24 60mm stepper motor
Model: NEMA24,JK60HS
Speed: low or high speed
Shape: Square
2.Genaral Specification:
| Item |
Specifications |
| Step Angle |
1.8° |
| Temperature Rise |
80℃max |
| Ambient Temperature |
-20℃~+50℃ |
| Insulation Resistance |
100 MΩ Min. ,500VDC |
| Dielectric Strength |
500VAC for 1minute |
| Shaft Radial Play |
0.02Max. (450g-load) |
| Shaft Axial Play |
0.08Max. (450g-load) |
| Max. radial force |
75N (20mm from the flange) |
| Max. axial force |
15N |
3.Electrical Specification:
|
Model No.
|
Step Angle |
Motor Length |
Current
/Phase
|
Resistance
/Phase
|
Inductance
/Phase
|
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| |
( °) |
(L)mm |
A |
Ω |
mH |
N.m |
No. |
g.cm |
g.cm |
Kg |
| JK60HS56-2804BK2 |
1.8 |
56 |
2.8 |
1.04 |
2.94 |
1.79 |
4 |
700 |
300 |
0.77 |
| JK60HS67-2804BK2 |
1.8 |
67 |
2.8 |
1.2 |
4.6 |
2.1 |
4 |
900 |
570 |
1.2 |
| JK60HS88-4004BK2 |
1.8 |
88 |
4.0 |
0.65 |
2.4 |
3.0 |
4 |
1000 |
840 |
1.4 |
| JK60HS100-5004BK2 |
1.8 |
100 |
5.0 |
0.5 |
2.3 |
4.0 |
4 |
1100 |
980 |
1.7 |
Matching Stepper motor Driver: JKD5056S
4.Dimensions: (Unit=mm)
5.Wiring Diagram:
6.Applications:
Use for robots stepper motor;
electronic automatic equipment stepping motor ;
medical instrument stepping motor;
advertisement instrument stepper motor;
lighting&audio equipment stepper motor ;
printer stepper motor;
textile machinery stepper motor;
cnc router stepper motor.
7.Our service
We do also manufacture other products,such as nema8,nema11,nema14,nema16,nema17,nema23,nema24,nema34,nema42,nema52 stepper motor;
nema11,nema17,nema23,nema24,nema34 stepper motor with gearbox.
linear stepper motor,closed loop stepper motor,stepper motor with brake,stepper motor sriver;
42mm,57mm,60mm,80mm,86mm,110mm,130mm brushless dc motor;
bldc motor with gearbox,bldc motor driver;
brush dc motor,spindle motor,ac servo motor kit,couplings,pulley,power supply and so on.
