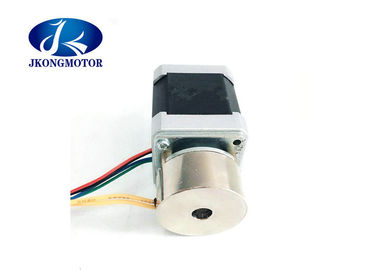

High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle

High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle

  • High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle
  • High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle
High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS60-1504BK0.5
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$22~US$28
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Leads: 4
Current: 1.5A Holding Torque: 7.5kg.cm
Brake: 0.3N.m 24V Weight: 0.7KG
High Light:

electric motor with break

,

brake motor



High Torque 7.5kg.cm Stepper Motor With Brake Pad 24V 0.3N.m 1.8° Step Angle



Genaral Specification:



 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  500VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  28N (20mm from the flange)
 Max. axial force  10N




Electrical Specification:



Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK42HS60-1504BK0.3 1.8 60 1.5 4.0 6.0 7.5 4 280 102 0.5



High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle 0High Torque Electric Motor With Break 24V 0.3N.M 1.8° Step Angle 1



Stepper Motor Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Applications

Computer controlled stepper motors are a type of motion-control positioning system. They are typically digitally controlled as part of an open loop system for use in holding or positioning applications.

In the field of lasers and optics they are frequently used in precision positioning equipment such as linear actuators, linear stages, rotation stages, goniometers, and mirror mounts. Other uses are in packaging machinery, and positioning of valve pilot stages for fluid control systems.

Commercially, stepper motors are used in floppy disk drives, flatbed scanners, computer printers, plotters, slot machines, image scanners, compact disc drives, intelligent lighting, camera lenses, CNC machines and, more recently, in 3D printers.
