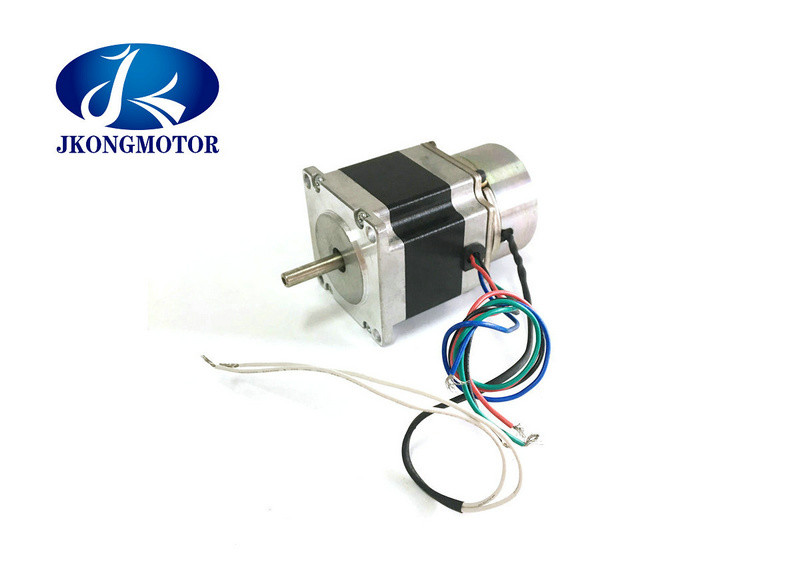

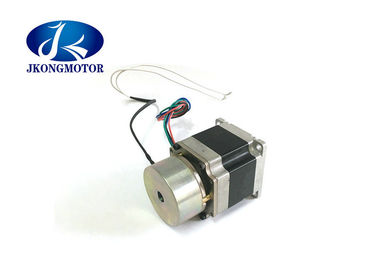

Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804

Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804

Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804
video
Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HS76-2804BK2
Payment & Shipping Terms:
Minimum Order Quantity: 3 Unit/Units
Price: US $26 - 38 / Units | 3 Unit/Units (Min. Order)
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Phase: 2-phase Type: Hybrid
Step Angle: 1.8 Degree Holding Torque: 1.89N.m
Current / Phase: 2.8A Brake: 24V 2N.m
High Light:

brake motor

,

jkong motor



Nema23 Stepper Motor With Brake High Torque Stepping Motor 1.89N.m 26 oz.in 57HT76-2804



Hybrid stepper motor is a combination of variable reluctance and permanent magnet motor. The stator is electromagnetically stimulated like variable reluctance stepper motor, and the rotor of the stepper motor is axially magnetized like permanent magnet stepper motor. This stepper motor is an actuator that converts electrical pulses into angular displacement.



Electrical Specification:



Model No. Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS76-2804 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS76-3006 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-3008 76 3 1 1.8 1.5 8 600 440 1.1
JK57HS82-3004 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS82-4008 82 4 0.8 1.8 2 8 1000 600 1.2
JK57HS82-4204 82 4.2 0.7 2.5 2.2 4 1000 600 1.2





Brake Specification:



Model BK2
Torque(N-m) 2
Voltage(V) 24V
L2 Length(mm) 32



Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804 0Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804 1

Products of special request can be made according to the customer request!



Dimensions:(Unit=mm)

Nema 23 Electric Motor With Break , High Torque Stepper Motor 1.89N.M 26 Oz.In 57HT76-2804 2



Stepper Motor Advantages

  • Low cost for control achieved
  • High torque at startup and low speeds
  • Ruggedness
  • Simplicity of construction
  • Can operate in an open loop control system
  • Low maintenance
  • Less likely to stall or slip
  • Will work in any environment
  • Can be used in robotics in a wide scale.
  • High reliability
  • The rotation angle of the motor is proportional to the input pulse.
  • The motor has full torque at standstill (if the windings are energized)
  • Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
  • Excellent response to starting/stopping/reversing.
  • Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
  • The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
  • It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
  • A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
