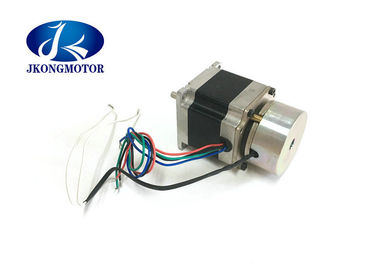

Square High Torque Stepper Motor With Brake Nema 23 2N.M 24V 3A 1.8°Step Angle

Square High Torque Stepper Motor With Brake Nema 23 2N.M 24V 3A 1.8°Step Angle

  • Square High Torque Stepper Motor With Brake Nema 23  2N.M 24V 3A 1.8°Step Angle
  • Square High Torque Stepper Motor With Brake Nema 23  2N.M 24V 3A 1.8°Step Angle
Square High Torque Stepper Motor With Brake Nema 23  2N.M 24V 3A 1.8°Step Angle
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HS112-3004
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~5PCS
Price: US$23.5~US$37
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: Hybrid Stepper Motor Leads: 4
Current: 3A Holding Torque: 3.0 N.m
Leading Wires: 4 Driver: JKD5056S
Shaft: Single Application: Computer Printers, Plotters,image Scanners,CNC Machines
High Light:

brake motor

,

jkong motor



30kg.cm High Torque Hybrid Square Stepper Motor Nema23 With Brake pad 2N.m 24V 1.8° Step Angle

Genaral Specification:

 Item  Specifications
 Step Angle  1.8°
 Temperature Rise  80℃max
 Ambient Temperature  -20℃~+50℃
 Insulation Resistance  100 MΩ Min. ,500VDC
 Dielectric Strength  500VAC for 1minute
 Shaft Radial Play  0.02Max. (450g-load)
 Shaft Axial Play  0.08Max. (450g-load)
 Max. radial force  75N (20mm from the flange)
 Max. axial force  15N


Electrical Specification:

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
  ( °) (L1)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4




Brake Specification:



 Model  BK2
 Torque(N-m)  2
 Voltage(V)  24V
 L2 Length(mm)  32
