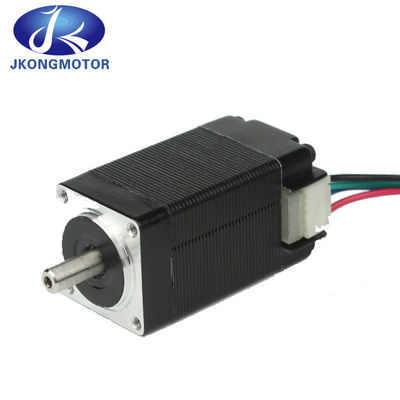

20mm 0.6A 2N.Cm 4 Leads Hybrid Synchronous Nema 8 Stepper Motor

20mm 0.6A 2N.Cm 4 Leads Hybrid Synchronous Nema 8 Stepper Motor

20mm 0.6A 2N.Cm 4 Leads Hybrid Synchronous Nema 8 Stepper Motor
video
20mm 0.6A 2N.Cm 4 Leads Hybrid Synchronous Nema 8 Stepper Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK20HS33-0604
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$10~US$20
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Or Double Leads: 4
Current: 0.6A Holding Torque: 2N.cm
Certificated: CE ROHS Weight: 0.1kg
MOQ: 10pcs
High Light:

nema 8 stepper motor

,

nema 8 stepper motor

,

20mm hybrid synchronous stepper



20mm 0.6A 2N.cm 4leads 1.8° Nema8 stepper motor



Hybrid stepper motor is a combination of variable reluctance and permanent magnet motor. hybrid stepper motors provide higher torque with smaller step angle and have a better dynamic property. Stepping motor is an actuator that converts electrical pulses into angular displacement. In layman's terms: When the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (ie step angle) in the set direction. You can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, you can control the speed and acceleration of the motor rotation by controlling the pulse frequency to achieve the purpose of speed regulation.



Genaral Specification:

  • Step Angle : 1.8°
  • Step Angle Accuracy : ±5%(full step,no load)
  • Resistance Accuracy : ±10%
  • Inductance Accuracy : ±20%
  • Temperature Rise : 80℃max
  • Ambient Temperature : -20℃~+50℃
  • Insulation Resistance : 100 MΩ Min. ,500VDC
  • Dielectric Strength : 500VAC for 1minute
  • Shaft Radial Play : 0.02Max. (450g-load)
  • Shaft Axial Play : 0.08Max. (450g-load)
  • Max. radial force : 28N (20mm from the flange)
  • Max. axial force : 10N



Electrical Specification:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Motor

Weight

  ( °) (L)mm A Ω mH g.cm No. Kg
JK20HS30-0604 1.8 30 0.6 6.5 1.7 180 4 0.06
JK20HS33-0604 1.8 33 0.6 6.5 1.7 200 4 0.07
JK20HS38-0604 1.8 38 0.6 10 5.5 300 4 0.08
JK20HS42-0804 1.8 42 0.8 5.4 1.5 400 4 0.09



Matching Stepper motor Driver: JK0220

20mm 0.6A 2N.Cm 4 Leads Hybrid Synchronous Nema 8 Stepper Motor 0



Wiring Diagram:

20mm 0.6A 2N.Cm 4 Leads Hybrid Synchronous Nema 8 Stepper Motor 1

Advantages of Hybrid Stepper Motor

  • The advantages of the Hybrid Stepper Motor are as follows:-
  • The length of the step is smaller.
  • It has greater torque.
  • Provides Detent Torque with the de-energized windings.
  • Higher efficiency at lower speed.
  • Lower stepping rate.



Stepper Motor Applications

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
