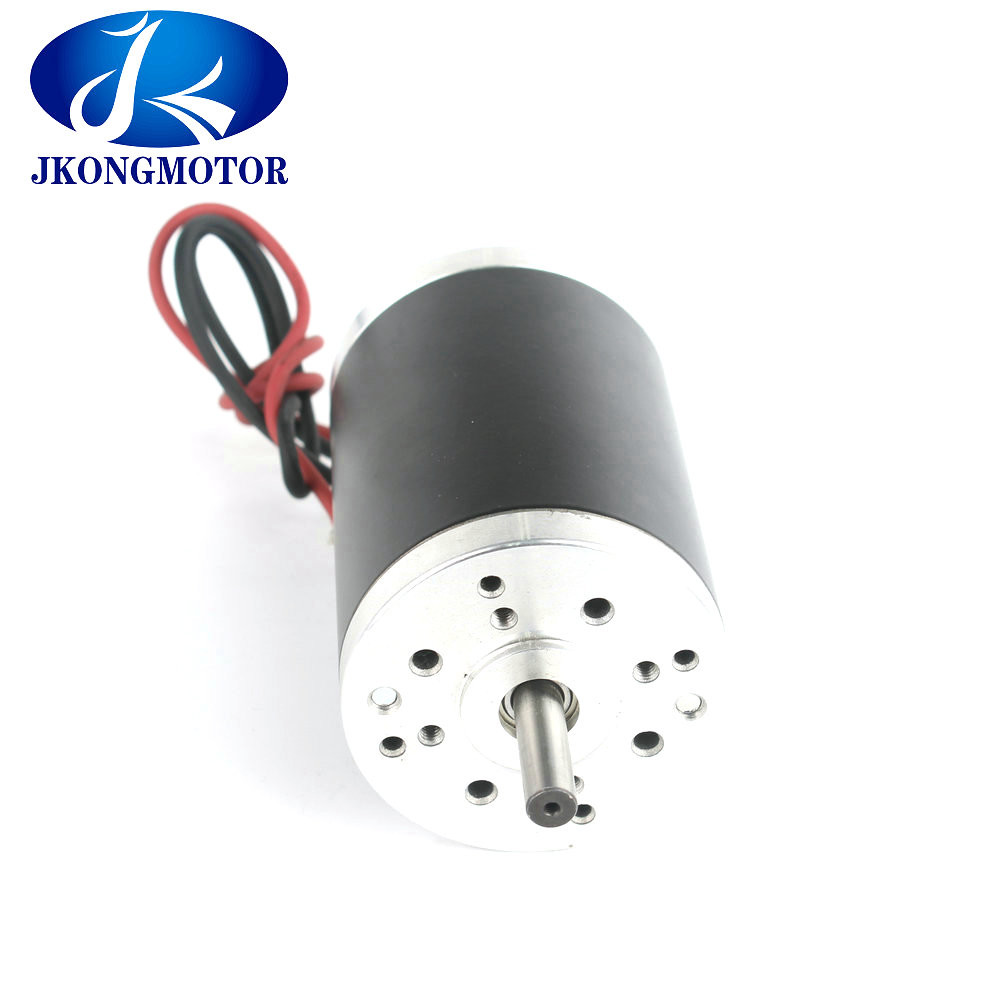

100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor Voltage 6V - 60V

100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor Voltage 6V - 60V

  • 100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor  Voltage 6V - 60V
100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor  Voltage 6V - 60V
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 42ZYT04B
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $13-31 / Units
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 PCS/MONTH
Contact Now
Detailed Product Description
Holding Torque: 100mN.M Color: Black
Speed: 4700rpm Weight: 550g
Voltage: 6V - 60V Output Power: 49w
High Light:

49W Nema 17 Servo Motor


49W nema 17 brushless dc motor


CE nema 17 brushless dc motor


Nema17 Dc Brush Motor 100m.Nm 4700rpm Output Power 49W Voltage 6V - 60V


A Brushless DC motor is a rotating motor with a brush device that converts dc electrical energy to mechanical energy (a DC motor) or mechanical energy to direct electrical energy (a DC generator). Unlike brushless DC motors, brush devices are used to introduce or extract DC voltage and DC current.


The basic construction of a DC brush motor consists of the stator, rotor, brush and commutator. The stator and rotor magnetic fields interact to drive the motor.The types of BRUShless DC motors are classified according to the way the magnetic fields are generated in the stator or casing of the motor.Depending on the type of brushless DC motor, the stator magnetic field may be generated by permanent magnets or windings in the stator.


Detailed Product Description:

  • 42ZYT high torque brushed dc motor
  • voltage, 24v, 36v, 40v and 12v option
  • no load speed 5900rpm
  • power 49w

Motor Specifications

  • High quality ball bearing
  • Hard ferrite magnet, 2- poles
  • Protection class IP50
  • Insulation class: F
  • Certified by CE and ROHS


Model 42ZYT04C
Voltage V 24
No load speed rpm 4700
Rated torque mNm 100
Rated speed rpm 5900
Weight Kg 0.55
L1 mm 90
Power W 49


100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor  Voltage 6V - 60V 0100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor  Voltage 6V - 60V 1


100m.Nm 4700rpm 49W Nema 17 Brushless Dc Motor  Voltage 6V - 60V 2


The stator generates a stationary magnetic field.This stationary magnetic field surrounds the armature, or rotor. The external power source excites the armature magnetic field. Dc brush motor motor shaft there are two circular arc copper, known as the commutator. As the motor turns, the carbon brushes slide on the commutator. This produces a rotating magnetic field attracted to the stator's stationary magnetic field. The current in the armature and stator windings is supplied by the battery or other DC power supply (permanent magnet DC brushless MOTOR has no stator windings). A battery (or DC power supply) provides a constant DC voltage. The voltage amplitude determines the speed of the motor, so the battery or DC power supply is a linear excitation source. Pulse width modulation (PWM) is the most effective way to change the speed of brushless DC motor. PWM technology is a constant voltage source with fixed frequency switch. The speed of motor can be adjusted by changing the pulse width of PWM signal. The ratio between high and low pulse levels is called PWM signal duty ratio. The amplitude of the DC battery level is equal to the average amplitude of the PWM signal.



A dc motor has a good starting and speed control performance, often used in the occasion of starting and speed regulation have higher requirements, such as a large reversible rolling mill, mine hoist, the hotel high-speed elevators, planing machine, electric locomotives, diesel locomotive, city tram, subway trains, electric bicycle, papermaking and printing machinery, ship machinery, large precision machine tools and large crane and other production machinery.
