2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor

2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor

  • 2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor
  • 2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor
2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: DM860H
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$20~US$30
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 3-7 days / For batch , 10-15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Type: Stepper Motor Driver Out Current: 2.4-7.2A
Supply Voltage: 24VDC-110VDC 18VAC-80VAC Color: Black
Matching Motor: NEMA23 34 Stepper Motor Advantage: Low Cost ,low Noise
High Light:

DM860H

,

NEMA23 Stepper Motor Driver



Stepper motor Driver DM860H 2phase For cnc Router/Laser Machine 7.2A, DC 18-80V driver for NEMA23 and NEMA34 motor



Feature of Driver for nema23 and nema34 motor:


1. Stable performance with digital signal processing high-Rate processor
2. High-accuracy positioning in low subdivision
3. With the latest PI current control algorithm, the output torsion is large, giving you extraordinary high-Rate performance.
4. Can adapt to the harsh environment and strong anti-interference ability
5. The parameter self-tuning function is integrated in the drive, which can generate different adaptation parameters for different motors, so that the motor can achieve the best performance.



Specification of DM860H 2phase stepper motor driver:
Item Type: Stepper Motor Drive
Supply Voltage: DC24-110V or AC18-80V
Driving Current: 2.4-7.2A
Subdivision Progress: 2-200 subdivision optional
Optically Isolated Signal Input
Motor Noise Optimization
Can drive any 2-phase, 34-phase hybrid stepping motor below 7.2A
20KHz chopping frequency



Electrical characteristics:

Input current 24-80VDC power supply,capacity:not less than 200VA  typical value:DC36V
Out current 2.4A-7.2A,8gears adjustable,resolving power 0.5A
Drive mode Double constant current PWM drive output
Insulation resistance Normal pressure and temperature>500M
Insulation resistance Normal pressure and temperature500V/min
weight about 400g

Environmental requirements:

Cooling method Natural Cooling
Use Occasion Avoid dust,oil mist and corrosive gases
Use temperature 0℃-+50℃
Ambient humidity <80%RH,NO condensation,no frost
Shake Maximum  not more than 5.7m/s2



Current output setting table:

Out peak current SW1 SW2 SW3
2.40A on on on
3.08A off on on
3.771A on off on
4.45A off off on
5.14A on on off
5.83A off on off
6.52A on off off
7.20A off off off


Subdivision  schedule:

subdivision multiple step number/circle (1.8°/whole step)              sw5                                                          sw6                                                           sw7                                              sw8
2 400 on on on on
4 800 off on on on
8 1600 on off on on
16 3200 off off on on
32 6400 on on off on
64 12800 off on off on
128 25600 on off off on
256 51200 off off off on
5 1000 on on on off
10 2000 off on on off
20 4000 on off on off
25 5000 off off on off
40 8000 on on off off
50 10000 off on off off
100 20000 on off off off
200 40000 off off off off



Installation size of 2phase for cnc router:

2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor 0



Photo of DM860H stepper motor driver:

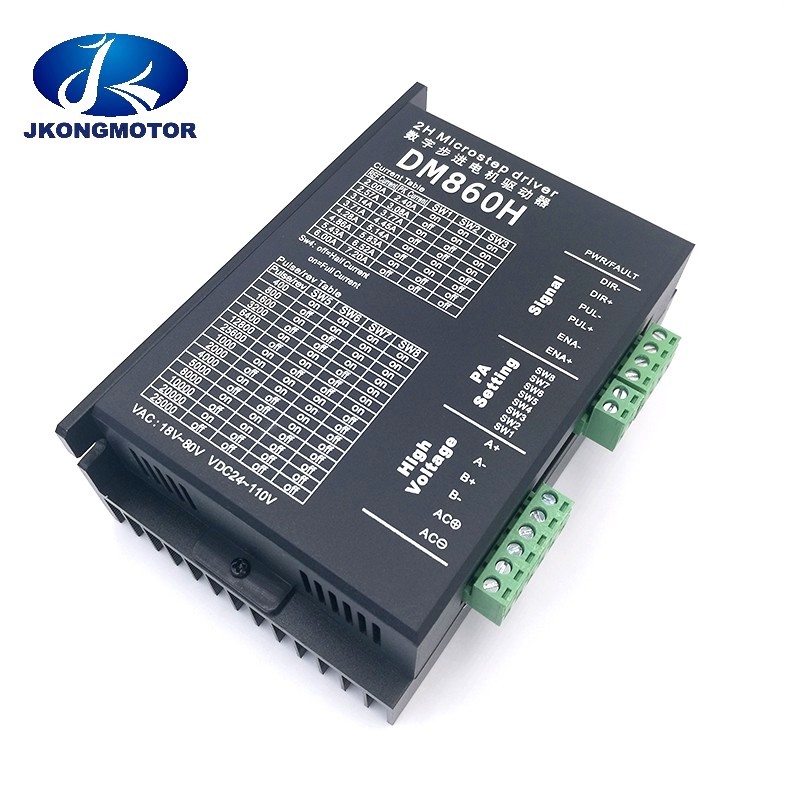

2 Phase Stepper Motor Driver DM860H 7.2A DC 18-80V Driver For NEMA23 And NEMA34 Motor 1
