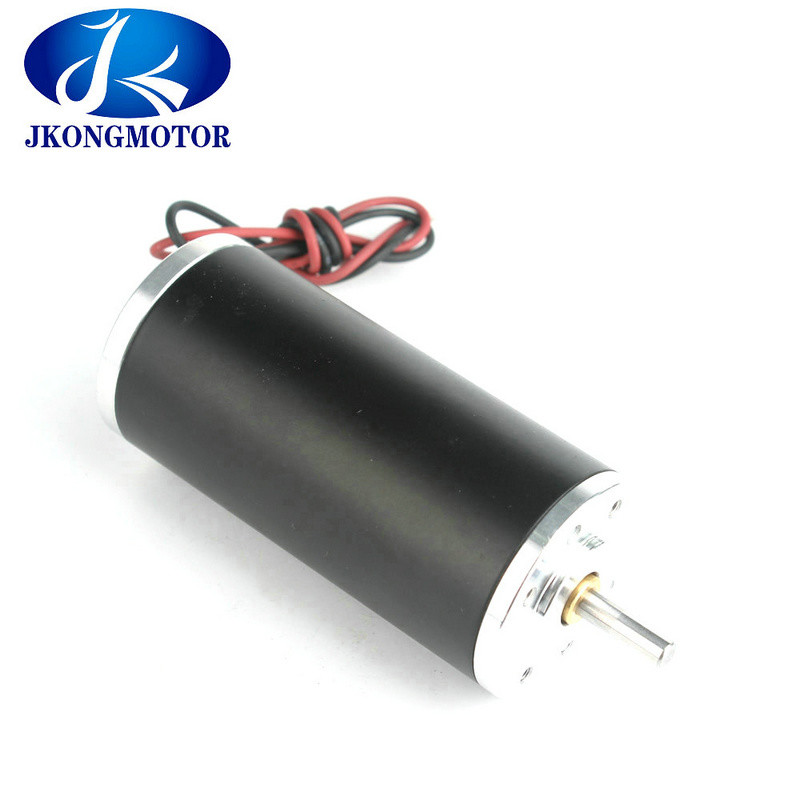

42mm Permanent Magnet Electric Motor , 14W 3500RPM Brush Type Motor CE ROHS Approved



The basic construction of a DC brush motor consists of the stator, rotor, brush and commutator. The stator and rotor magnetic fields interact to drive the motor. The types of BRUShless DC motors are classified according to the way the magnetic fields are generated in the stator or casing of the motor. Depending on the type of brushless DC motor, the stator magnetic field may be generated by permanent magnets or windings in the stator. In the latter case, the stator windings and the rotor windings may be connected in parallel, serial, or mixed modes.



voltage, 12v, 24v, 36v, 40v
rated speed, 3600rpm
rated torque, 38mNm
power 15w~20w
O.D 42mm, length 70mm

42ZYT01A, 15W



Motor technical parameter:

* Shaft HRC 36~40 ; NMB ball bearing

* Hard ferrit magnet, 2- poles

* Protection class IP 50

* Insulation class: F, operating temperature range:-40°C~+140°C

* CE and ROHS certified



Options:

* Customized voltage, winding, shaft, mounting, and lead configurations

* EMI/RFI suppression circuit; Thermal protection

* High temperature Class H insulation



Model	42ZYT01A
Rated voltage	V dc	12	24	40
Continuous rated speed	rpm	3450	3600	3700
Continuous rated torque	mN.m	39	38	39
Continuous current	A	1.9	0.9	0.6
Starting torque	mN.m	19	20	22
Starting current	A	7.8	4	2.76
No load speed	rpm	4350	4200	4400
No load current	A	0.34	0.17	0.11
Demagnetization current	A	14	6.5	4.1
Rotor inertia	Gcm2	71	71	71
Weight of motor	g	390	390	390





Characteristics:



A BRUShless DC motor is a rotating motor with a brush device that converts dc electrical energy to mechanical energy (a DC motor) or mechanical energy to direct electrical energy (a DC generator). Unlike brushless DC motors, brush devices are used to introduce or extract DC voltage and DC current. Dc brushless motor is the foundation of all motors, it has the characteristics of fast start, timely braking, speed regulating smoothly in a large range, relatively simple control circuit, etc.



The stator generates a stationary magnetic field.This stationary magnetic field surrounds the armature, or rotor. The external power source excites the armature magnetic field. Dc brush motor motor shaft there are two circular arc copper, known as the commutator. As the motor turns, the carbon brushes slide on the commutator. This produces a rotating magnetic field attracted to the stator's stationary magnetic field. The current in the armature and stator windings is supplied by the battery or other DC power supply (permanent magnet DC brushless MOTOR has no stator windings). A battery (or DC power supply) provides a constant DC voltage. The voltage amplitude determines the speed of the motor, so the battery or DC power supply is a linear excitation source. Pulse width modulation (PWM) is the most effective way to change the speed of brushless DC motor. PWM technology is a constant voltage source with fixed frequency switch. The speed of motor can be adjusted by changing the pulse width of PWM signal. The ratio between high and low pulse levels is called PWM signal duty ratio. The amplitude of the DC battery level is equal to the average amplitude of the PWM signal.



Application:



A dc motor has a good starting and speed control performance, often used in the occasion of starting and speed regulation have higher requirements, such as a large reversible rolling mill, mine hoist, the hotel high-speed elevators, planing machine, electric locomotives, diesel locomotive, city tram, subway trains, electric bicycle, papermaking and printing machinery, ship machinery, large precision machine tools and large crane and other production machinery.
