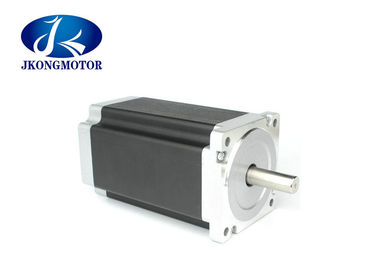

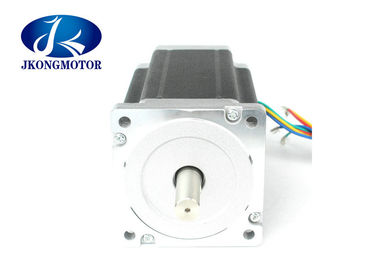

Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine

Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine

Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine
video
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86HS155-6004
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$36.5~US$49
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: D Shaft / Round Shaft / Keyway Shaft Leads: 4
Current: 6A Holding Torque: 13N.m
Motor Length: 155mm Weight: 5.4KG
Step Angle: 1.8 Degree Phase: 2 Phase
High Light:

electric stepper motor

,

nema stepper motor

1Axis Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine

1.Genaral Specification of high torque  nema 34 stepper motor:

Item Specifications
Step Angle 0.9°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50℃
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 220N(20mm from the flange)
Max. axial force 60N

2.Electrical Specification of Fulling motor FL86STH156-6004A:

Model No.

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
  (L)mm A Ω mH N.m No. Kg.cm g.cm Kg
JK86HS155-6004 155 6.0 0.68 9.0 13.0 4 3.6 4000 5.4


Matching Stepper motor Driver: JKD7208S OR JKD2060AC

4.Drawing
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 0

5. Matched Driver DM860H


Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 1





1.The latest 32-bit digital processing technology
2. Advanced control algorithm for variable current and variable frequency conversion
3. Low heat generation, low motor vibration and stable operation
4. Built-in micro-segmentation
5. Smooth operation and low noise
6. Integrated parameter power-on auto-tuning function
7. Subdivision setting (within 400~51200)
8. With overcurrent, overvoltage, undervoltage protection
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 2
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 3
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 4
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 5
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 6
Nema 34 Hybrid Stepper Motor high torque 12.5N.m 155mm Length for CNC machine 7

  • As a comprehensive enterprise with an integration of R&D, design, production, we have highly effcient production line, advanced quality testing instruments, excellentproducts and packing
  • Our company has passed the international quality system authentication of CE and ROHS
  • We enjoy a good reputation and sell productions to dozens of countries.
  • We insist that quality and honesty come first.
  • Anny will be very happy to answer your questions in 24 hours.
