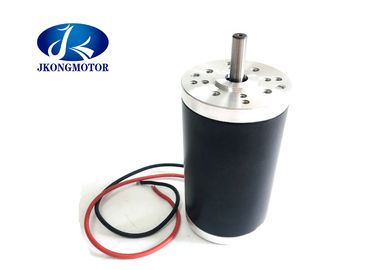

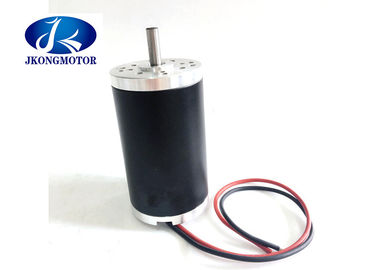

Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc

Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc

  • Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc
  • Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc
Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 52ZYT
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~5PCS
Price: US$13~US$39
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Leads: 2
Rated Speed: 11000rpm Rated Torque: 0.25N.m-0.3N.m
Output Power: 288W-346W Voltage: 12V - 115V
High Light:

permanent magnet brushed dc motor

,

permanent magnet dc electric motors



52mm Diameter Permanent Magnet Brush Dc Motor 24V High Speed Series 11000rpm



Motor technical parameter:

* Shaft HRC 36~40 ; NMB ball bearing

* Hard ferrit magnet, 2- poles

* Protection class IP 50

* Insulation class: F, operating temperature range:-40°C~+140°C

* CE and ROHS certified



Options:

* Customized voltage, winding, shaft, mounting, and lead configurations

* EMI/RFI suppression circuit; Thermal protection

* High temperature Class H insulation





Electrical Specification:



 Model 52ZYT01A 52ZYT02A 52ZYT02B
 Rated Voltage(VDC) 24V (option for 6v up to 60v)
 Rated Speed(RPM) 11000 11000 11000
 Rated Torque(N.m) 0.25 0.28 0.3
 No LoadSpeed(RPM) 12000 12000 12000
 Weight (KG) 0.85 0.9 1
 Motor Length(MM) 110 117 125
 Output Power(W) 288 323 346



Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc 0Permanent Magnet Brush Type Dc Motor 52ZYT Series 24V 52mm Diameter High Speed 11000rpm option for 12v up to 115vdc 1

Our service:



We do also manufacture other products,such as nema8,nema11,nema14,nema16,nema17,nema23,nema24,nema34,nema42,nema52 stepper motor;

nema11,nema17,nema23,nema24,nema34 stepper motor with gearbox.

linear stepper motor,closed loop stepper motor,stepper motor with brake,stepper motor sriver;

42mm,57mm,60mm,80mm,86mm,110mm,130mm brushless dc motor;

bldc motor with gearbox,bldc motor driver;

brush dc motor,spindle motor,ac servo motor kit,couplings,pulley,power supply and so on.



FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.

Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.

Q:What's your lead time?
A:Generally speaking, our regular standard product will need 15-25days, a bit longer for customized products. But we are very flexible on the lead time, it will depends on the specific orders



Q:What's the minimum order quantity?
A:Our minimum order quantity depends on different motor models, please email us to check. Also, we usually do not accept personal use motor orders.

Q:What's your shipping method for motors?
A:For samples and packages less than 100kg, we usually suggest express shipping; For heavy packages, we usually suggest air shipping or sea shipping. But it all depends on our customers' needs.

Q:What certifications do you have?
A:We currently have CE and ROSH certifications.

Q:Can you send me your price list?
A:Since we have hundreds of different products, and price varies per different specifications, we are not able to offer a price list. But we can quote within 24 hours once got your inquirues to make sure you can get the price in time.
