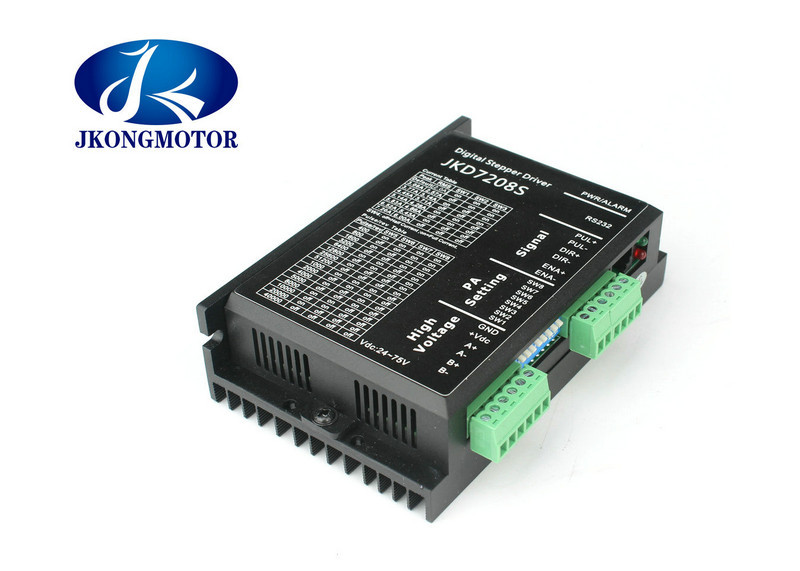

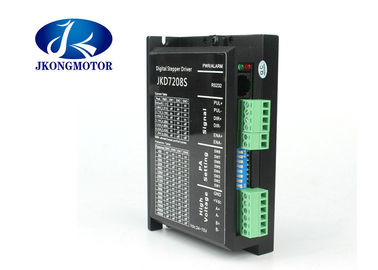

24V~75VDC Stepper Motor Driver 0.1A-7.2A , JKD7208S Nema 34 Stepper Motor Kit

24V~75VDC Stepper Motor Driver 0.1A-7.2A , JKD7208S Nema 34 Stepper Motor Kit

24V~75VDC  Stepper Motor Driver 0.1A-7.2A , JKD7208S  Nema 34 Stepper Motor Kit
video
24V~75VDC  Stepper Motor Driver 0.1A-7.2A , JKD7208S  Nema 34 Stepper Motor Kit
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKD7208S
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: US$27 ~ US$35
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Controller Supply Voltage: 24VDC - 75VDC
Current: 0.1A - 7.2A Weight: 280g
Certified: CE ROHS Matched Motor: Nema34 Stepping Motor
High Light:

tb6600 stepper motor driver

,

3 axis stepper motor driver



24V~75VDC 0.1A-7.2A Stepper Motor Driver JKD7208S For Nema34 Stepper Motor



Electrical indicators

Instruction JKD7208S
Minimum Typical Maximum Unit
The output current 0.1 - 7.2 A
Input voltage 24 48 75 VDC
Control signal input current 6 10 16 mA
Control signal interface level 4.5 5 28 Vdc
Input signal minimum pulse width 1.5 - - us
Stepper pulse frequency 0 - 200 KHz
Insulation resistance 100




Using environment and parameters



Cooling method Natural cooling or forced air cooling
Using environment occasion Can not be placed next to other heating equipment, should avoid dust, oil mist, corrosive gas, too big humidity and strong vibration place, prohibit to have combustible gas and conductive dust
temperature -5℃ ~ +50℃
humidity 40 ~ 90%RH
vibration 5.9m/s2MAX
Storage temperature -20℃~80℃
Using altitude Below 1000 metres
Weight About 280 g


Mechanical installation diagram
24V~75VDC  Stepper Motor Driver 0.1A-7.2A , JKD7208S  Nema 34 Stepper Motor Kit 0

Interface description


1) Control signal interface circuit

Name Function

 PUL+

Pulse signal: pulse rising edge is effective; In PUL high level,voltage is 4.5 ~ 28Vdc, and the low level, voltage is 0 ~ 0.5v. In order to reliably respond to the pulse signal, the pulse width should be greater than 1.5μs
 PUL-
 DIR+ Direction signal: high/low level signal, to ensure reliable commutation of motor, directional signal should be established before the pulse signal at least 2μs. The initial direction of the motor is connect to motor wiring, change winding (e.g., A +, A - exchange) can change the direction of the motor running, In DIR high level,the voltage is 4.5 ~ 28 VDC,in low level,voltage is 0 ~ 0.5 V.
 DIR-
 ENA+ Enable signal: this input signal is used to enable or prohibit. ENA+ connect 4.5 ~ 28Vdc, ENA- connect low level (or internal optical coupling), the actuator will cut off the electrical current to keep the motor in a free state and the stepper pulse is not responsive. When this function is not required, the enable signal can be suspended.
 ENA-


2) High voltage interface

Name Function
GND DC power grounding
+Vdc DC power positive, dc 24~75 VDC, recommended for 48Vdc.
A+,A- Motor A phase coil interface
B+,B- Motor B phase coil interface


3) 232 Communication interface
It is possible to connect a PC or STU debugger with a dedicated serial cable, and forbid charged plug. Through STU or the PC software ProTuner, the subdivision and current value, effective edge and single double pulse all can be set, and can also be used for the elimination and adjustment of the resonance point.

Terminals No. Signal Name Instruction
1 NC
2 +5V 5V positive of power supply Only by external STU
3 TxD RS232 sender
4 GND 5V power grounding 0V
5 RxD RS232 receiver
6 NC




Applications:


Use for robots stepper motor;
electronic automatic equipment stepping motor ;
medical instrument stepping motor;
advertisement instrument stepper motor;
lighting&audio equipment stepper motor ;
printer stepper motor;
textile machinery stepper motor;
cnc router stepper motor.
