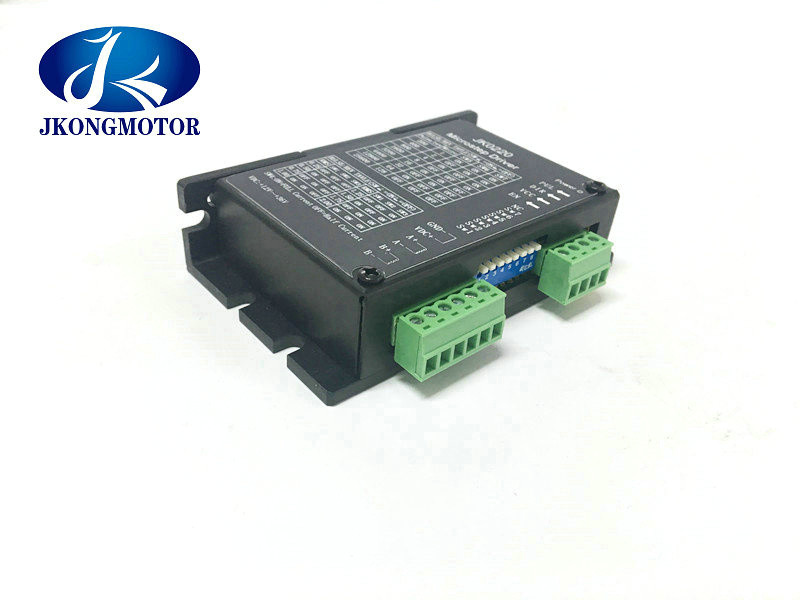

Nema 17 Stepper Motor Driver JK0220 Stepper Motor And Driver 12V~36VDC 0.25A-2.0A For Nema8 - Nema17 Stepper Motor

12V~36VDC 0.25A-2.0A Stepper Motor Driver JK0220 For Nema8 - Nema17 Stepper Motor

Characteristics of 2phase stepper motor driver:

1. DC power input type:12V~36VDC ,

2.Output current:0.25A-2.0A

Mircostepping:1(1.8º),1/2,1/4,1/8,1/16,1/32,1/64,1/128

Pulse/rev: 200,400,800,1600,3200,6400,12800,25600

3. Dimensions:96mm×60mm×24.5mm

4.Weight:<200g.

5. Working environment:Temperature-15～80℃

I/O Ports:

1.GND,:VDC+: it input DC power

Note:Must guard against exceeding 36V,

so as not to damage the module

2. A+,A-:Stepping motor one winding

3. B+,B-:Stepping motor other winding

4. PUL :Stepping pulse input

5. DIR:Stepping motor direction input

6. VCC:power supply port for inside optical coupling

7. EN: motor free

NOTE:

1. When ambient temperature is high or working current over 1.05A, fix the module on big metal shell , or use axle flows fan dispels the heat, to make the module run reliably for a long time.

2. Half current automatically: if control machine not send out signal in half second, driver enter half current state of automatically for electricity saving, the phase current of the winding of the electric

Switch Choice:

1, Microstepping choice:

2, Current choice:

3, installation dimension

Applications:
Use for robots stepper motor;
electronic automatic equipment stepping motor ;
medical instrument stepping motor;
advertisement instrument stepper motor;
lighting&audio equipment stepper motor ;
printer stepper motor;
textile machinery stepper motor;
cnc router stepper motor.
