| Shaft: | Single Or Double | Leads: | 4 / 6 |
|---|---|---|---|
| Current: | 0.67A | Holding Torque: | 600g.cm - 1200g.cm |
| Ratio 1: | 3.71 / 5.18 /13.76 / 19.2 / 26.8 | Ratio 2: | 51 / 71 / 99.5 |
| High Light: | Cnc Stepping Motor 11NM,Cnc Hybrid Stepper Motor 5.5A,5.5A 2Phase Hybrid Stepper Motor |
||

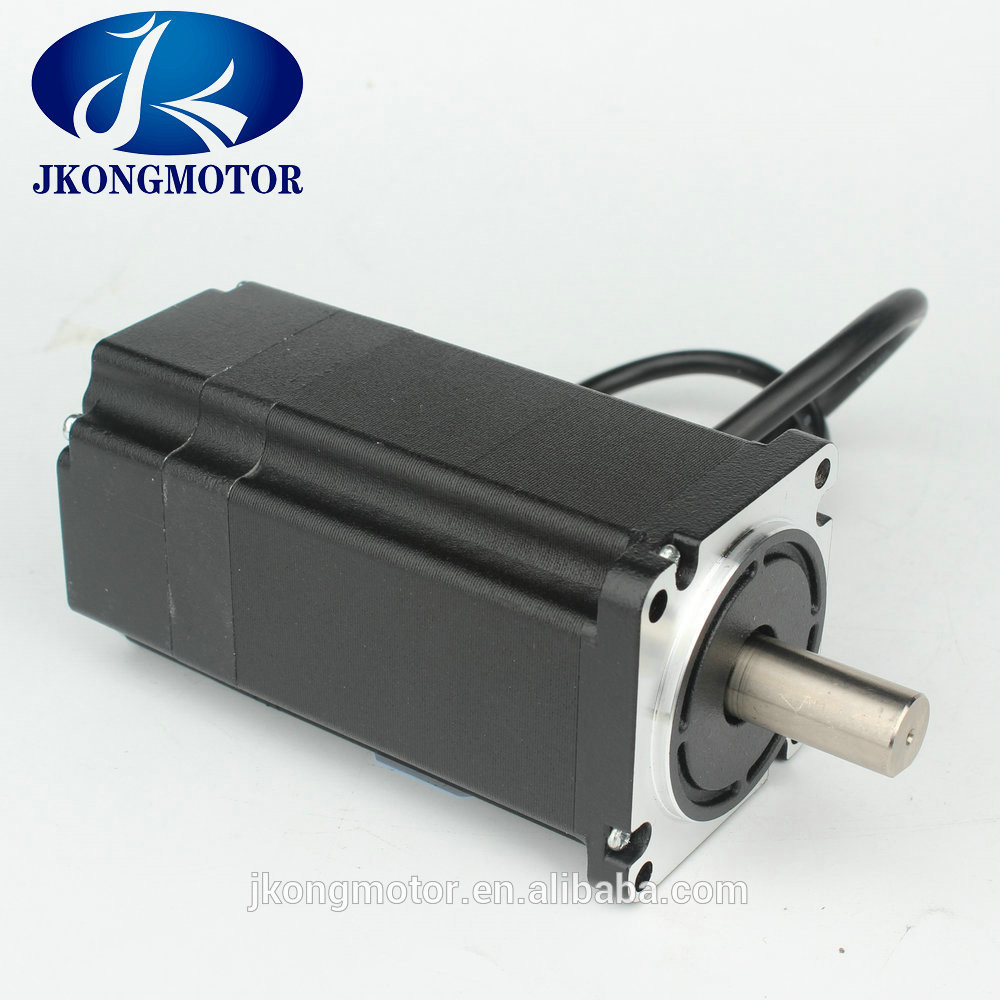

Cnc Stepping Motor 11 N.M 5.5A 2 Phase Hybrid Stepper Motor For CNC Sewing Machine
1. Genaral Specification of small stepper motor:
| Housing Material | Metal |
| Bearing at Output | Ball Bearings |
| Max.Radial Load(12mm from flange) | ≤35N |
| Max.Shaft Axial Load | ≤25N |
|
Radial Play of Shaft (near to Flange) |
≤0.07mm |
| Axial Play of Shaft | ≤0.3mm |
| Backlash at No-load | 1.5° |
2. Electrical Specification of mini stepper motor:
28HS Hybrid Stepping Motor Specifications:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Rotor Inertia |
Motor Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg | |
| JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
28HS Planetary Gearbox Specifications:
| Reduction ratio | 3.71 | 5.18 | 13.76 | 19.2 | 26.8 | 51 | 71 | 99.5 |
| Number of gear trains | 1 | 2 | 3 | |||||
| Length(L2) mm | 30 | 37 | 45 | |||||
| Max.rated torque kg.cm | 5 | 7 | 9 | |||||
| Short time permissible torque kg.cm | 15 | 21 | 27 | |||||
| Weight g | 200 | 250 | 300 | |||||
3. Dimensions: (Unit=mm)
4. Applications:
Use for
Digital controlled machinery
