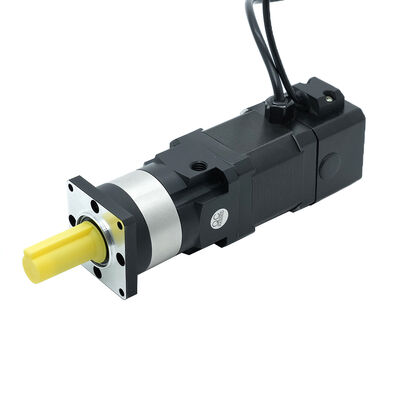

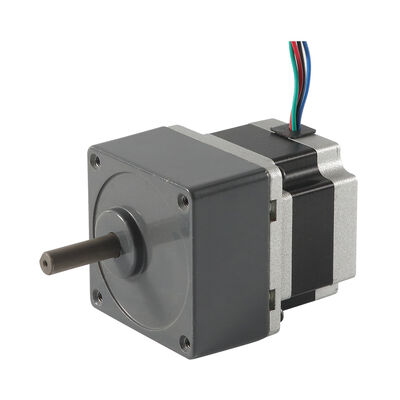

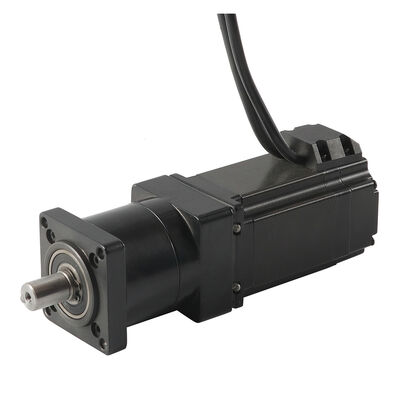

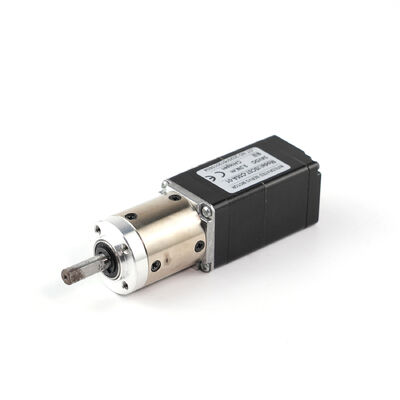

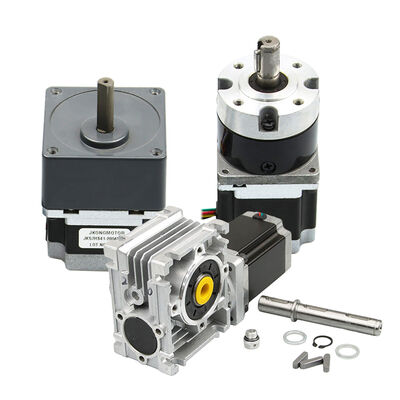

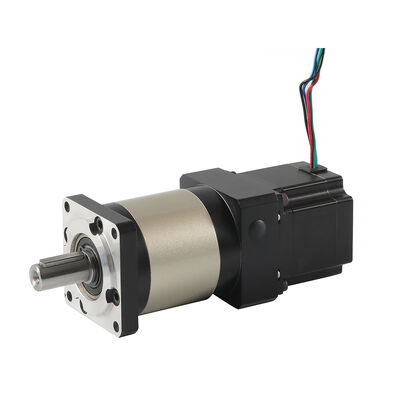

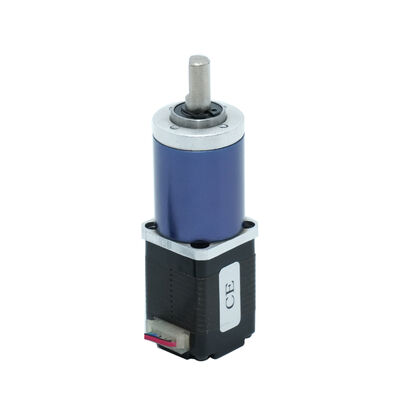

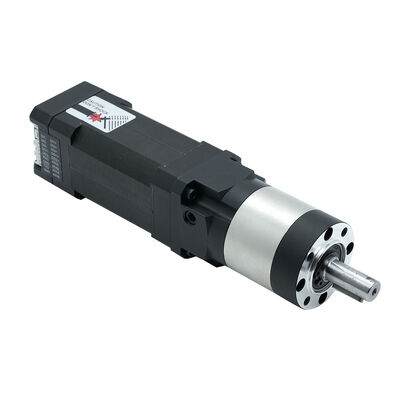

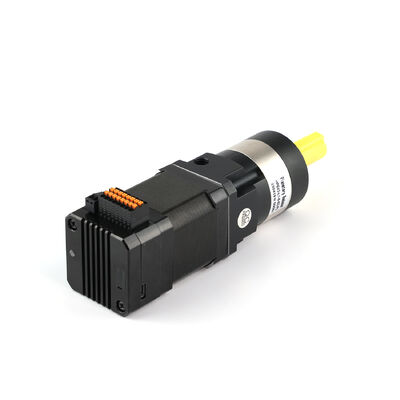

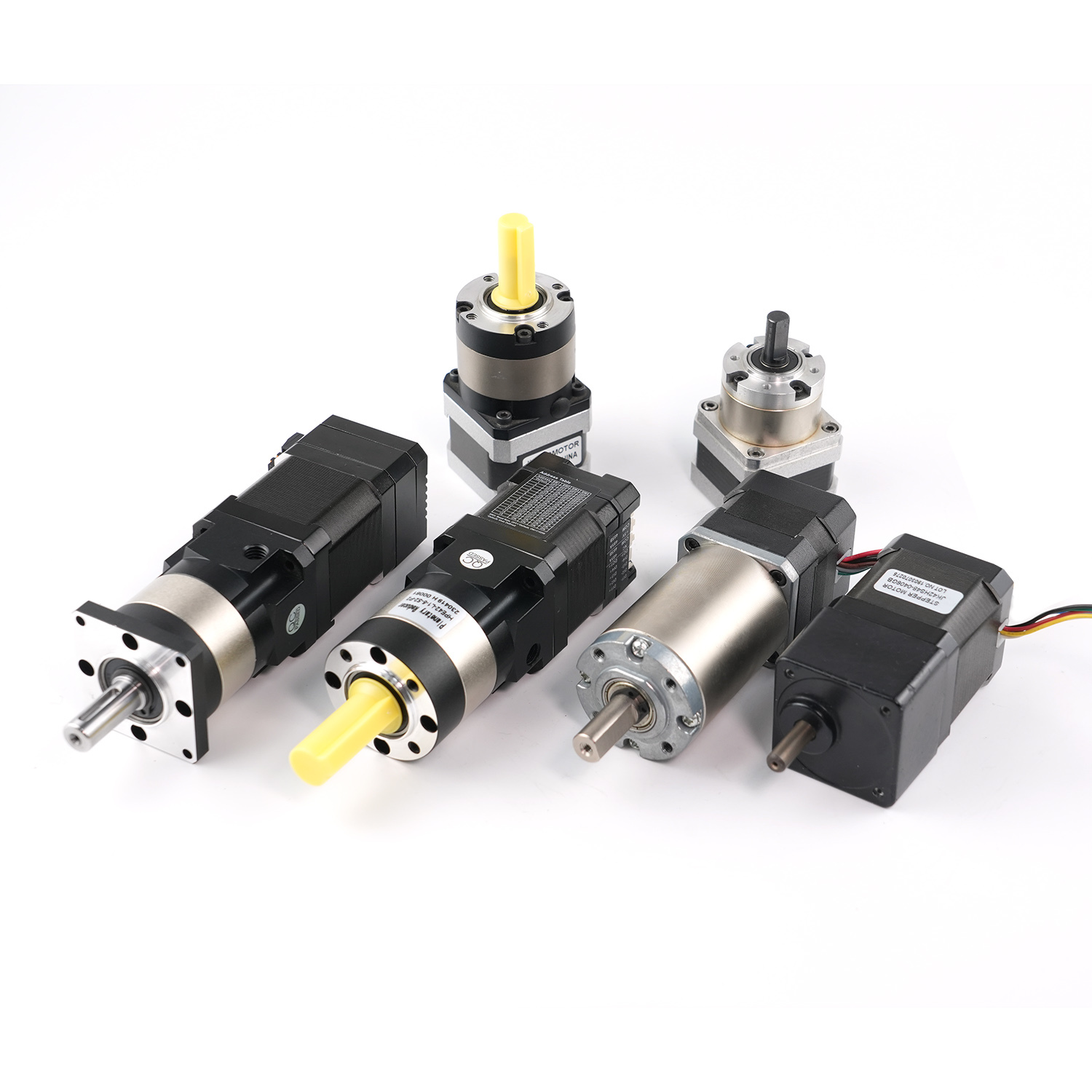

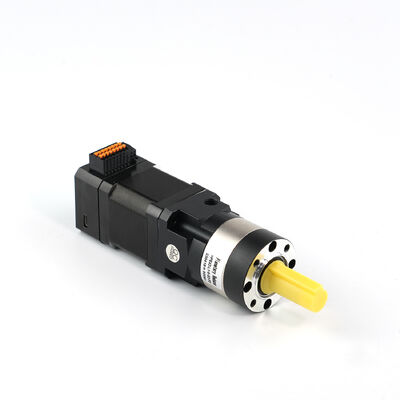

Jkongmotor OEM ODM Hybrid Bipolar Unipolar Geared Stepper Stepping Motor with Gearbox Encoder Brake Integrated Driver

Jkongmotor OEM ODM Hybrid Bipolar Unipolar Geared Stepper Stepping Motor with Gearbox Encoder Brake Integrated Driver

Jkongmotor provides professional OEM and ODM hybrid stepper motor solutions featuring bipolar and unipolar winding options combined with gearboxes, encoders, brakes, and integrated drivers. These geared stepper motors are engineered to deliver high torque, precise positioning, compact integration, and long-term industrial reliability.

Product Overview

Jkongmotor hybrid geared stepper motors integrate a high-precision stepper motor with a matched planetary, spur, or worm gearbox, and can be further equipped with encoder feedback, electromagnetic brake systems, and built-in drivers. This all-in-one design reduces system complexity, shortens installation time, and improves motion control stability.

Key Features

• Hybrid Stepper Motor Technology for high torque and accurate stepping

• Bipolar & Unipolar Configurations to match different control systems

• Integrated Gearbox for torque multiplication and speed optimization

• Optional Encoder for closed-loop control and position monitoring

• Optional Brake for load holding and safety-critical applications

• Integrated Driver Option to minimize wiring and cabinet space

• Compact, Modular Structure for easy installation and maintenance

• Low Noise, Low Vibration, High Efficiency

OEM & ODM Customization Options

• Gearbox type, ratio, backlash, and lubrication

• Motor frame size (NEMA 8 / 11 / 14 / 17 / 23 / 24 / 34 and custom)

• Output torque, speed range, and step angle

• Encoder type (incremental, magnetic, optical, or absolute)

• Brake voltage, holding torque, and fail-safe design

• Integrated driver parameters, communication interface, and protection level

• Shaft design, mounting flange, cable, and connector customization

• Special requirements: IP rating, corrosion resistance, high-temperature winding

Performance Advantages

• High Output Torque at Low Speed ideal for precision transmission

• Enhanced Positioning Accuracy with gearbox and encoder feedback

• System Integration Simplified through motor-gearbox-driver combinations

• Reliable Continuous Operation for industrial environments

• Flexible Design adaptable to both standard and specialized machinery

Typical Applications

• Robotics and collaborative robots

• Industrial automation and CNC equipment

• Packaging, labeling, and printing machinery

• Medical and laboratory devices

• AGVs, conveyors, and smart logistics systems

• Textile, food processing, and inspection equipment

Jkongmotor OEM & ODM Manufacturing Capability

Jkongmotor offers complete OEM and ODM customized geared stepper motor services, covering design evaluation, prototype development, performance testing, and mass production. Our engineering team works closely with customers to deliver application-specific solutions that improve efficiency, reliability, and overall system performance.

Choose Jkongmotor for professional, customizable hybrid geared stepper motors with gearbox, encoder, brake, and integrated driver—built to power your automation projects with precision and confidence.

Nema 8 Stepper Motors:

Nema 11 Stepper Motors:

Nema 14 Stepper Motors:

Nema 17 Stepper Motors:

Nema 23 Stepper Motors:

Nema 24 Stepper Motors:

Nema 34 Stepper Motors:

Nema 42 Stepper Motors:

Nema 52 Stepper Motors:

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.


Advantages

• Low cost for control achieved
• High torque at startup and low speeds
• Ruggedness
• Simplicity of construction
• Can operate in an open loop control system
• Low maintenance
• Less likely to stall or slip
• Will work in any environment
• Can be used in robotics in a wide scale.
• High reliability
• The rotation angle of the motor is proportional to the input pulse.
• The motor has full torque at standstill (if the windings are energized)
• Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3–5% of a step and this error is non-cumulative from one step to the next.
• Excellent response to starting/stopping/reversing.
• Very reliable since there are no contact brushes in the motor. Therefore, the life of the motor is simply dependent on the life of the bearing.
• The motors response to digital input pulses provides open-loop control, making the motor simpler and less costly to control.
• It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.
• A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input pulses.

6.FAQ
Q1: What about your warranty?
A: We guarantee is one year . for sea order . is 15months.

Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and Rohs.

Q3: Do you offer OEM AND ODM service?
A: Yes. We can supply OEM andmake customized design for any specific application.

Q4: How can be your brand distributor?
A: We will check your capacity and help you promote and expand the market.

Q5: What's the delivery time ?
A: Except special order. For samples usually 7-15 working days . for batch order . usually 20-25days.

7.Stepper Motor Applications

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
