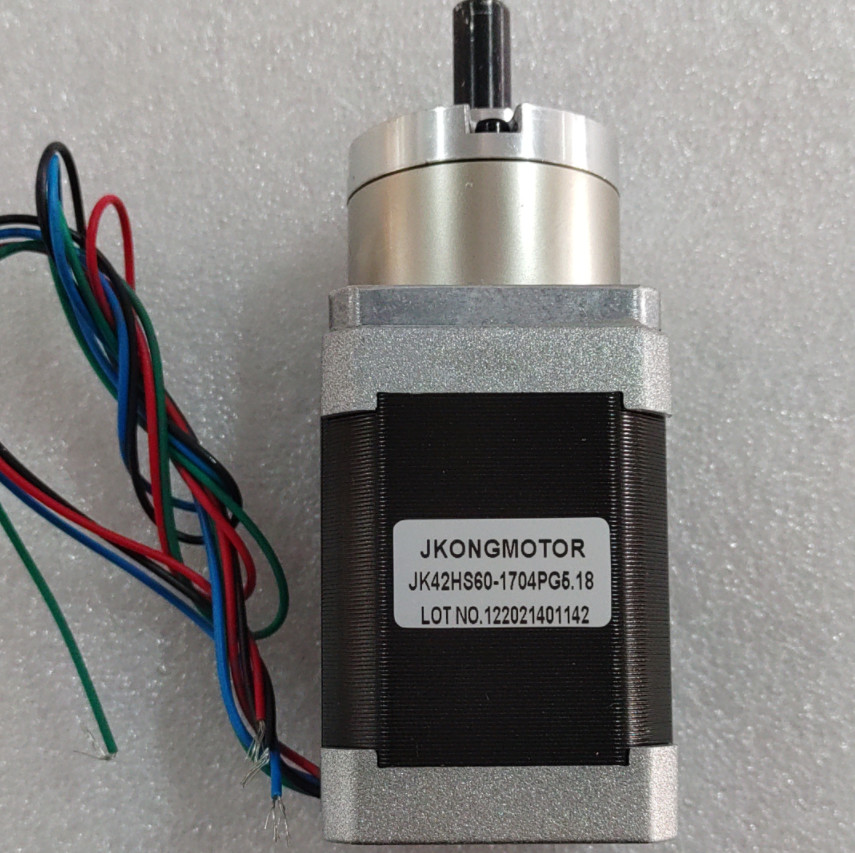

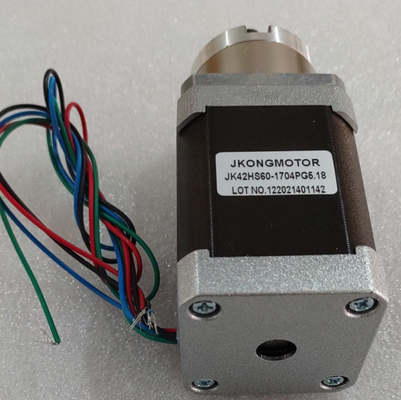

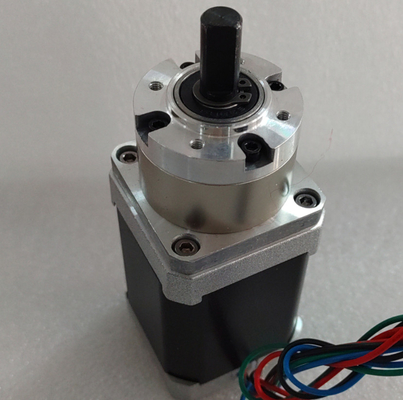

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1
video
17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: 17HS6401S-PG5.18-1
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $23 - 35 / Pieces

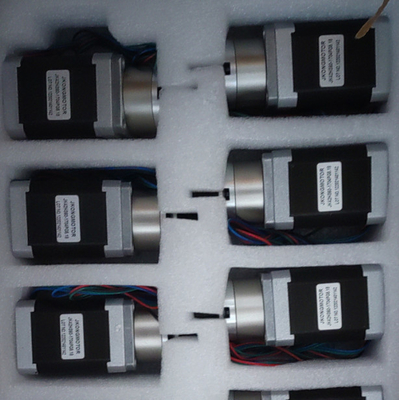

Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs / month
Contact Now
Detailed Product Description
Phase: 2 Step Angle(degrees): 1.8 Degree
Holding Torque: 700N.cm Current / Phase: 1.7A
Weight: 0.28kg Motor Length: 60mm
Color: Black&Sliver Leads(No.): 4
MOQ: 10pcs
Highlight:

Nema 17 Stepper Motor for 3D Printer

,

2 Phase Nema 23 Cnc Stepper Motor

,

700N.cm Nema 17 Stepper Motor



Nema17 Stepper Motor 1.8 degree 70N.cm 60mm 17HS6401S-PG5.18-1 Gear Motor Stepper with Gearbox All Ratio Has Stock for 3D Printer





Genaral Specification of cnc stepper motor:



Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

Shaft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

28N (20mm from the flange)

Max. axial force

10N





Electrical Specifications of 42BYGH stepper motor:



Model No.
Step Angle
(°)
Motor Length(mm)
Current
/Phase(A)
Resistance
/Phase
(Ω)
Inductance
/Phase(mH)
Holding Torque
(N.m)
# of Leads
(NO.)
重量
Weight
(KG)
JK42HS34-1334
1.8
34
1.33
2.1
2.5
2.2
4
0.22
JK42HS34-0406
1.8
34
0.4
24
15
1.6
6
0.22
JK42HS40-1684
1.8
40
1.68
1.65
3.2
3.6
4
0.28
JK42HS40-1206
1.8
40
1.2
3
2.7
2.9
6
0.28
JK42HS48-1684
1.8
48
1.68
1.65
2.8
4.4
4
0.35
JK42HS48-1206
1.8
48
1.2
3.3
2.8
3.17
6
0.35
JK42HS60-1704
1.8
60
1.7
3
6.2
7.3
4
0.5
JK42HS60-1206
1.8
60
1.2
6
7
5.6
6
    0.5





Note:products of special request can be made according to the customer request.



42HS Planetary Gearbox Specifications:



Reduction ratio
3.71
5.18
13.76
19.2
26.8
51
71
99.5
139
Number of gear trains
1
2
3
Length(L2) mm
27.3
35
42.7
Max.rated torque kg.cm
20
30
40
Short time permissible torque kg.cm
40
60
80
Weight g
350
450
550



Dimension:(Unit=mm)

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1 0

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1 1

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1 2



17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1 3

17HS6401S-PG Nema 17 Extruder Gear Stepper Motor 42 Motor Ratio Planetary Gearbox Stepper Motor - Ratio 5.18-1 4

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.

JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
