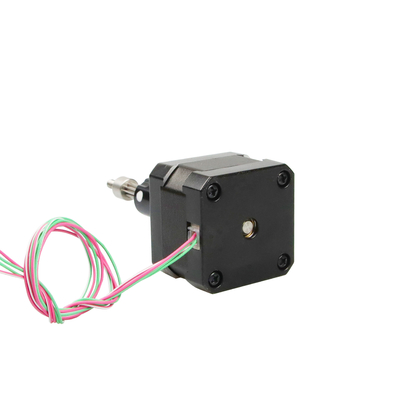

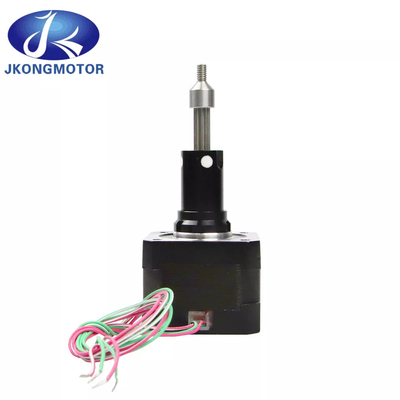

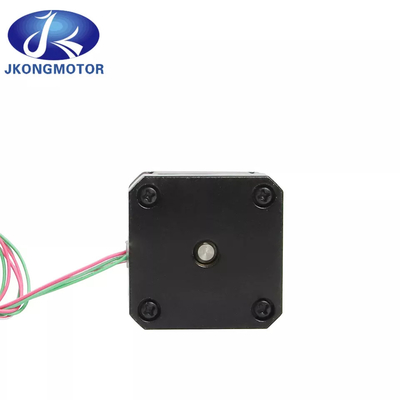

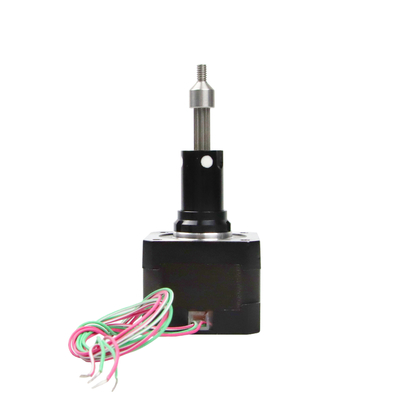

Name: JKM NEMA17 2phase 42mm Lead Screw Stepper Motor Double Stack Captive Hybrid Linear Actuators
Brand: CHANGZHOU JKONGMOTOR CO.,LTD
SKU: 43H4A-05-200
Price: 70.00 USD
Availability: InStock

Home Products Hybrid Stepper Motor

JKM NEMA17 2phase 42mm Lead Screw Stepper Motor Double Stack Captive Hybrid Linear Actuators

Product Details:

Place of Origin:	China
Brand Name:	Jkongmotor
Certification:	Ce, rohs, Iso
Model Number:	43H4A-05-200

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	65-75
Packaging Details:	carton
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000PCS/month

Contact Now

Detailed Product Description

Warranty:	3months-1year	Place Of OPlace Of Originrigin:	China
Model No.:	43H4A-05-200	Type:	Hybrid Stepper Motor
Current/Phase:	0.7A	Prduct Type:	Nema 17 Captive Linear Actuators
Rated Voltage:	5.0V	Lead Screw Diameter:	Φ6.35mm
Lead Screw Lead:	1.5875mm	Linear Travel Per Step:	0.0079mm/step
Resistance:	7.2Ω	MOQ:	10pcs
Highlight:	JK42H2A5007K4-22 Captive Linear Actuators , 2phase Nema 17 Captive Linear Actuators , 1.8Degree Nema 17 Captive Linear Actuators

HAYDON BALL SCREW HYBRID LINEAR STEPPER MOTORS FOR

ROUGH DIAMOND PLANNER MACHINE- MAGNUS SARIN MACHINE

Product Description

item	value
Warranty	3months-1year
Place of Origin	China
Brand Name	Jkongmotor
Model Number	JK42H2A5007K4-22
Phase	2
Type	Hybrid
Current / Phase	0.7A
Product Type	Nema 17 Captive Linear Actuators
Model Name	JK42H2A5007K4-22
Phase No	2 Phase
Rated Voltage	5.0V
Step Angle	1.8Degree
Lead Screw Diameter	Φ6.35mm
Lead Screw Lead	1.5875mm
Linear Travel Per Step	0.0079mm/step
Resistance	7.2Ω
Minimal Thurst /300pps	10KG

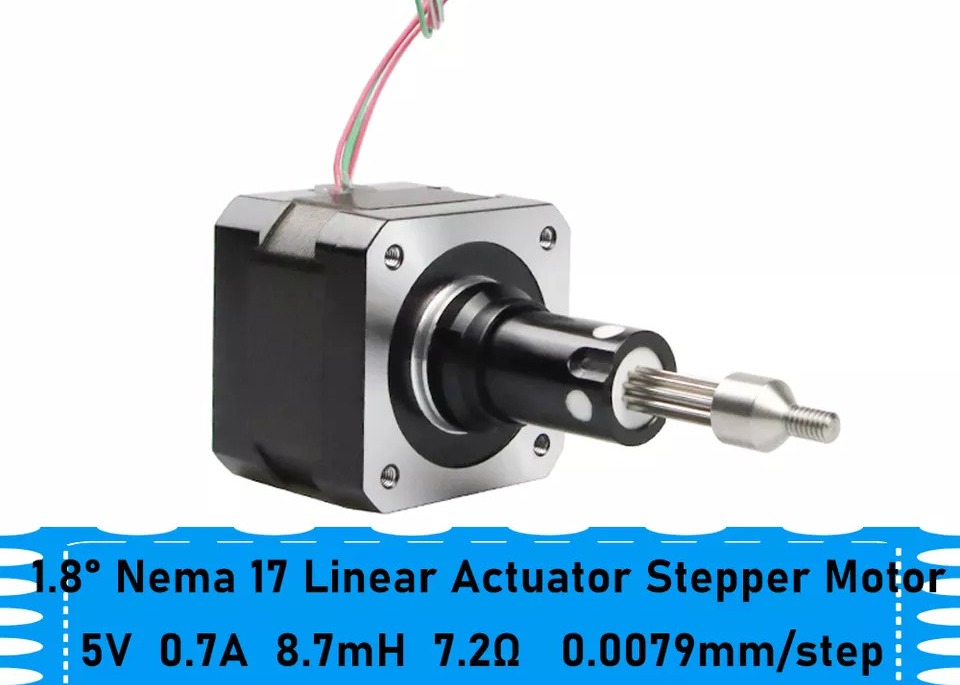

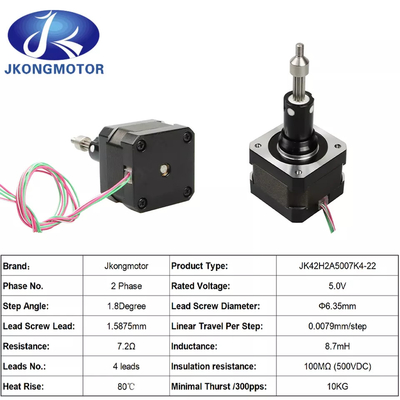

Product Parameters:

Brand:Jkongmotor

Product Type: Nema 17 Captive Linear Actuators

Model Name: JK42H2A5007K4-22

Phase No.: 2 Phase

Step Angle: 1.8Degree

Rated Voltage: 5.0V

Current: 0.7A

Resistance: 7.2Ω

Inductance: 8.7mH

Lead Screw Diameter: Φ6.35mm

Lead Screw Lead: 1.5875mm

Linear Travel Per Step: 0.0079mm/step

Leads No.: 4 leads

Insulation resistance: 100MΩ (500VDC)

Heat Rise: 80℃

Minimal Thurst /300pps: 10KG

Noted: This motor can replace Haydon motors

Product Features:

It has a threaded drive screwheld mostly inside the motor body which connected to a spline.

It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.

The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.
