Name: Dc Stepper Motor Kits 4pcs Dm542 Driver+ 4 Pcs Nema23 112mm 3m Motor+1 Set Mach3 + 24v 36v Power Supply For Cnc
Brand: Jkongmotor
SKU: JK57HS112-3004
Price: 155 USD
Availability: InStock
Rating: 4.5 (118 reviews)

Home Products Stepper Motor

Dc Stepper Motor Kits 4pcs Dm542 Driver+ 4 Pcs Nema23 112mm 3m Motor+1 Set Mach3 + 24v 36v Power Supply For Cnc

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	JK57HS112-3004

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$155~US$165
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Model:	Nema 23 Stepper Motor Kits	Leads:	4-8
Current:	1-4.2A	Holding Torque:	0.48-3.1N.m
Step Angle:	1.8 Degree	Motor Length:	41mm-112mm
High Light:	1.8 degree Nema 23 Stepper Motor Kits , Nema23 Cnc Stepper Motor Kits , JK57HS112-3004

Specification

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	75N (20mm from the flange)
Max. axial force	15N

Model No.	Step Angle	Motor Length	Current/Phase	Resistance/Phase	Inductance/Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia
Model No.	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm²
JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150
JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230
JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280
JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280
JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300
JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440
JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440
JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600
JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600
JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700
JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800
JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800

Above only for representative products, products of special request can be made according to the customer request.

Suitable Power Supply Parameters:

Power Supply Model	Input voltage	Ouput voltage	Power	Weight	Size
S-120-24	AC100-240V	DC24V	120W	0.3kg	1299940mm
S-120-24	AC110V/220V	DC24V	120W	0.45kg	1999942mm
S-240-24	AC100-240V	DC24V	240W	0.48kg	1599942mm
S-240-24	AC110V/220V	DC24V	240W	0.6kg	20011050mm
S-480-24	AC110V/220V	DC24V	480W	0.75kg	21511550mm
S-200-36	AC110V/220V	DC36V	200W	0.48kg	1999942mm
S-360-36	AC110V/220V	DC36V	360W	0.7kg	21511550mm
S-720-36	AC110V/220V	DC36V	720W	1.35kg	24524565mm

Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

You may receive:

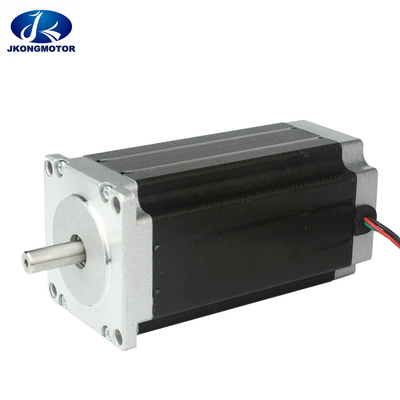

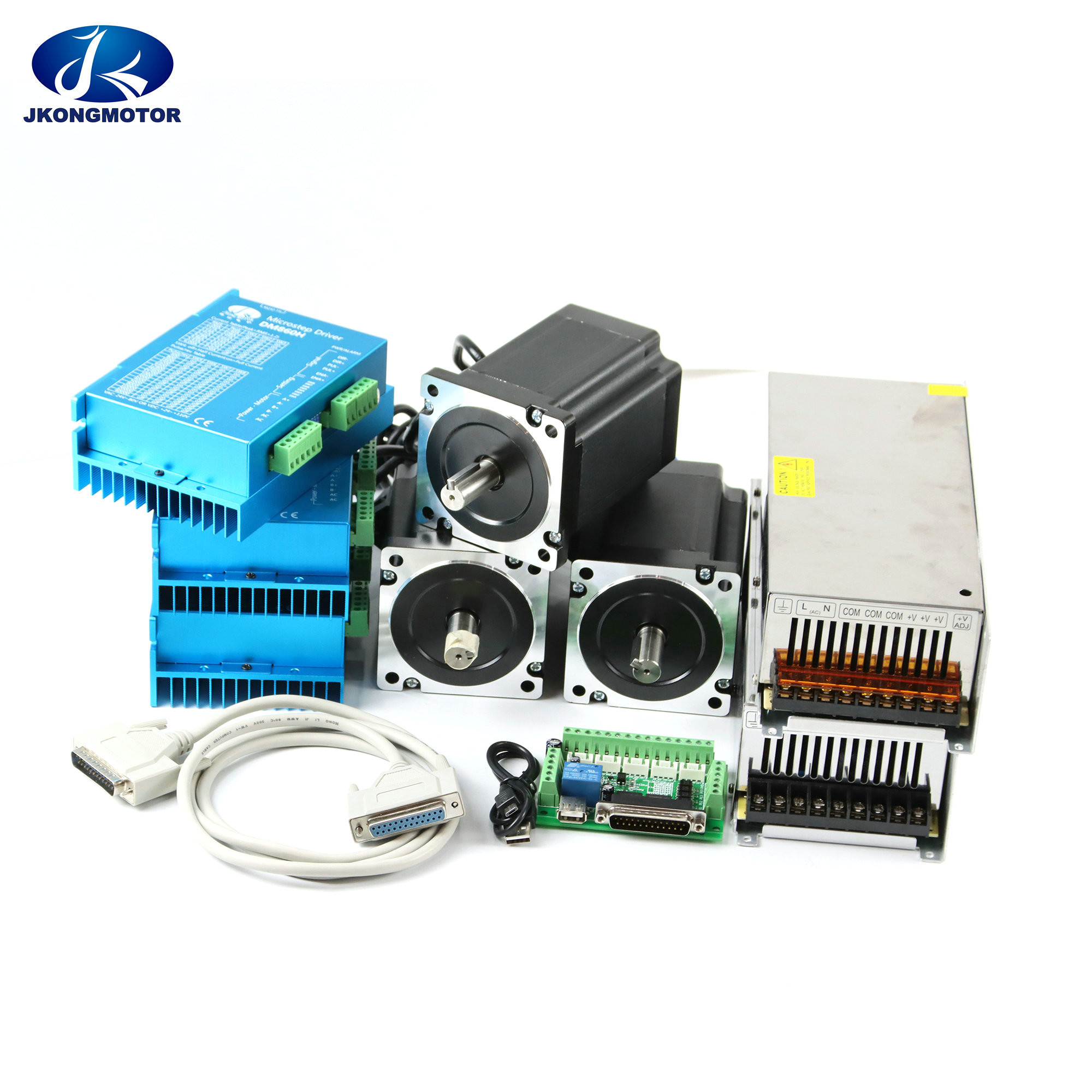

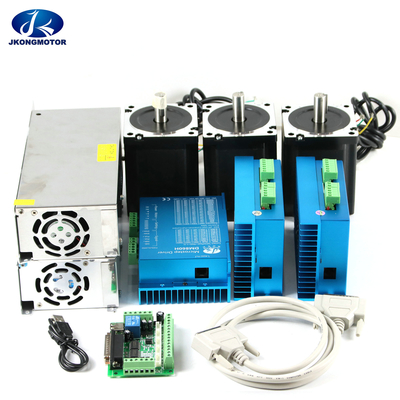

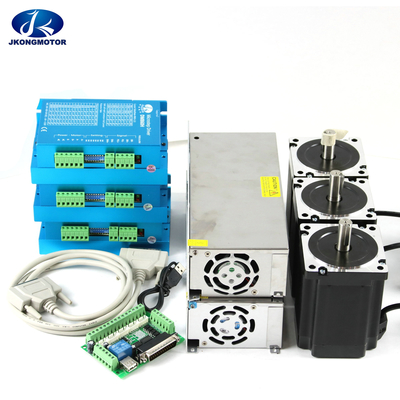

1. 3 or 4 Pcs JK57HS112 (Nema 23 Hybrid Stepper Motor) + 1 / 2 / 3 / 4 Pcs Power Supply + 4 PCS JKDM542 Driver + other partsNoted: If you need other motor combinations, please send inquiry to us or contact us directly.

No.	Output Voltage	Motor Quantity	Supply Quantity	Driver	Other
1	24V	4pcs stepper motor	1 / 2 / 3 / 4 PCS	4pcs —— JKDM542	board + cable + usb
2	36V	4pcs stepper motor	1 / 2 / 3 / 4 PCS	4pcs —— JKDM542	board + cable + usb

Motor Features:

Low heat (static, the current is almost zero, no heat).

Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low frequency resonance has a very good resistance).

Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine / placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.

Large torque output in some cases can simplify the complexity of the machine.

Application:

JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

Motor Driver Parameters:

Features
Input voltage	18~60V DC
Output current	1.0A~4.2A(Peak)
Input Current	<4A
Humidity	Not condensation, no water droplets
Consumption	80W
Using environment	-10 ~ 45 ℃, avoid dust and corrosive gas
Storage environment	-40~+70℃

Motor Driver Features:

1, Average current control, 2-phase sinusoidal output current drive

2, 8 channels output phase current setting

3, Offline command input terminal

4, High start speed

5, High hording torque under high speed

6, High performance, low price

7, Opto-isolated signal I/O

8, Overvoltage, under voltage, overcorrect, phase short circuit protection

9, 15 channels subdivision and automatic idle-current reduction

10 , Motor torque is related with speed, but not related with step/revolution

The connection between the driver and the two-phase hybrid stepping motor is four-wire. The motor windings are connected in parallel and in series, and the connection method is good. The high-speed performance is good, but the driver current is large (1.73 times the motor winding current). The drive current is equal to the motor winding current.

The characteristic of the output torque:

1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;2) The higher the supply voltage of the driver, the higher the high-speed torque of the motor;
3) It can be seen from the moment frequency characteristic diagram of the stepping motor that the high speed is smaller than the medium and low speed torque.
