Name: Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm
Brand: Jkongmotor
SKU: 700W air cooling spindle motor
Price: 83 USD
Availability: InStock
Rating: 5 (165 reviews)

Home Products Spindle Motor

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	700W air cooling spindle motor

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$ 83~US$109.5 (spindle motor)
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	3000 pcs/month

Contact Now

Detailed Product Description

Brand：:	JKONGMOTOR	Product Name::	Spindle Motor
Model::	700w Air Cooled	Holding Torque::	0.55N.m
Motor Length::	117mm	Voltage::	110V/220V
Speed::	0-11000rpm	Collet::	ER11
MOQ::	1 Set/ 3pcs	Current:	7.3A/3.7A
High Light:	220v Dc Brushless Spindle Motor , Air Cooling Spindle Motor 700w , 11000rpm Dc Brushless Motor

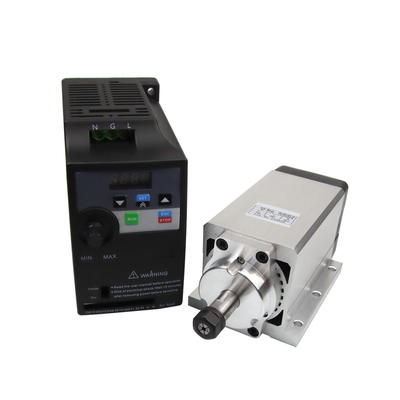

220v/ 110v 700w 0.55N.m 0-11000rpm air cooling dc brushless motor spindle motor

Spindle motor features:
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.

Brand:		JKONGMOTOR
Product Name:	spindle motor	Model:	0.7kw air cooled
Holding Torque:	0.55N.m	Motor Length:	117mm
Voltage:	110V / 220V	Current:	7.3A / 3.7A
Collet:	ER11	Speed:	0-11000rpm
Phase:	3phase	Colling:	Air cooling
Product Name:	BLDC driver	Max power:	600w
Model:	NBD600M1	Max speed:	12000r/min
Supply voltage:	110VAC / 220VAC	Install dimension:	120x55mm

Provide:
1.water cooling:800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw

Accessories:
We also have spindle motor matching inverter(VFD), collet , gripper etc.
If you need other kinds of parts, please don't hesitate to contact us.

Electrical Specification:

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 0

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 1

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 2

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 3

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 4

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 5

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 6

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 7

Air Cooling Dc Brushless Spindle Motor 220v 110v 700w 0.55N.M 0-11000rpm 8

Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.

JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.

Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
